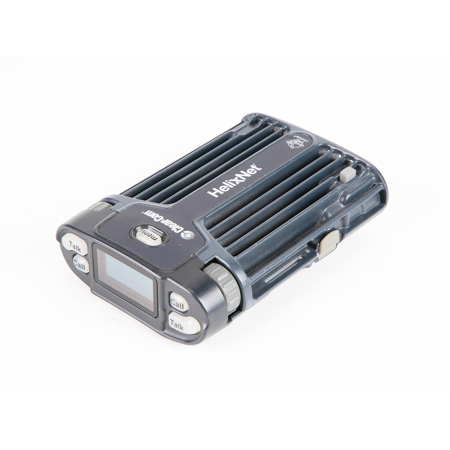

Used Clear-Com HBP-2X HelixNet 2-Channel Beltpack for Full-Duplex Digital Partyline Solutions

The HBP-2X is a rugged and ergonomically designed 2-channel digital partyline beltpack. A beltpack can have access to two of any four system channels over a single shielded twisted-pair cable.

• Two-channel beltpack
• Power and Audio over a Single Cable
• Program Audio with Separate Program Level Control
• User-Facing Keyset Controls
• Recessed Level Rotary Knob Controls
• Push-button Menu Access
• Integrated Mounting-strap Strap Guide
• Tabletop Resting Supports
• USB Micro-AB Port
• XLR Lock Release
• Cast Aluminum Alloy Case
• High-resolution, Large Format OLED Display (Up to 10 Characters for Unique Labels)
• Visual and Vibrating Call Alerts
• Ridge Guide for Tactile Navigation and Mechanical Protection
• XLR-4M Headset Jack (5-Pin Option)
• 2.5 mm TRS Headset Jack
• XLR-3F Intercom Line
• XLR-3M Intercom Pass-through (Daisy-chain)

New in Version 3.0 (Available Now)

Optional Channel Expansion License
Increase channel density by an additional 12 channels for a total of 24 channels on a single main station.

Core Configuration Manager (CCM)
Robust browser-based configuration tool.

User Roles
Save favorite audio settings and key assignments for any device.

Stacked Keys
Assign multiple channels to a single beltpack key.

USB Flasher
Beltpacks can be configured as a call light by making a connected USB light glow steady or blink.

HBP-2X Beltpack Highlights

Channel Density
Similar to a source assignment panel, a single cable gives every connected beltpack the capacity to access all four system channels.

Selectable Channels
The full-duplex, 2-channel beltpack can select up to two of the available four system channels and access program audio, each with individual level control.

Save Resources
Networked audio is distributed over a single, shielded twisted pair, reducing the number of cables to yield time and cost savings.

Passively Interconnection
Beltpacks can be set up in daisy-chain or star configurations with no need for active split boxes.

Clear-Com Sound
Legendary contoured audio frequency response provides maximum intelligibility and exceptional sound quality.

Efficient Administration
System configuration and firmware upgrades are centrally managed from the main station.

Intuitive Operations
Present logical channel labels on the high-contrast, 10-character OLED display.

Effortless Navigation
Optimally positioned buttons and volume knobs are easy to locate, identify and control on the beltpack.

Highly Durable
Fabricated from lightweight cast aluminum, the beltpack is able to endure the rigors of intensive applications.

Mounting Flexibility
Sturdy beltclip, rubber bumpons and integrated strap guide offer useful mounting options.
