See Options
2 Year
$189.99
3 Year
$219.99
4 Year
$279.99
Need help? Ask our experts.
Review Summary
2020-12-04T07:26:52
The camera lives up to the description and more. Setup was not overly complicated and the picture quality is amazing. This will be used in a worship setting and the zoom and picture quality goes far beyond what we thought. Will be purchasing others of these in the future.
BRANDON B.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
1-Chip 1" MOS Sensor
1600 TV Lines
0 to 42 dB (Expanded)
60 dB
f/9 at 2000 lux
2000 to 15,000K
1/24 to 1/10,000 sec
32x ( in 1080p)
Yes
20x
8.8 to 176mm
24.5 to 490mm
Horizontal: 75.1 to 4 Degree
Vertical: 46.7 to 2.3 Degree
Vertical: 82.8 to 4.6 Degree
f/2.8 to 4.5
Wide: 3.9" (9.9cm)
Telephoto: 39.6" (100.6cm)
Optical
Autofocus
Manual Focus
NTSC, PAL
SDI, HDMI, RJ45, Optical Fiber: 3840 x 2160p at 24, 25, 29.97, 50, 59.94 fps
1920 x 1080p at 25, 29.97, 50, 59.94 fps
1920 x 1080PsF at 23.98, 25, 29.97 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
HDMI
SDI
H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 76.8 Mb/s)
Pan: 0.08 to 180 Degree/s
Tilt: 0.08 to 180 Degree/s
Pan: 350 Degree (-175 to 175 Degree)
Tilt: 120 Degree (-30 to 210 Degree)
Yes
RS-232
RS-422
1x HDMI Type A (HDMI 2.0) Male
1x BNC Male (Loop Output)
1x BNC (3G-SDI) Male
1x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1x RJ45 (IP Control, RS-422)
1x BNC (Genlock) Input
1x SFP+ Slot
PoE++ 802.3bt
1x Proprietary (10.8 to 13.2 VDC)
Power Supply: 10.8 to 13.2 VDC at 4 A
PoE: 42 to 57 VDC at 1.2 A
32 to 104 Degree F (0 to 40 Degree C)
-4 to 122 Degree F (-20 to 50 Degree C)
20 to 90%
NC35
10.51 x 8.62 x 8.39" (267 x 219 x 213mm) (Excluding Bracket & Protrusions)
9.26 lbs (4.2kg)
Great quality and image. Highly recomend
By BRANDON B.
The camera lives up to the description and more. Setup was not overly complicated and the picture quality is amazing. This will be used in a worship setting and the zoom and picture quality goes far beyond what we thought. Will be purchasing others of these in the future.

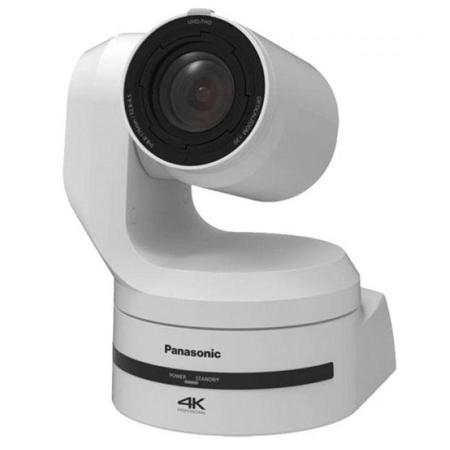

Discover the pinnacle of professional video production with the AW-UE150 4K UltraHD Professional 20x PTZ Camera, a sophisticated piece of technology designed to elevate your visual storytelling. This advanced camera is ideal for capturing high-resolution footage in a variety of settings, including stadiums, lecture halls, churches, and other venues where flexibility and quality are paramount.
Experience the power of 4K 60p/50p output, which ensures smooth, lifelike video quality, even in fast-paced environments such as live sports. The AW-UE150's 1.0-type MOS sensor is a game-changer, providing high sensitivity and low noise while capturing images with a wide dynamic range, approximately four times larger than that of the 1/2.3-type sensor.
The camera's optical 20x zoom is complemented by an innovative "i zoom" feature, which maintains high resolution while enabling ultra-high resolution zoom - up to 32x in HD mode and 24x in 4K mode. This allows for crystal-clear capture of distant subjects. Additionally, the industry-leading 75.1-degree horizontal wide-angle shooting capability ensures comprehensive coverage of the area, perfect for spaces where installation room is limited.
HDR (High Dynamic Range) support with conformity to BT.2020 enhances the visual experience by preserving details in both the brightest and darkest areas of the image, closely matching the quality perceived by the human eye. The Optical Image Stabilizer (OIS) is a sophisticated addition that automatically corrects for vibrations, ensuring stable footage even in challenging conditions.
For productions that extend into the night, the AW-UE150 is equipped with a Night Mode for infrared shooting, enabling image capture in low-light scenarios, such as wildlife observation, with the output in black and white.
The camera's pan and tilt performance is nothing short of incredible, with speeds ranging from a delicate 0.08 degrees per second to a swift 180 degrees per second in high-speed mode. This rapid movement, combined with a low noise level of NC35 or less in normal mode, makes it suitable for quiet environments.
The cropping function is a testament to the camera's versatility, allowing 4K images to be output in full while simultaneously cropping selected parts for output, streamlining operations with the Remote Camera Controller AW-RP150GJ or via a web interface.
Visibility is enhanced with a large, easily visible Tally Lamp, and the camera boasts multiple interfaces, including 12G-SDI, 3G-SDI, HDMI, IP, and even Optical Fiber output. The 4K/HD simultaneous output ensures compatibility with a variety of production systems, and the camera can internally down-convert 4K video to HD.
The Adaptive Matrix function is an innovative feature that prevents color overload from intense blue LED lighting, ensuring accurate color reproduction during live events. The improved WEB UI allows for seamless camera control and settings adjustments from a range of devices, including PCs, Macs, and mobile devices.
For large-scale production systems, the AW-UE150 can be controlled by up to 200 units via IP connection from the Remote Camera Controller AW-RP150GJ, and a single camera can be managed by up to 5 controllers. Direct broadcasting capabilities through RTMP enable live streaming to platforms like YouTube Live and Facebook Live directly from the camera.
Enhance your video streaming quality with the option to upgrade to NDI / HX compatibility, which allows for real-time, high-quality video encoding and direct switcher input without the need for an IP decoder. The JPEG Image Saving Function and FreeD Support for AR/VR system integration further extend the camera's capabilities, making it a truly versatile tool for professional video production.
Embrace the future of visual content creation with the AW-UE150 4K UltraHD Professional 20x PTZ Camera, where sophisticated design meets innovative technology for unparalleled results.
