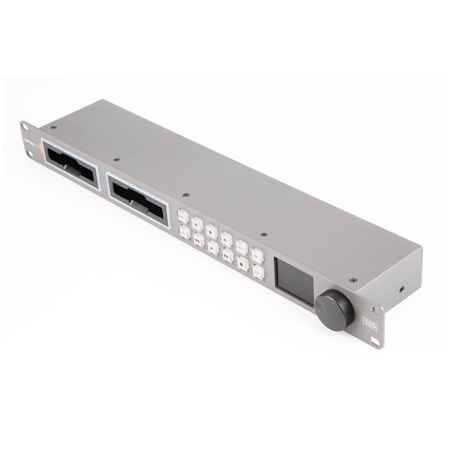

Used Blackmagic Design HyperDeck Studio 12G Professional Broadcast Deck

SKU: US1850856 MFR: HYPERD/ST/12G
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design HyperDeck Studio 12G

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$81.99

3 Year

$126.99

4 Year

$172.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-06T14:55:58

Rated 5 out of 5

Awesome

Great product with 12g support

BRONDON E.

2020-07-13T09:14:08

Rated 4 out of 5

Director of IT

Would like it more if it recorded in a codec that Sony Vegas would accept

Tad S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design HyperDeck 12G Specifications

  • SDI Video Input

    1 x 10-bit SD/HD/3G/6G/12G-SDI switchable. Supports single link 4:2:2

  • SDI Video Output

    2 x 10-bit SD/HD/3G/6G/12G-SDI switchable. 1 x 10-bit SD/HD/3G/6G/12G-SDI switchable Loop Output. 1 x 10-bit SD/HD/ switchable Monitor Output

  • HDMI Video Input

    HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2

  • HDMI Video Output

    HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2

  • SDI Audio Input

    16 Channels embedded in SD/HD and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files

  • SDI Audio Output

    16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files

  • HDMI Audio Input

    8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files

  • HDMI Audio Output

    8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files

  • SSD Interface

    2 x 2.5" SATA 6Gb/s

  • Sync Input

    Blackburst or Tri-Sync

  • Device Control

    Sony compatible RS422 deck control port

  • Recorder Control

    12 buttons and jog wheel for local control. RJ45 Ethernet or RS422 for remote control

  • Recorder Configuration

    Recorder Front panel configurable or USB 2.0 high speed interface

  • Computer Interface

    1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control

  • SD Format Support

    625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only

  • HD Format Support

    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

  • 4K Playback Format Support

    4K Playback Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

  • SDI Metadata Support

    HD RP188 and closed captioning CEA-708

  • Audio Sampling

    Television standard 24-bit, 48 kHz sample rate

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • Multiple Rate Support

    SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI, 6G-SDI and 12G-SDI

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

  • Codecs

    Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, ProRes 422 QuickTime, ProRes 422 (LT) QuickTime, ProRes 422 (Proxy) QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60

  • Software Included

    Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)

  • Internal Software Upgrade

    Loaded at system start, or via updater software using USB port

  • Operating Systems

    Mac OS X 10.9 Mavericks
    Mac OS X 10.10 Yosemite or later
    Windows 7 or Windows 8

  • Display

    Built-in LCD for video, audio and timecode monitoring and menu settings

  • Physical Installation

    1 rack unit size less than 7 inches deep

  • Power Requirements

    1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz

  • Operating Temperature

    0 to 40 C (32 to 104 F)

  • Storage Temperature

    Minus 20 to 45 C (-4 to 113 F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    19 x 1.75 x 6.69" (48.3cm x 4.45cm x 17cm)

  • Weight

    3.59lb (1.6kg)

5 Accessories for Blackmagic Design HyperDeck Studio 12G Professional Broadcast Deck

  • All Accessories (5)
  • Batteries & Power Supply (3)
  • Power Supply & Accessories (2)

About Blackmagic Design HyperDeck Studio 12G Professional Broadcast Deck - SKU#1850856

FEATURED REVIEWS

Awesome

By BRONDON E.

Great product with 12g support

HyperDeck Studio 12G is the incredibly advanced and high performance broadcast deck with a native high frame rate Ultra HD design that includes 12G-SDI and HDMI 2.0 all SD, HD and Ultra HD formats up to 2160p60. HyperDeck Studio 12G includes 12G-SDI and HDMI 2.0 for all SD, HD and Ultra HD video formats right up to 2160p60. HyperDeck Studio 12G is the most advanced HyperDeck model and you get every video format in the one compact design.

Professional broadcast decks that use fast solid state disks
HyperDeck Studio disk recorders let you record the highest quality uncompressed or compressed ProRes and DNxHD video formats using fast 2.5" SSDs. Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks. Dual SSD slots let you record continuously, so when one disk is full recording automatically continues on the next SSD. You can mount an SSD recorded from HyperDeck Studio on any computer to access your files, so you can work with your media directly without copying the files! There are three great HyperDeck Studio models to choose from depending on your budget and what video formats you need to work with.

Record broadcast quality 10-bit video
HyperDeck Studio is a fantastic modern replacement for aging broadcast decks. You get the same functionality and control of a professional deck with the advantage of recording directly to uncompressed or industry standard ProRes and DNxHD video formats. Connect cameras, switchers or any other video feed to HyperDeck Studio and create files that are perfect for every production and post production workflow! With a slim 1 rack unit design, HyperDeck Studio is considerably smaller than a traditional VTR and fits easily into any equipment rack, OB vehicle or flyway kit.

Record incredible high from rate 2160p60 video
The advanced HyperDeck Studio 12G model includes 12G-SDI which allows Ultra HD at higher frames up to 60 fps. For years broadcasters have used high frame rate 720p and 1080p HD to cover sport and other fast action events. Now with 12G-SDI, HyperDeck Studio 12G can record the same high frame rates in Ultra HD. Now broadcasters can obtain the same production values of high frame rates, combined with the incredibly high resolution of Ultra HD, all down a single SDI BNC cable. 12G-SDI is multi rate so it also plugs into all your SD, HD-SDI, 3G-SDI and 6G-SDI equipment, and HyperDeck Studio 12G switches standards instantly, as it records whatever SDI signal is input and plays back whatever files you put on the SSD! Only 12G-SDI is the format of the future, that also connects to all the equipment you have today.

Industry Standard Formats, Record uncompressed, ProRes and DnXHD
HyperDeck Studio models gives you the choice of recording quality! You can record and play back incredible uncompressed 10-bit 4:2:2, or choose from high quality ProRes 422 (HQ) or DNxHD formats. HyperDeck Studio models have ProRes 422, ProRes 422 (LT) or ProRes 422 (Proxy)for longer recording. Using ProRes 422 (Proxy) you can record over 24 hours of 1080HD video on a single 480GB SSD drive! You could record for 2 days non stop before swapping SSD drives!

Unparalleled File Compatibility, Save files that are ready to be used in production
HyperDeck Studio records the widest compatible QuickTime files in 10-bit uncompressed or compressed formats. Depending on your format and frame rate, you can choose to record uncompressed QuickTime, ProRes or DNxHD files. That means you can instantly record files that will work with the most popular software packages such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro , After Effects , Media Composer and more. HyperDeck Studio gives you compatible files so you're free to choose the editing, color correction and finishing tools that are best for your clients and their jobs.

Now with dual SSDs you can keep recording forever
HyperDeck Studio's single rack unit size fits easily into any equipment rack, flyaway kit or OB vehicle, and is great if you want to record or play back with live production switchers. With dual SSD slots you get unlimited duration recording, when a record disk fills then recording will automatically continue on to the next disk. Now you can record an entire event without missing a thing! HyperDeck Studio Pro also includes a Thunderbolt connection so you can capture directly into a computer or master to SSD! With uncompressed, ProRes and DNxHD video formats HyperDeck Studio is the broadcast deck for the 21st century!

Professional Video Connections
HyperDeck Studio features a familiar VTR style design and includes illuminated crystal buttons, a jog/shuttle wheel and RS-422 for external control. The integrated high resolution LCD screen displays timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. You can also see video format and frame rate information, as well as audio levels, all on the same display!

Fast SSD Technology, super reliable, off the shelf media you can buy anywhere
HyperDeck Studio uses 2.5" solid state disks (SSDs) for reliable, fast video recording. Now you can eliminate complicated and expensive disk arrays, as a single SSD lets you record either compressed or uncompressed video effortlessly! You can even edit direct from the disk! SSDs are extremely robust because they have no moving parts and can handle shocks and vibrations that would destroy conventional hard drives or videotapes. Other removable media cards simply cannot match the level of performance and incredibly fast read/write speed of SSDs.

Blackmagic Design HyperDeck Studio 12G Professional Broadcast Deck - SKU#1850856 Features

  • Record and playback of HD and Ultra HD up to 60 fpsor 2160p60
  • Capture and playback with SSDs in uncompressed10-bit, DNxHD and ProRes quality
  • Supports QuickTime format to uncompressed, DNxHD and ProRes files and MXF files for DNxHD
  • Dual slots for continuous recording
  • 12G-SDI inputs and outputs, automatically switch between all SD, HD and Ultra HD video formats
  • HDMI 2.0 input and outputs with support for Ultra HD4K
  • USB connection for software updates to add new features and video formats
  • RS-422 deck control interface for external control
  • Ethernet for transport control and setting changes
  • 1 rack unit size with universal 110/240V built in power supply

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Blackmagic Design HyperDeck Studio 12G
