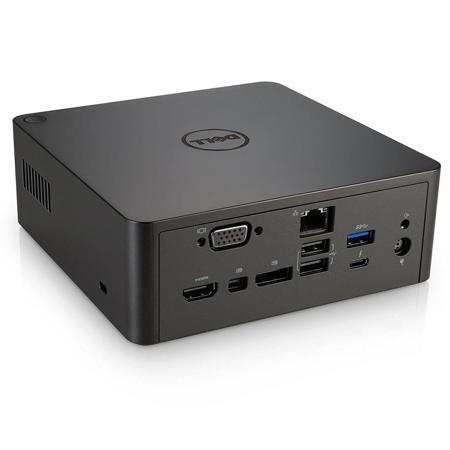

Used Dell TB16 240W Thunderbolt Dock with Adapter - FPY0R

SKU: US1859565 MFR: 452-BCNU DISC
$46.00
Earn VIP Reward Points

Key Features

  • Supports connection to up to three FHD displays, two 4K displays, or one 5K display at 60Hz
  • Compact and sleek design with a wide variety of ports for enhanced productivity
  • Provides power to your laptop and up to 60W to attached Thunderbolt 3 peripherals
  • Compatible with Dell Precision, Latitude, or XPS notebooks with a Thunderbolt 3 port
  • Highly rated and reliable, perfect for power users and traditional workstation clients
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-02-27T19:00:00

Rated 1 out of 5

Bad

Errir messages about non thubderbolt port, even thogh Dell recommended, loose fit into usb port, comes off, overheats, now will not turn on.

George W.

2020-02-26T19:00:00

Rated 1 out of 5

Terrible Product

Loses connectivity to my wireless keyboard every few minutes and frequently loses signal to my 2nd monitor. Extremely frustrating

Bob

2020-02-23T19:00:00

Rated 4 out of 5

Terrific with a HUGE power cord

I did not realize when I bought it that it would eliminate an extra power cord for the computer. With a single power cord into the dock I can channel two monitors, wireless mouse and keyboard and other thumb drive into the dock. Only critique is that the power cord adapter is really huge.

Midwestscholarship

2020-02-21T19:00:00

Rated 1 out of 5

Thunderbolt Dock made for PC's

Great for PC world, but this didn't work for me on my MacBook.

John

2020-02-17T19:00:00

Rated 1 out of 5

Worst Computer Product I have ever purchased

I have used this dock for about 3 years. it has caused my business more downtime than any other computer over the past 25 years. The inconvenience has cost thousands of dollars in lost work. Dell should be embarrassed by this product. The only thing worse has been their support techs. The experience has made me decide to never purchase another Dell product

3dcl

2020-02-16T19:00:00

Rated 1 out of 5

Great when it works

I am on my 4th docking station. 2 were warranty returns. 1 was an initial purchase, 1 was a replacement purchase out of warranty (I enjoy getting passed around support 10 times before finding someone that can even pull up my serial number by the way. They just die. If you want to break it, just unplug it quickly from the laptop. Poor cable length. Sometimes I must do a full power down for all components to make it work again after some situations. Recommend buying a warranty extension if possible, don't buy if not.

Lucky L.

2020-02-16T19:00:00

Rated 4 out of 5

Almost perfect....

I'd give it 5 stars except it took Dell an hour and a 1/2 to make it work correctly with my system. I had it working except at log on time. They made it work at logon time too!

MrBrahms

2020-02-12T19:00:00

Rated 2 out of 5

Mixed Feelings...

This dock has every port that you could ever imagine possible. Also, It charges the laptop via USB C. My problem is there is new firwmware update, that I was unable to patch. Also, the cable that connects to the laptop is super short. I did not want to try with an extension, as I though could create some problems.

IGNACIO

2020-02-11T19:00:00

Rated 4 out of 5

Good Device; Bad Installation Instructions

Performance is fine and allows me to connect all of the peripheral devices that I need. Installation instructions are sketchy and need to emphasize immediate downloading of several device drivers before attempting to use the Dock.

Al P.

2020-02-09T19:00:00

Rated 1 out of 5

Was not well with XPS 7390 2-in-1

Did not support XPS 7390 2-in-1 connection to Dell monitor with high resolution and kept dropping other paired devices (mouse, keyboard, drive ...). Trying a different dock...

DellUser

2020-02-05T19:00:00

Rated 1 out of 5

Junk

My old laptop and dock we were replaced with a new Latitude and this Thunderbolt dock. The new setup would routinely fail to recognize two monitors, or get them swapped and the only cure was to unplug and replug. After about 3 or 4 months of doing this, the Thunderbolt connector only plugs in one way and now my mouse and internet are starting to flake out.

DontBuyThis

2020-02-04T19:00:00

Rated 3 out of 5

Good, but shows some errors

Good, but my laptop gives me warnings sometimes that I need to connect to a different charger that puts out at least 60w. Seems odd because this dock should be capable of 180w

Nick

2020-02-02T19:00:00

Rated 3 out of 5

Flaky thunderbolt dock

Thunderbolt connector seems flaky. Any slight movement of the laptop causes the external monitor to go blank and I have to wait for it to recover. I got 2 docks which are each connected to different laptops and see the issue in both cases.

M2004

2020-01-31T19:00:00

Rated 3 out of 5

Thunderbolt dock

Works as advertised. However it is heavy bulky and takes up way too much real estate on the desktop area. The ports are not convenient or well positioned.

Rita

2020-01-28T19:00:00

Rated 5 out of 5

Perfect for multiple screens and peripherals!

The thunderbolt dock is sleek and compact. With multiple video and input connection types it is perfect for multiple screens and peripherals. I have a closed lid laptop on my desk supporting two 24" screens with one cable from the laptop to the box. I think I'm in love!

Lord B.

2020-01-28T19:00:00

Rated 2 out of 5

Thunderbolt Docks have inconsistent performance

Thunderbolt docks are not consistent. Sometimes you plug them in and they refuse to reconnect. I waste a lot of time supporting these docks. Unfortunately they are the only option.

RoadRunnerBeepBeep

2020-01-26T19:00:00

Rated 5 out of 5

Thunderbolt review

Works flawlessly and easier than old docking stations. Love all the ports

Dr D.

2020-01-23T19:00:00

Rated 5 out of 5

Works well with XPS 9570

I use this dock with a Dell XPS 9570 and have no issues with its performance.

Qatarcajun

2020-01-23T19:00:00

Rated 3 out of 5

Connectivity Issues

I have had a lot of issues with this device maintaining connectivity. Once driver issues were totally addressed, it worked marginally better.

Chris F.

2020-01-22T19:00:00

Rated 1 out of 5

Expectations not met

Whatever moving parts are in it, make a noticeable whining sound. Also, I expected the push button to act like my docking station where a push would goto sleep; but no I need to shutdown every time. Could not find any docs on how to set this up like I want. Sorry I hate to write bad reviews, but that box is annoying me right now.

Big E.

2020-01-22T19:00:00

Rated 5 out of 5

Nice Product

Just as advertised, this unit meets all my expectations. I really like I don't have to connect external power when using my home setup. One connection and I have all the devices I need ready for my use.

Joe38

2020-01-20T19:00:00

Rated 5 out of 5

My new super power

This dock keeps all of my wires in one place and allows me to plug in just one wire when I get to the office. It makes my set-up faster, makes my desk more organized and makes me happier. It's like having a super power. :)

Les G.

2020-01-20T19:00:00

Rated 5 out of 5

Great XPS workspace

Works great with my XPS 13. I even put my laptop on top of the dock and use it as a raising pad.

Stephanie S.

2020-01-19T19:00:00

Rated 1 out of 5

Poor Design

This is poorly designed. The primary plug on the new Dell XPS laptop computer is on the left side and the corresponding plug for the dock is on the left side. The cord is so short that it makes this just about impossible to work properly. I expected better for the price.

Long C.

2020-01-15T19:00:00

Rated 1 out of 5

Disappointed

Very finncky. Barely works half the time. Doesn’t compare with other docks in similar price point

Jay p.

2020-01-14T19:00:00

Rated 5 out of 5

Three machines in one.

Turns a simple laptop into a full service work station. Whenever there’s a need to print or scan, simply connect the laptop and it’s off to work I go. Best part is all older equipment still works so no need to replace everything.

Sandy P.

2020-01-13T19:00:00

Rated 4 out of 5

Home Business User

My only wish is that the Dock would provide "lift" for the laptop to provide better ventilation. No product complaints.

Dell U.

2020-01-12T19:00:00

Rated 3 out of 5

New DOC eliminates Dual HD Display Jitter

I upgraded to this doc to support dual HD monitors. It did it's job nicely! Two DP ports would have been handy.

RB1K

2020-01-09T19:00:00

Rated 4 out of 5

Dell TB16 Thunderbolt Dock... it's getting there.

It's "getting there". Have been using the TB16 docks since 2017 for our precision mobile workstations models above 5000. The first one was pretty buggy, would lock up, had display issues when connected to multiple monitors, and would not charge the workstations through the Thunderbolt connection. New firmware has resolved many of these issues, and the docks are now shipping with these updates/fixes installed. Just got another 4x of them into the office, and so far, they've performed flawlessly ...EXCEPT for a firmware update released on 12/30/19 for Thunderbolt 3 which fails to install every time.

Peloton I.

2020-01-09T19:00:00

Rated 4 out of 5

Excellent dock.....poor Dell support

Excellent dock. The problem was Dell support did not know how to use the dock to support two 24" monitors. My sales person knew the dock would support this configuration. Dell support is uneducated.

David

Dell TB16 Specifications

  • Compatibility

    Precision 15 7000 Series (7510)
    Precision 17 7000 Series (7710)
    Precision 15 3000 Series (3510)
    Precision 15 5000 Series (5510)
    Latitude E5570
    Latitude 7275
    Latitude 7370
    Latitude 5280
    Latitude 5480
    Latitude 5580
    XPS 9365 2-in-1
    Precision 5520
    Latitude 7280
    Precision 3520
    Latitude 7480
    Precision 7520
    Latitude 7285 2-in-1
    Latitude 7380
    Precision 17 7000 Series (7720)

  • Docking Interface

    Thunderbolt

  • Data Link Protocol

    Ethernet, Fast Ethernet, Gigabit Ethernet

  • Interfaces

    2x USB 2.0 - 4 pin USB Type A
    3x SuperSpeed USB 3.0 - 9 pin USB Type A
    1x Display / video - HDMI - 19 pin HDMI Type A
    1x Display / video - DisplayPort - 20 pin DisplayPort
    1x Network - RJ-45
    1x Headset - output - mini-phone 3.5 mm
    1x Speakers - output - mini-phone 3.5 mm
    1x Video - VGA - 15 pin D-Sub (DB-15)
    1x Thunderbolt 3 - Thunderbolt - 24 pin USB-C
    1x Display / video - DisplayPort - Mini DisplayPort

  • Power Device

    Power adapter

  • Voltage Required

    AC 120/230 V (50/60 Hz)

  • Power Provided

    240 Watt

  • OS Required

    Ubuntu Linux 14.04 SP1, Microsoft Windows 7 / 8 / 8.1 / 10, Red Hat Enterprise Linux 7.2

  • Functions

    LED indicator, up to 3 monitors support

  • Dimensions (WxDxH)

    14.5 x 14.5 x 5.2cm (5.71 x 5.71 x 2.05")

  • Weight

    720g (25.40 oz)

About Dell TB16 240W Thunderbolt Dock with Adapter - FPY0R

FEATURED REVIEWS

Excellent Dock. Intel is the problem.

By Aaron

I've read many complaints about this dock, but the issues most people are experiencing should be attributed toward Intel's driver. I work at a consulting firm that has deployed hundreds of these and the source of the problem is clear from our data. The docks are great and we've experienced a sub-1% failure rate. The driver problem is related to how Intel drivers and firmware updates are handled and how the problem is exacerbated by Windows 10 feature updates. Intel thunderbolt firmware/driver...

View full Review

A Great Investment

By HappyPat

The TB-16 allows me to use 3 large external displays, as well as connect all my peripherals in a couple of seconds. With 3 monitors desk space is at a premium. I set my laptop to run while closed and I store it under the stand for my 24 inch monitor. It would be nice if there was a power switch on the TB16 so you could turn on the laptop from the TB16. The XPS laptop does turn on with the lid closed when you first connect the TB16. However the only way you can get the XPS to turn on the seco...

View full Review

Are you seeking a seamless, high-performance docking solution for your workspace Look no further than the Dell Thunderbolt Dock TB16 - 240W, equipped with cutting-edge Intel Thunderbolt 3 technology. This sleek and stylish dock is engineered for power users and traditional workstation clients who demand the ultimate in connectivity and performance.

With the TB16, you can effortlessly connect up to three Full HD displays or two 4K displays, and even a single 5K display at a stunning 60Hz refresh rate. The Thunderbolt 3 dock port not only enables you to transfer data at an astonishing rate of up to 40 Gbps, perfect for handling large video editing files with ease, but it also charges your devices rapidly, ensuring you stay productive without interruption.

Despite its compact and portable design, measuring just 5.7 x 5.7 x 2 inches, the TB16 - 240W dock does not compromise on flexibility. By plugging a single cable into your laptop, you unlock a plethora of ports to enhance your productivity. This includes two USB 2.0 ports, three USB 3.0 ports for high-speed data transfer, a Thunderbolt 3 (USB-C) port, a speaker output, a combo audio jack, a Gigabit Ethernet port for reliable network connectivity, and a Kensington Lock Slot for security.

Moreover, the TB16 - 240W is not just a hub for your peripherals; it's also a robust power source. It can deliver power to your laptop at 19.5V and provide up to 60W to attached Thunderbolt 3 peripherals. For Dell Precision, Latitude, or XPS notebooks with a Thunderbolt 3 port, it can supply up to 130W of power, ensuring your devices are always ready for action.

Choose the Dell Thunderbolt Dock TB16 - 240W for a durable, high-quality docking experience that stands out for its speed, versatility, and customer-approved reliability. Whether you're a creative professional, a business user, or someone who appreciates an organized and efficient workspace, the TB16 is the definitive choice for expanding your laptop's capabilities with just one cable.

Dell TB16 240W Thunderbolt Dock with Adapter - FPY0R Features

  • High-performance Thunderbolt Dock with Intel Thunderbolt 3 technology for fast data transfer and charging
  • Supports connection to up to three FHD displays, two 4K displays, or one 5K display at 60Hz
  • Compact and sleek design with a wide variety of ports for enhanced productivity
  • Provides power to your laptop and up to 60W to attached Thunderbolt 3 peripherals
  • Compatible with Dell Precision, Latitude, or XPS notebooks with a Thunderbolt 3 port
  • Highly rated and reliable, perfect for power users and traditional workstation clients

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Supports connection to up to three FHD displays, two 4K displays, or one 5K display at 60Hz
  • Compact and sleek design with a wide variety of ports for enhanced productivity
  • Provides power to your laptop and up to 60W to attached Thunderbolt 3 peripherals
  • Compatible with Dell Precision, Latitude, or XPS notebooks with a Thunderbolt 3 port
  • Highly rated and reliable, perfect for power users and traditional workstation clients
