Used Tascam DR-60D 4-Channel Linear PCM Recorder, 96 kHz PCM Recording, 3.5mm Stereo Input with Plug-in Power

SKU: US1862895

This item is no longer available.

Recommended Items

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-06-08T21:00:00

Rated 5 out of 5

BEST 4 CHANNEL RECORDER FOR HDSLR USE!

We bought 2 of these units and they are the best thing that has ever been created for HDSLR Video Production. We are using them for filming a national television program for national distribution. We have had no problems and we are planing on buying at least three more very soon. The DR-60D is the most professional audio field recorder made for film and video makers. TASCAM really nailed it on this one. My H4N recorders will soon be retired and put away. They are that good. No Kidding. You can't go wrong with a DR-60D TASCAM recorder. Keep up the great work TASCAM.

RON W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Tascam DR-60D Specifications

  • Recording Media

    SD Card(64MB to 2GB), SDHC Card(4GB to 32GB)

  • Recording Format: WAV

    44.1/48/96kHz, 16/24bit

  • Recording Format: BWF

    44.1/48/96kHz, 16/24bit

  • Number of Channels

    4 Channel (Stereo x2)

  • 1/L, 2/R Connectors: Connector

    XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS Standard Jack

  • Set to "MIC/MIC+PHANTOM": Impedance

    2k ohms (Input)

  • MIC / MIC+PHANTOM": Phantom Power

    48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH)

  • Set to "MIC / MIC+PHANTOM": Maximum

    0dBu (Input Level )

  • Set to "MIC / MIC+PHANTOM": Minimum

    -72dBu (Input Level )

  • Set "MIC/MIC+PHANTOM": MIC Input Gain

    TRIM MAX

  • Set to "MIC / MIC+PHANTOM": LOW

    +11dB

  • Set to "MIC / MIC+PHANTOM": MID

    +36dB

  • Set to "MIC / MIC+PHANTOM": HIGH

    +52dB

  • Set to "LINE": Input Impedance

    10k ohms or more

  • Set to "LINE": Standard Input Level

    +4dBu

  • Set to "LINE": Maximum Input Level

    +24dBu

  • 3-4 connector

    3.5mm (1/8") Stereo Mini Jack (this connector can be supplied plug-in power)

  • 3-4 connector: Input Impedance

    10k ohms

  • 3-4 connector: Maximum Input Level

    +10dBV

  • 3-4 connector: Minimum Input Level

    -50dBV

  • 3-4 connector: MIC Input Gain

    TRIM MAX
    LOW: +3dB
    HIGH: +26dB

  • CAMERA IN connector

    3.5mm (1/8") Stereo Mini Jack

  • CAMERA IN connector: Input Impedance

    10k ohms

  • CAMERA IN connector: Standard

    -10dBV (Input Level)

  • CAMERA IN connector: Maximum

    +6dBV (Input Level)

  • CAMERA OUT connector

    3.5mm (1/8") Stereo Mini Jack

  • CAMERA OUT connector: Output Impedance

    200 ohms

  • CAMERA OUT connector: Standard o/p Level

    -50dBV

  • CAMERA OUT connector: Maximum o/p Level

    -30dBV

  • LINE OUT connector

    3.5mm (1/8") Stereo Mini Jack

  • LINE OUT connector Output Impedance

    200 ohms

  • LINE OUT connector Standard o/p Level

    -10dBV

  • LINE OUT connector Maximum output level

    +10dBV

  • PHONES connector

    3.5mm (1/8") Stereo Mini Jack

  • PHONES connector: Maximum output level

    50mW + 50mW

  • USB: Connector

    Mini-B type

  • USB: Format

    USB2.0 HIGH SPEED Mass Storage Class

  • REMOTE: Connector

    2.5mm TRS jack

  • Power

    Four AA Batteries(Alkaline or NI-MH)
    USB Bus Power
    Dedicated AC Adapter(TASCAM PS-P515U)
    Dedicated External Battery Pack(TASCAM BP-6AA)

  • Power Consumption

    5.4W

  • Continuous Operation Time

    2ch WAV, 44.1kHz, 16bit rec

  • DR-60D: Alkaline Batteries (EVOLTA)

    About 2:30 min (Phantom on)
    About 4:30 min (Phantom off)

  • DR-60D: NI-MH Batteries (Eneloop)

    About 3:15 min (Phantom on)
    About 5:00 min (Phantom off)

  • DR-60D: NI-MH Batteries (Eneloop pro)

    About 3:45 min (Phantom on)
    About 6:00 min (Phantom off)

  • DR-60D+BP-6AA: Alkaline Batteries

    About 5:30 min (Phantom on)
    About 10:30 min (Phantom off) (EVOLTA)

  • DR-60D+BP-6AA: NI-MH Batteries

    About 7:30 min (Phantom on)
    About 12:00 min (Phantom off) (Eneloop)

  • DR60D+6AA: NI-MH Batteries (Eneloop pro)

    About 9:30 min (Phantom on)
    About 14:30 min (Phantom off)

  • Operating Temperature

    0deg.C to 40deg.C

  • Windows: OS

    Windows XP, Windows Vista, Windows 7, Windows 8

  • Windows: CPU

    Pentium 300MHz or more

  • Windows: RAM

    128MB or more

  • Windows: USB

    recommended: USB2.0

  • Macintosh: OS

    Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8)

  • Macintosh: CPU

    Power PC, iMac, G3, G4 266MHz or more

  • Macintosh: RAM

    64MB or more

  • Macintosh: USB

    Recommended: USB2.0

  • Audio performance: Frequency Response

    20-20kHz +0.5/-2dB(LINE IN or MIC IN to LINE OUT, Fs44.1k/48kHz, JEITA)
    20-40kHz +0.5/-3dB(LINE IN or MIC IN to LINE OUT, Fs96kHz, JEITA)

  • Audio performance: Distortion

    0.02% or less(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA)

  • Audio performance: S/N ratio

    92dB or more(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA)

  • Audio performance: Equivalent I/p Noise

    -120dBu or more

  • Dimensions (WxHxD)

    133x93.2x78mm / 5.23x3.6x3.07" (with the Top Adapter Attached)

  • Weight

    510g / 17.9oz (not Including Batteries)

Related Articles & Videos

Lindsay Adler's Photography Holiday Wishlist & Gift Guide

Lindsay Adler's Photography Holiday Wishlist & Gift Guide

With the holidays fast approaching Adorama asked some of the industry's hottest photographers what's on their holiday wishlist this year.

Read more

About Tascam DR-60D 4-Channel Linear PCM Recorder, 96 kHz PCM Recording, 3.5mm Stereo Input with Plug-in Power

FEATURED REVIEWS

BEST 4 CHANNEL RECORDER FOR HDSLR USE!

By RON W.

We bought 2 of these units and they are the best thing that has ever been created for HDSLR Video Production. We are using them for filming a national television program for national distribution. We have had no problems and we are planing on buying at least three more very soon. The DR-60D is the most professional audio field recorder made for film and video makers. TASCAM really nailed it on this one. My H4N recorders will soon be retired and put away. They are that good. No Kidding. You ca...

View full Review

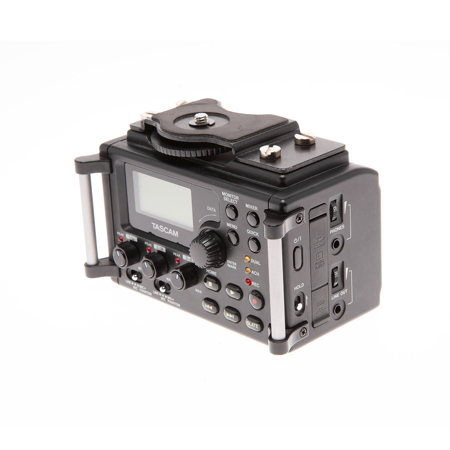

The Tascam DR-60D Mixer Integrated Linear PCM Recorder is a professional linear PCM recorder that allows you to capture up to four simultaneous channels of audio and store your recordings to SD or SDHC memory cards. Designed for recording high-quality audio for DSLR video applications, the DR-60D mounts to a tripod and allows you to screw your DSLR camera into the top of the recorder.

The DR-60D is capable of recording at 44.1, 48 and 96 kHz sample rates and at bit depths of 16- and 24-bit. Channels 1 and 2 are equipped with XLR/TRS combo jacks that can accept either mic or line level signals. These inputs can be used to connect microphones, audio playback devices and other gear. Each of the combo jack inputs are capable of supplying either 24V or 48V phantom power and each can be set independently of one another. They are also each equipped with peak indicator lights for monitoring your input levels as you record, as well as with discrete microphone preamps for independent gain control over microphones connected to these inputs.

In addition, the DR-60D is equipped with a 3.5mm stereo input that feeds into channels 3 and 4. It can be used to connect gear such as stereo microphones or external stereo audio equipment that terminates using a 3.5mm mini plug. It is capable of supplying plug-in power to video mics and other high output mics that require it. The 3.5mm input is equipped with one gain control knob that controls the input level to both channels 3 and 4 and it also has a peak indicator light.

Beyond these features, the DR-60D offers a variety of other functions that lend themselves to improved efficiency and convenience. Operating on four AA batteries, the DR-60D can record for up to 5 hours using Ni-MH batteries. Battery life can be extended to 12 hours by adding the optional BP-6AA battery pack. Also, the unit can be powered by a computer via the USB port. This can be useful to conserve battery life while transferring recordings off an SD card to your computer's hard drive. The DR-60D also features auto tone and slate tone functions that aim to simplify synchronization to video files during editing. Auto tones can be added to the beginning and ending of the recording and there is a slate button that can be pressed to add a slate tone to the recording at any time. These tones are also output to the 3.5mm camera out jack so they can be recorded to your DSLR camera's audio recorder for timing reference.

Tascam DR-60D 4-Channel Linear PCM Recorder, 96 kHz PCM Recording, 3.5mm Stereo Input with Plug-in Power Features

  • Records 4 external inputs in two pairs as two stereo audio files
  • Tripod mounting threads on bottom of recorder and DSLR screw attachment that allows attachment and removal with a coin
  • Remote jack for use with optional RC-10 wired remote or RC-3F footswitch
  • Pre-recording function allows unit to record two seconds of sound prior to recording actually being activated
  • Hold switch to prevent accidental adjustments
  • Handles on both sides and can attach to a shoulder belt
  • Camera in jack for monitoring DSLR recorder output
  • Mid-side decoding

What's in the box:

  • Tascam DR-60D 4-Channel Linear PCM Recorder
  • Item Note: MissingUSB Cable
