DJI Phantom 4 Pro/Pro+ V2.0 Specifications

Performance

Performance

Jump to...
  • Maximum Takeoff Weight

    48.50 oz (1375g)

  • Maximum Horizontal Speed

    31.1 mph / 50 km/h (P-mode)
    44.7 mph / 72 km/h (S-mode)

  • Maximum Flight Time

    30 Minutes

  • Hovering Accuracy

    +/-0.98' / 0.3 m Horizontal with Vision Positioning
    +/-0.33' / 0.1 m Vertical with Vision Positioning

Flight Control System

Jump to...
  • GNSS Support

    GPS, GLONASS

3D Object Detection

Jump to...
  • Operating Range

    0.7 to 23.0' (0.2 to 7.0m)

  • Minimum Object Size

    7.9 x 7.9" (20.0 x 20.0cm)

  • Required Object Reflectivity

    >8%

Vision System

Jump to...
  • Vision System

    Downward, Forward, Backward, Left, Right

  • Velocity Range

    46 ft/s (14 m/s) at 6.6' (2m)

  • Maximum Altitude

    32' / 10 m

  • Operating Range

    0.0 to 32.8' (0.0 to 10.0m)

  • Obstacle Sensory Range

    0.7 to 23.0' (0.2 to 7.0m)

  • Forward Field of View

    60 Degree (Horizontal)
    +/-27 Degree (Vertical)

  • Downward Field of View

    70 Degree (Front to Back)
    50 Degree (Side to Side)

  • Backward Field of View

    60 Degree (Horizontal)
    +/-27 Degree (Vertical)

  • Operating Environment

    Surface with Clear Patterns at >15 lux

Remote Controller / Transmitter

Jump to...
  • Operating Frequency

    2.4 GHz (2.4 - 2.483)
    5.8 GHz (5.725 - 5.825)

  • Maximum Operating Distance

    22,966' (7000.04m) at 2.4 G
    22,966' (7000.04m) at 5.8 G

  • Transmitter Power

    26 dBm (2.4 G)
    26 dBm (5.8 G)

  • Battery Type

    1x Built-In

  • Battery Chemistry

    Lithium-Ion Polymer (LiPo)

  • Battery Capacity

    6000 mAh

  • Mobile Device Compatibility

    Devices up to 6.3" (160.02mm) Wide and 0.3" (7.62mm) Thick

  • App Operating System Requirements

    Android 4.4 and later
    iOS 9.0 and later

  • Sensor

    1" CMOS

  • Effective Pixels

    20 MP

  • Focal Length

    8.8mm / 24mm (35mm Equivalent)

  • Lens Field of View

    84 Degree

  • Aperture

    f/2.8 - 11

  • Minimum Focusing Distance

    3.3' (1.0m)

  • Photo ISO Range

    100 - 6400 (Manual)
    100 - 3200 (Auto)

  • Video ISO Range

    100 - 6400 (Manual)
    100 - 3200 (Auto)

  • Electronic Shutter Speed

    8 - 1/8000 Second

  • Photo Resolution

    3:2: 5472 x 3648
    16:9: 5472 x 3078
    4:3: 4864 x 3648

  • Photo Format

    JPEG, DNG

  • Video Format

    4096 x 2160p at 24/25/30 fps (100 Mb/s MOV via H.265)
    3840 x 2160p at 24/25/30 fps (100 Mb/s MOV via H.265)
    2720 x 1530p at 24/25/30 fps (100 Mb/s MOV via H.265)
    1920 x 1080p at 24/25/30/48/50/60/120 fps (100 Mb/s MOV via H.265)
    1280 x 720p at 24/25/30/48/50/60/120 fps (100 Mb/s MOV via H.264)

  • Photo Modes

    Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot

  • Number of Axes

    3 (Pitch, Roll, Yaw)

  • Control Range

    Pitch: -90 to 30 Degree
    Yaw: 0 to 15 Degree

Flight Battery

Jump to...
  • Battery Chemistry

    Lithium-Ion Polymer (LiPo)

  • Capacity

    5870 mAh / 89.2 Wh

  • Battery Configuration

    4 S / 17.4 V

  • Maximum Charging Power

    160 W

Charger

Jump to...
  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Output Voltage

    17.5 V, 5.7 A

  • Power Rating

    100 W

General

Jump to...
  • Number of Rotors

    4

  • Weight

    48.50 oz (1375g) (Including Propellers, Battery, Gimbal, Camera)

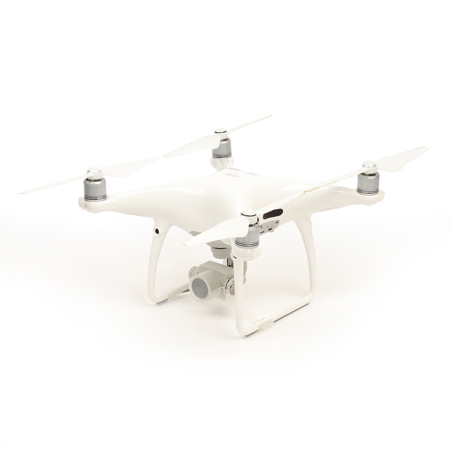

About DJI Phantom 4 Pro - Aircraft Only SKU#1874916

The new Phantom 4 Pro V2.0 features an OcuSync HD transmission system, which supports automatic dual-frequency band switching and connects to DJI Goggles wirelessly. Like the Phantom 4 Pro and Advanced, the Phantom 4 Pro V2.0 is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps. Plus, its FlightAutonomy system includes dual rear vision sensors and infrared sensing systems for a total of 5 directions of obstacle sensing and 4 directions of obstacle avoidance.


Quiter, More enjoyable flights
New aerodynamic 9455S propellers and new FOC ESC drivers offer improved noise control and sinusoidal current for increased stability.

Aircraft noise has been reduced by up to 4dB (60%) for quieter, more enjoyable flights.


New OcuSync Video Transmission
The Phantom 4 Pro V2.0's remote controller uses OcuSync video transmission, which employs time-division multiplexing technology to send control signal and receive video signal simultaneously. When the controller is powered on, the OcuSync system scans for the frequency band with lowest interference and switches accordingly to maintain clear transmission. Also, thanks to OcuSync, the Phantom 4 Pro V2.0 wirelessly connects to DJI Goggles. Free from cable constraints, you can enjoy exciting FPV flight at speeds of up to 72kph (45mph) in S-mode.

Dual-Frequency Transmission
The Phantom 4 Pro V2.0 remote controller utilizes the OcuSync HD video transmission system that operates on both 2.4GHz and 5.8GHz frequency bands, with a max transmission range of 7 km. Assessing environmental conditions, the aircraft chooses the best band in which to operate, helping to reduce signal interference.

Fast Switching of Frequency Point
OcuSync video transmission technology can sense environmental interference in real time. When the interference is strong, the system switches to the frequency point with the least amount of intrusion.

1080p Live View
With bi-directional perception and error-resilient technology, the Phantom 4 Pro V2.0 saves up to 30% of its bandwidth and solves common problems such as video lag and even compression artifacts within video transmission, providing crystal-clear live video at up to 1080p.

Multiple Device Connectivity
OcuSync can connect to multiple devices at the same time. It can link two remote controllers or a remote controller and set of DJI Goggles. OcuSync can sense aircraft altitude and the relative position of aircrafts while choosing the ideal antenna combination for Goggles, the remote controller, and aircraft for optimal signal transmission.


See A Different World
The Phantom 4 Pro V2.0 wirelessly connects to DJI Goggles, putting you directly in the heart of the action with dual LTPS displays that offer a high-quality 1080p live camera view with an 85 Degree FOV. Connected via OcuSync, users can experience fast and clear FPV flight with incredibly low latency.Plus, controlling your Phantom with DJI Goggles is more intuitive than ever. Just enable Head Tracking, which allows you to move the aircraft or gimbal simply by turning your head.

DJI Phantom 4 Pro - Aircraft Only SKU#1874916 Features

  • 1" 20 MP CMOS Sensor
  • 30-min Flight Time
  • Obstacle Sensing in Five Directions
  • Quieter Flight and Updated Transmission System
  • 7km Control Range
  • 4 dB Noise Reduction
  • 4K 60fps
  • 30m Sensor Range

What's in the box:

  • DJI Phantom 4 Pro Aircraft
  • 2x Propeller Pairs
  • Gimbal Cover
  • Firmware v01.03.0509
  • Item Note: Gimbal Motor Jitter/Overload. Cosmetic Condition is Well Used.
