$23 PRICE DROPUsed Condition: Excellent
Used Deity Microphones Deity Connect Dual-Channel 2.4Ghz Wireless System
Item Note: Missing Lavalier Microphone; DSLR Locking Audio Cable; DUO-RX Sync Cable; Foam Windscreen; Lavalier Tie Clip
SKU: US1878665 MFR: CONNECT
Earn VIP Reward Points

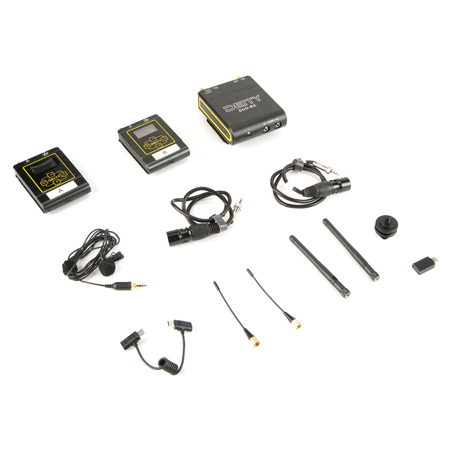

What`s in the box:
- 1x Lavalier Microphone
- 2x XLR to 3.5mm Cables
- USB Type-C Charging Cable
- USB Type-C to USB Type-A Firmware Update Adapter
- 2x Transmitter Antennas
- 2x Receiver Elbow Antennas
- 1x Foam Windscreen
- 1x Lavalier Tie Clip
- Cold Shoe to 1/4 "-20 Adapter
- Waterproof Hardshell Case with Custom Foam Insert ** Item Note: Missing Lavalier Microphone; DSLR Locking Audio Cable; DUO-RX Sync Cable; Foam Windscreen; Lavalier Tie Clip **
INCLUDES FREE WARRANTY
- This used item comes with a free 90-day warranty. ?
Free Shipping
See Options
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Deity Microphones Connect Dual-Channel 2.4Ghz Wireless System - SKU#1878665
FEATURED REVIEWS
perfect EFP Kit for field production or studio
This kit is well thought out. It's high quality and built like a tank excellent performance.
Sharp clear sound from XLR driven AKG C 414 Microphone
The Deity base module is mounted to my small Leica Sl rig with a Sigma F1.4 105 mm lens. Absolutely beautiful talking head video with deep Bokeh and sharp clear sound from XLR driven AKG C 414 Microphone.

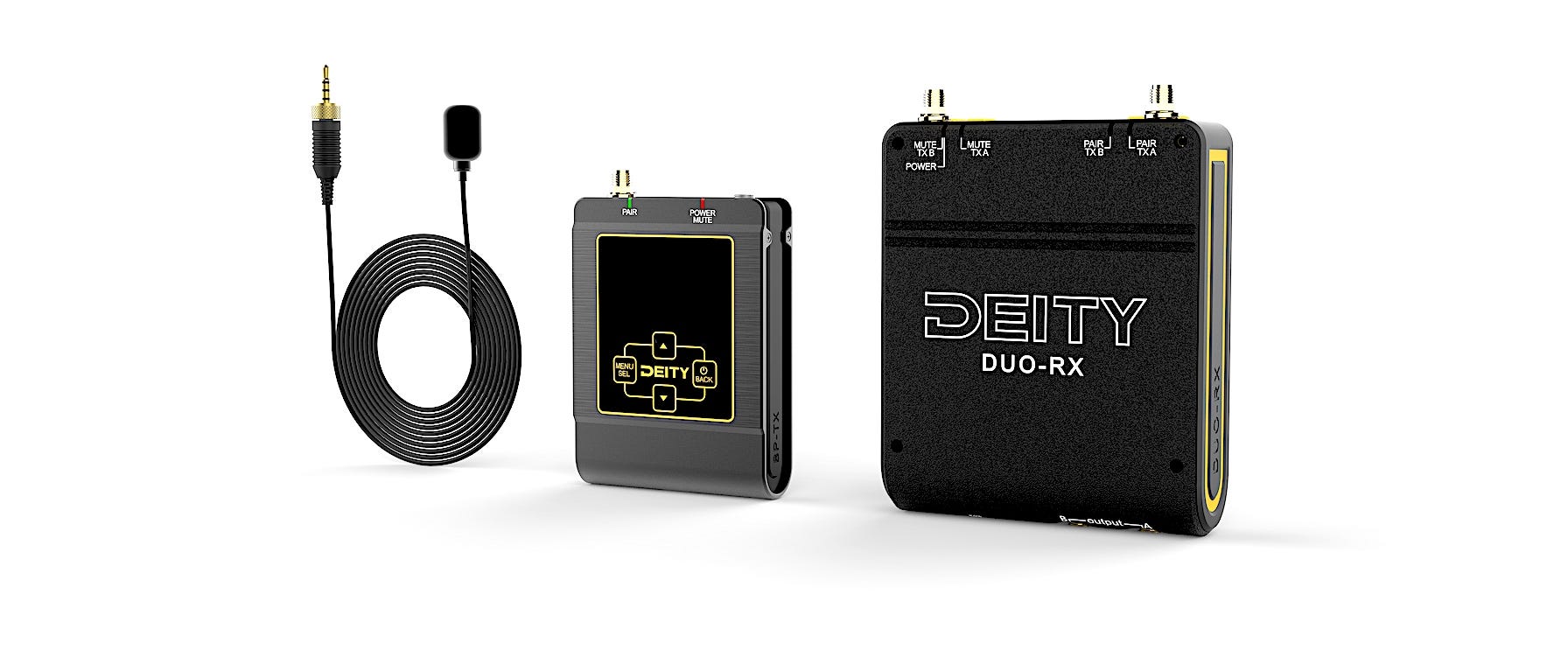

Deity Connect.
Connect With The World Differently.
Finally, A Professional Grade 2.4Ghz Wireless System.
Taking a cue from industry professional wireless companies we wanted Deity Connect to have the same reliable signal and audio quality. For this we started off with a list of requirements we knew we had to include:
Dual Channel Receiver with Top-Down Ergonomics
24bit/48Khz Uncompressed Audio
SMA Antenna Ports
USB-C QuickCharge
OLED Daylight Display Screens
Input Gain Control at the TX
Adjustable Output Levels
Dual Outputs
Transmitter with a Low Cut, Limiter, and High Freq Boost
>10Hr Battery Life; Charges in 1Hr
Built Like UHF.

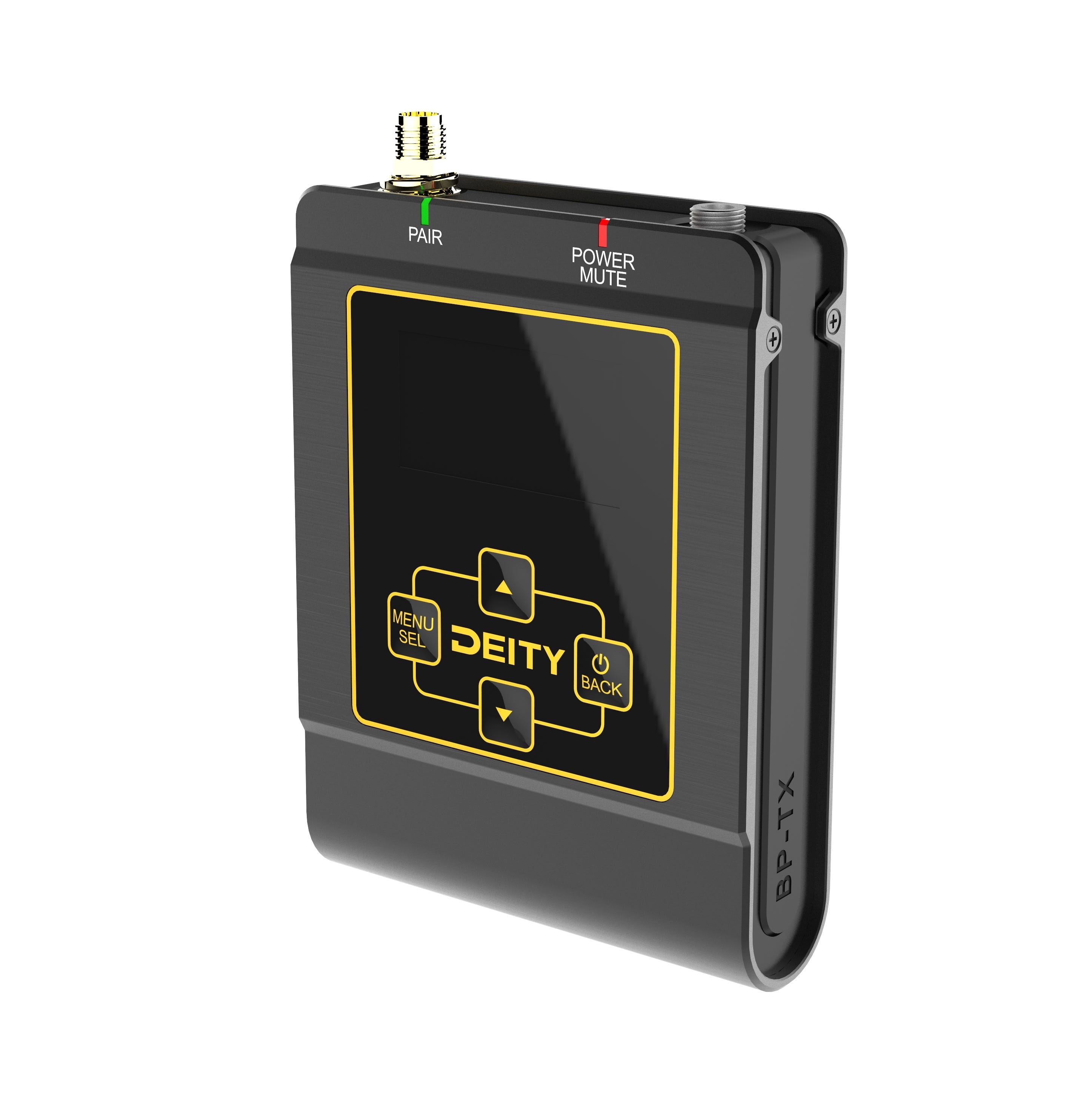

The BP-TX is made out of CNC aluminum to give it a tough, durable build quality. The top of the unit features a SMA antenna connector, a 1/4″ 20 mounting point for the belt clip, and a locking 3.5mm standard microphone input. With 2 multi-color LED alert lights you will be able to tell the status at just a glance. The daylight bright OLED display offers a fast refresh rate so VU meters bounce in real time. The high resolution of the OLED display allows for the statuses of all the major features to be displayed on the home screen.
Features Only 2.4Ghz Can Deliver.
The RF power output is 100mw / 50mw / 25mw / 10mw/ or AUTO. When you set the BP-TX to AUTO RF Power the DUO-RX will transmit a pulse to the BP-TX (if the signal drops below the threshold), telling the BP-TX to increase its RF power output to help prevent a loss of signal. Using AUTO RF Power will also increase your battery life because you will never use more power than the system actually needs.
All settings on the BP-TX can be over written in the menu of the DUO-RX. Now you no longer have to walk over to an actor to change a simple setting. Simple pull up which transmitter you need to adjust in the menu of the DUO-RX, make the change, and instantly the BP-TX updates to the new setting.

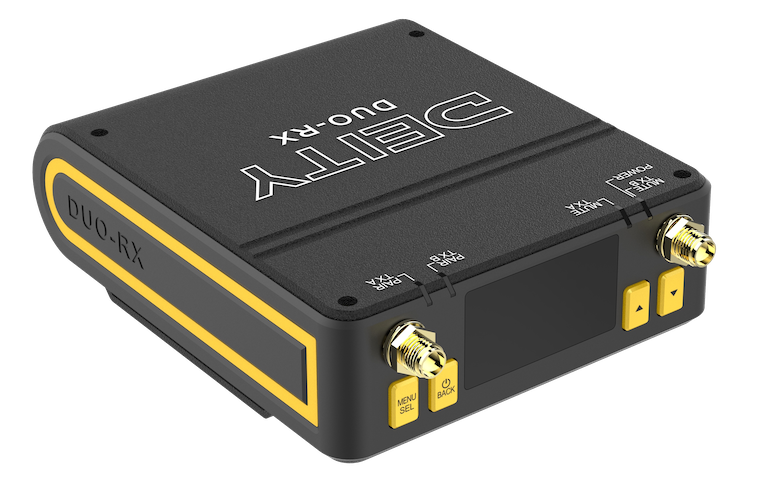

The DUO-RX.
From the start we wanted the Deity Connect system to work with the ergonomics of a sound bag. The DUO-RX was designed so that the screen, buttons, and antenna all face up in a sound bag so the operator does not need to remove it. And with the USB-C power and audio outputs on the bottom, the cable management can be maximized inside the audio bag. These two ergonomic principals also allow for the screen to face camera operators when mounting it onto a camera, instead of facing the ceiling like other brands.
QUAD Antenna Design.
We added dual SMA elbow antennas so no matter how you mount the DUO-RX your external antenna can always be mounted vertically. But we took it a step further by adding two dipole internal horizontal antennas to capture signals on the horizontal plane. This quad design gives us a dual true diversity setup across two receiver modules. This is the same method used in commercial grade WiFi and high-end drones. And because we offer users removable antennas, you can upgrade the antenna array yourself if you want to add a clover antenna, directional antenna, or even connect to a 2.4Ghz antenna splitter.
Better, Stronger, Interference-Free WiFi from 24Ghz.
The Deity Connect ecosystem uses a proprietary protocol that was engineered with several mechanisms to ensure a strong audio link while at the same time co-existing peacefully with other 2.4Ghz devices using the same frequency band.
