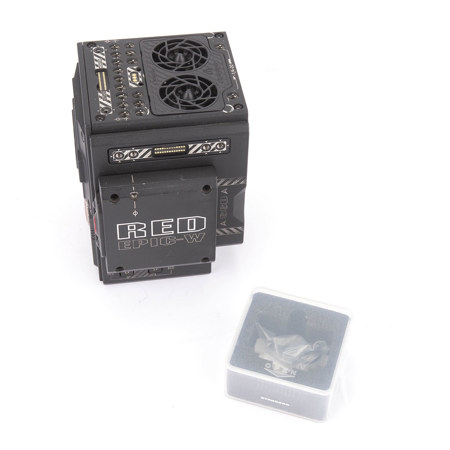

Used Red Digital Cinema RED EPIC-W Brain Camera with HELIUM 8K S35 Sensor (1619 Hours)

SKU: US1881782 MFR: 710-0263-STD
Earn VIP Reward Points

What`s in the box:

  • RED EPIC-W BRAIN with HELIUM 8K S35 Sensor
  • DSMC Front Body Cap
  • DSMC2 OLPF with Case
  • EPIC-W BRAIN Case

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$137.99

3 Year

$215.99

4 Year

$292.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

RED Digital Cinema RED EPIC-W 8K S35 Specifications

  • Sensor Type

    HELIUM 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    29.90 mm x 15.77 mm (Diagonal: 33.80 mm)

  • Dynamic Range

    16.5+ stops

  • Signal-To-Noise-Ratio

    80 dB

  • Max Data Rates

    Up to 275 MB/s using RED MINI-MAG (480GB & 960GB)
    Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

  • Max Frame Rates

    30 fps at 8K Full Format (8192 x 4320), 30 fps at 8K 2.4:1 (8192 x 3456)
    30 fps at 7K Full Format (7168 x 3780), 40 fps at 7K 2.4:1 (7168 x 3024)
    75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
    96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)

  • Max Frame Rates (Contd.)

    120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
    150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
    240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates (Project Timebase)

    23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions

  • Redcode Settings Range (2:1 to 22:1)

    6:1 REDCODE for 8K Full Format (8192 x 4320) at 24 fps
    7:1 REDCODE for 8K Full Format (8192 x 4320) at 30 fps
    2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
    4:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps

  • Redcode Raw Acquisition Formats

    8K Full Format (8192 x 4320), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
    7K Full Format (7168 x 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    6K Full Format (6144 x 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
    5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

  • Redcode Raw Acquisition Formats (Contd.)

    4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

  • Apple Prores

    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 x 2160) up to 29.97 fps
    ProRes 4444 XQ and ProRes 4444 at 2K (2048 x 1080) up to 120 fps
    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 x 1080) up to 120 fps

  • Avid Codecs

    DNxHR HQX at 4K (4096 x 2160) 12-bit up to 29.97 fps
    DNxHR HQ, SQ and LB at 4K (4096 x 2160) 8-bit up to 29.97 fps
    DNxHR 444 at 2K (2048 x 1080) 12-bit up to 120 fps
    DNxHD 444 and HQX (1920 x 1080) 10-bit up to 120 fps
    DNxHD HQ, SQ and LB (1920 x 1080) 8-bit up to 120 fps

  • Construction

    Magnesium and Aluminum Alloy

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Supports 33x33x33, 32x32x32, 26x26x26, and 17x17x17 3D LUTs
    Variable number of 3D LUT outputs with DSMC2 expander module
    User programmable shaper 1D LUTsTetrahedral interpolation, 16-bit processing

  • Audio

    Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
    Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz

  • Remote Control

    Integrated R.C.P. WiFi antenna
    Ethernet, RS232, and GPI Trigger with DSMC2 expander module

  • Monitor Outputs

    3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
    1080p RGB or 4:2:2, 720p RGB or 4:2:2
    480p RGB or 4:2:2 (HDMI only)
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection.
    RED Touch 9.0" LCD, RED Touch 7.0" LCD, REDTouch 5.0" LCD, RED PRO 7" LCD, BOMB EVF(OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable.

  • REDCINE-X Pro Delivery Formats

    4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
    1080p 4:2:0, 720p 4:2:0 : H.264, .MP4

  • Video Editing Software Compatibility

    Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

  • Weight

    3.35 lbs (56 oz) Brain with Integrated Media Bay)

About RED EPIC-W Brain Camera with HELIUM 8K S35 Sensor (1619 Hours) SKU#1881782

RESOLUTION MATTERS

With superior image quality and best-in-class resolution, RED EPIC-W with HELIUM 8K S35 sensor allows content creators everywhere to deliver ultra-detailed still and motion images. EPIC-W’s 35 million pixels capture subtle features and tiny nuances that can’t be seen at lower resolutions. At 35.4 megapixels, that's 4x more resolution than 4K—and over 17x more resolution than HD.

  • HELIUM 35.4 Megapixel CMOS
  • 8K 2.4:1 resolution up to 30 fps
  • 16.5+ stops of dynamic range
  • 275 MB/s data speeds
  • REDCODE RAW + Apple ProRes or Avid DNxHR/HD
RESOLUTION MATTERS. MORE PIXELS. MORE POTENTIAL

SUPERIOR IMAGE QUALITY

Like the WEAPON 8K S35, EPIC-W combines advanced color science with incredible dynamic range. The result is cinema quality imagery with vivid colors plus detailed shadows and highlights to produce the most realistic images imaginable.

The HELIUM 8K S35 sensor received the highest DxOMark sensor score ever. You can test-drive footage from this sensor on the R3D Sample Page.

SUPERIOR IMAGE QUALITY
EXPANDED FRAME OF MIND

EXPANDED FRAME OF MIND

For cinematographers, 8K resolution offers more than just incredible detail. It delivers countless possibilities for reframing, VFX (visual effects), motion stabilization, supersampling footage, and more. More resolution boils down to the ability to do more with your footage in production—all without ever having to reshoot.

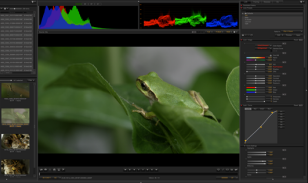

A BETTER WORKFLOW

A BETTER WORKFLOW

The EPIC-W is capable of recording REDCODE RAW and proxy 4K Apple ProRes or Avid DNxHR/HD formats—simultaneously. More recording options and the raw power of REDCODE provide the freedom to choose the workflow that's right for you. Take advantage of RED's powerful non-linear editing application, REDCINE-X PRO, to cut dailies, make color corrections, and augment your workflow.

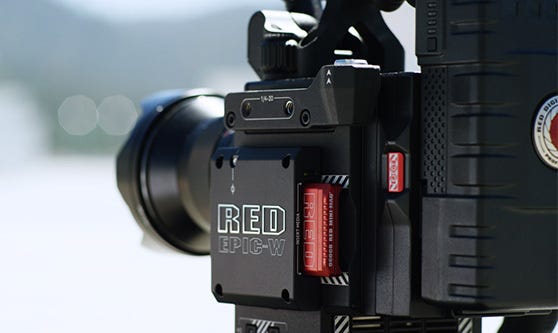

DSMC2 MODULARITY

The DSMC2 form factor is our smallest and lightest BRAIN ever. It is also compatible with a growing arsenal of modules and accessories—from RED and other third party manufacturers. Tack on interchangeable OLPFs and lens mounts and EPIC-W gives you the ultimate control over your footage.

DSMC2 MODULARITY

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • RED EPIC-W BRAIN with HELIUM 8K S35 Sensor
  • DSMC Front Body Cap
  • DSMC2 OLPF with Case
  • EPIC-W BRAIN Case
