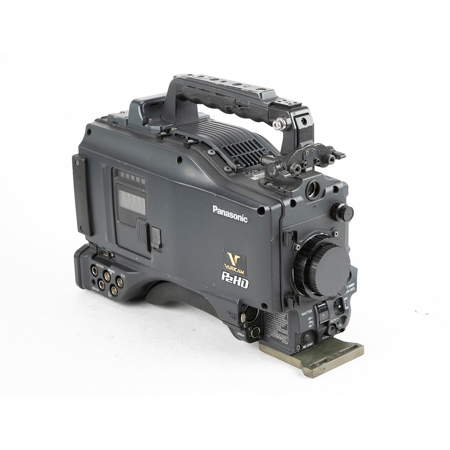

Used Panasonic AJ-HPX2700 2/3" 3-CCD 16:9 P2 HD VariCam Camcorder, 1280x720 Resolution, 3.5" LCD Monitor, USB 2.0

Item Note: Missing Shoulder Strap; Camera will not power on. May have additional issues. Cosmetic condition is Well Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE

SKU: US1884988 MFR: AJ-HPX2700GPJ
Earn VIP Reward Points

What`s in the box:

  • Panasonic AJ-HPX2700 2/3 3-CCD 16:9 P2 HD VariCam Camcorder
  • Front Audio Volume Knob ** Item Note: Missing Shoulder Strap; Camera will not power on. May have additional issues. Cosmetic condition is Well Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic AJ-HPX2700 2/3" 3-CCD P2 HD VariCam Camcorder - SKU#1884988 Specifications

  • Camera: CCD Elements

    CCD x 3 (2/3 inch interline transfer type, 1,000,000 pixel)

  • Camera: Video Format

    RGB 3CCD

  • Camera: Total Picture Elements

    1370 (H) x 744 (V)

  • Camera: Effective Picture Elements

    1280 (H) x 720 (V)

  • Camera: Optical Filters

    CC: 3200 K, 4300 K, 5600 K, 1/2 ND ND: CLEAR, 1/4 ND, 1/16 ND, 1/64 ND

  • Camera: Quantizing

    14 bits

  • Camera: Horizontal Drive Frequency

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz, 60 Hz)

  • Camera: Sampling Frequency

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz, 60 Hz)

  • Camera: Digital Signal Process

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz, 60 Hz)

  • Camera: Programmable Gain

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB, +12 dB, +15 dB, +18 dB, +21 dB, +24 dB, +27 dB, +30 dB

  • Camera: VFR

    1 to 60 fps (720/59.94p, 720/60p), 1 to 50 fps (720/50p)

  • Camera: Shutter Speed

    1/50 (50 Hz) sec., 1/60 sec., 1/100 (59.94 Hz) sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180 deg, 172.8 deg, 144 deg, 120 deg, 90 deg, 45 deg

  • Camera: Syncro Scan Sutter

    1/61.7 sec. to 1/7200 sec. (1080/59.94i, 720/59.94p)
    1/30.9 sec. to 1/3600 sec. (1080/29.97p, 720/29.97p)
    1/24.7 sec. to 1/2880 sec. (1080/23.98p (A), 1080/24p, 720/23.98p)
    1/51.4 sec. to 1/6000 sec. (1080/50i, 720/50p)
    1/25.7 sec. to 1/3000 sec. (1080/25p, 720/50p)

  • Camera: Lens Mount

    2/3 inch bayonet mount

  • Camera: Optical System

    F1.4 Prism

  • Camera: Sensitivity

    F10 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i)

  • Camera: Minimum Luminance

    1.24 lx (F 1.4, +30 dB) 0.021 lx (F 1.4, +30 dB, VFR=1 FRAME)

  • Camera: Video S/N

    54 dB (standard)

  • Camera: Registration

    Less than 0.03 % (whole zone, without lens distortion)

  • Memory Card Recorder: Recording Format

    AVC-Intra 100/AVC-Intra 50/DVCPRO HD Format switchable

  • Memory Card Recorder: Video Signal

    48 kHz/16 bits, 4CH (AVC-Intra/DVCPRO HD)
    48.048 kHz/16 bits, 4CH (720/60p only)

  • Memory Card Recorder: Recording Media

    P2 card

  • Recording Playback Time

    Approx. 32 min. (when using 32GB P2card AJ-P2C032RG, AVC-Intra 100 codec, recording in 1080/59.94p or 720/59.94p)

  • Digital Video: Sampling HD Frequency

    Y: 74.1758 MHz (59.94 Hz) /74.25 MHz (50 Hz), PB/PR: 37.0879 MHz (59.94 Hz) /37.125 MHz (50 Hz)

  • Digital Video: Quantizing

    AVC-Intra 100/AVC-Intra 50: 10 bits, DVCPRO HD: 8 bits

  • Digital Video: Video Compression

    AVC-Intra 100/AVC-Intra 50: MPEG-4 AVC/H.264 Intra Profile, DVCPRO HD: DV-Based Compression (SMPTE370M)

  • Digital Audio: Quantizing

    16 bits

  • Digital Audio: Frequency Response

    20 Hz to 20 kHz +/-1.0 dB (reference level)

  • Digital Audio: Dynamic Range

    More than 85 dB (1 kHz, AWTD)

  • Digital Audio: Distortion

    Within 0.1 % (1 kHz, reference level)

  • Digital Audio: Headroom

    18 dB/20 dB selectable

  • GENLOCK IN

    BNC x 1, 1.0Vp-p, 75 Ohms, (switchable to VIDEO IN or Return Video)

  • MONITOR OUT

    BNC x1 (switchable to VBS/HD SDI), VBS: 1.0 Vp-p, 75 Ohms, HD SDI: 0.8 Vp-p, 75 Ohms (SMPTE292M/296M standards)

  • HD SDI A OUT

    BNC x 1, 0.8 Vp-p, 75 Ohms (SMPTE292M/296M standards)

  • HD SDI B OUT

    BNC x 1, 0.8 Vp-p, 75 Ohms (SMPTE292M/296M standards)

  • TC IN

    BNC x 1, 0.5Vp-p to 8 Vp-p, 10 kOhms

  • TC OUT

    BNC x 1, low-impedance, 2.0 Vp-p+/-0.5 Vp-p

  • DVCPRO

    6 pin (Output), Transfer Speed: 400/200/100Mbps (selectable), Transfer Data: IEEE 1394-1995/1394a-2000, IEC61883-1,2, SPMTE396M standards, Control Command: AV/C Command Set standards

  • AUDIO IN

    XLR 3 pin x 2 (CH1/CH2), LINE/MIC/MIC+48 V switchable, LINE: -3 dBu /0 dBu /+4 dBu selectable
    MIC: -60 dBu/-50 dBu selectable, MIC+48 V: Phantom +48 V, -60 dBu/-50 dBu selectable

  • MIC IN

    XLR 5 pin x 1, -50 dBu/-40 dBu selectable, Phantom +48 V (ON/OFF)

  • WIRELESS IN

    25 pin, D-SUB, -40 dBu

  • AUDIO OUT

    XLR 5 pin x 1 (CH1/CH2), -3 dBu/0 dBu/+4 dBu selectable, balanced, low-impedance

  • PHONES OUT

    Stereo Mini Jack x 2

  • DC IN

    XLR 4 pin x 1, DC12 V (11 V to 17 V)

  • DC OUT

    4 pin, DC 12 V (11 V to 17 V), Max.1.5A

  • LENS

    12 pin

  • EVF

    20 pin

  • RCU

    10 pin for AJ-RC10G

  • GPS

    6 pin for AJ-GPS910G

  • USB (2.0)

    USB: 2.0, HOST: 4 pin Type-A, DEVICE: 4 pin Type-B

  • LCD Monitor

    3.5" LCD color monitor, 210,000 pixels

  • Power Supply

    DC 12 V (11.0 V to 17.0 V)

  • Power Consumption

    38 W

  • Temperature

    Operating Temperature: 0deg.C to +40deg.C (32deg.F to +104deg.F)
    Keeping Temperature: -20 deg.C to +60 deg.C (-4 deg.F to +140 deg.F)

  • Operating Humidity

    10% to 85 % (relative humidity)

  • Operating Time

    Approx. 120 min. (when using DIONIC90 battery)

  • Dimensions (W x H x D)

    137 x 209 x 318mm / 5.39 x 8.22 x 12.51"

  • Weight

    4.9kg / 10.8lbs (main unit only, excluding VF)

2 Accessories for Panasonic AJ-HPX2700 2/3" 3-CCD 16:9 P2 HD VariCam Camcorder, 1280x720 Resolution, 3.5" LCD Monitor, USB 2.0

  • All Accessories (2)
  • Cables & Adapters (1)
  • Headphones (1)

About Panasonic AJ-HPX2700 2/3" 3-CCD P2 HD VariCam Camcorder - SKU#1884988

Panasonic AJ-HPX2700 2/3" 3-CCD 16:9 P2 HD VariCam Camcorder
Panasonic’s VariCam series of camcorders have long established themselves an indispensable acquisition tool delivering the distinct, prized look of film. The Panasonic AJ-HPX2700 continues the tradition while pushing the limits of high-end digital cinematography, combining the exceptional reliability and fast workflow of solid-state technology with master-quality, 10-bit 4:2:2 AVC-Intra recording. The VariCam HPX2700 utilizes three 1-megapixel 2/3-inch CCD sensors to deliver native 16:9 P2 HD footage in a variety of frame rates and codecs.

Key Features

  • 720p / 1080p switchable
  • AVC-Intra 100, AVC-Intra 50 and DVCPRO HD codecs
  • AVC-Intra 100 provides master-quality, 4:2:2, 10-bit recording
  • Variable frames (1 to 60fps) and 1080 23.98/24psf HD-SDI output (when in 1080 mode)
  • AVC-Intra compatibility with leading NLEs, including Apple Final Cut Pro 6, Autodesk, Avid Media
  • Scan reverse allows for anamorphic lens adapter use
  • Can use with an HD lens adaptor for 35mm lenses
  • Chromatic Aberration Correction compensates for the inherent color deficiencies found in some lenses
  • Advanced gamma settings including Film-Rec
  • High F10 sensitivity at 2,000 lx, Minimum illumination of 0.021 lx (at 1 fps VFR and +30-dB gain-up)
  • Proxy data recording available (with the optional AJ-YAX800G board)
  • 48-kHz/16-bit, four-channel digital audio recording
  • Multiple system Interfaces, including three HD-SDI Outputs, USB 2.0

The Panasonic VariCam AJ-HPX2700 has long established itself as a truly unique and versatile 2/3-inch ENG production workhorse. Known for its reliability, and compatibility with existing post-production workflows, the AJ-HPX2700 can help professional videographers create beautiful images whether they’re shooting movies/short-films, documentaries, sports or event productions.

From the Manufacturer

The Panasonic AJ-HPX2700 P2 HD VariCam Camcorder has established itself as an indispensable acquisition tool delivering the distinct, prized look of film. The P2 HD VariCam series advances the art of high-end digital cinematography, combining the exceptional reliability and fast workflow of solid-state technology with master-quality, 10-bit 4:2:2 AVC-Intra recording; and the creativity of variable frame rates and shutter speeds to produce beautiful images for movies, documentaries and sports.

The VariCam 2700 offers intuitive operation with single-step variable frame rates ranging from 1 fps to 60 fps (in 720p mode), advanced gamma settings and essential interfaces including three HD-SDI outputs. Utilizing three 1-megapixel 2/3-inch native HD resolution CCDs, the VariCam 2700 records independent-frame 1080 and 720 images in AVC-Intra 100 and AVC-Intra 50 as well as in industry-standard DVCPRO HD. The solid-state HPX2700 offers you an ever-ready workhorse camera for a variety of professional HD shooting applications. The VariCam 2700 provides the reliability and fast workflow needed in today's demanding production environments. P2 HD provides immediate access to recorded video for on-set viewing and the benefits of metadata to more easily manage your content. With five 64GB P2 cards installed, the VariCam 2700 can record up to 400 minutes in AVC-Intra 100 at 1080/24p, 800 minutes in AVC-Intra 100 at 720/24p and 320 minutes in other AVC-Intra 100 or DVCPRO HD formats.

Panasonic AJ-HPX2700 2/3" 3-CCD P2 HD VariCam Camcorder - SKU#1884988 Features

  • 720p / 1080p switchable
  • AVC-Intra 100, AVC-Intra 50 and DVCPRO HD codecs
  • AVC-Intra 100 provides master-quality, 4:2:2, 10-bit recording
  • Offers choice of progressive/interlace HD video formats including 720 23.98p/24.00p/25p/29.97p / 50p / 59.94p, as well as 1080 23.98p/24.00p/25p/29.97p / 50i / 59.94i
  • Variable frames (1 to 60fps) and 1080 23.98/24psf HD-SDI output (when in 1080 mode)
  • AVC-Intra compatibility with leading NLEs, including Apple Final Cut Pro 6, Autodesk, Avid Media Composer Family Version 3.0, Avid NewsCutter Family version 7.0 and Quantel
  • Scan reverse allows for anamorphic lens adapter use (to create a 2.35:1 aspect image for wide-screen cinematic shooting) or for use with an HD lens adaptor for 35mm lenses
  • Dynamic Range Stretch to automatically suppress blocked shadows and blown highlights
  • Chromatic Aberration Correction compensates for the inherent color deficiencies found in some lenses
  • Advanced gamma settings including Film-Rec
  • 14-Bit Digital Processing with 12-Axis Color Correction
  • High F10 sensitivity at 2,000 lx, Minimum illumination of 0.021 lx (at 1 fps VFR and +30-dB gain-up)
  • Electronic shutter that offers seven shutter speeds up to a maximum 1/2000 second (plus a Half mode) and unique angle settings (similar to a film camera)
  • Proxy data recording available (with the optional AJ-YAX800G board)
  • Newly-designed grip handle with five threaded holes for mounting accessories and a 3-point locking viewfinder mount for precise adjustment (color viewfinder compatible)
  • 48-kHz/16-bit, four-channel digital audio recording
  • Multiple system Interfaces, including three HD-SDI Outputs, USB 2.0 and down-converted SD video output and IEEE 1394 output (DVCPRO HD codec recording only)

What's in the box:

  • Panasonic AJ-HPX2700 2/3 3-CCD 16:9 P2 HD VariCam Camcorder
  • Front Audio Volume Knob
  • Item Note: Missing Shoulder Strap; Camera will not power on. May have additional issues. Cosmetic condition is Well Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
