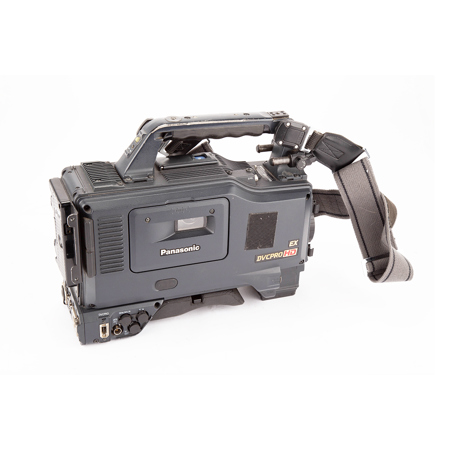

Used Panasonic AJ-HDX900 Professional High Definition Camcorder, 2/3" 3CCD Image Device, 700 TV Lines Horizontal Resolution

SKU: US1891699 MFR: AJ-HDX900PJ
Earn VIP Reward Points

What`s in the box:

  • Panasonic AJ-HDX900 Professional High Definition Camcorder
  • Viewfinder
  • Shoulder Strap

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$81.99

3 Year

$126.99

4 Year

$172.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic AJ-HDX900 Specifications

  • Continuous Rec Time

    About 120 min. with Anton/Bauer Dionic 80

  • CCD Elements

    2/3"h HD Progressive CCD

  • Picture Elements

    Total: 1370 (H) x 744 (V), Effective: 1280 (H) x 720(V)

  • Optical System

    F 1.4 prism system

  • Optical Filters

    CC: Cross, 3200K, 4300K, 6300K
    ND: CLEAR, 1/4ND, 1/16ND, 1/64ND

  • Quantization

    14 bits

  • Sampling Frequency

    74.1758MHz (59.94Hz), 74.25MHz (50Hz)

  • Programmable Gain

    3/0/+3/+6/+9/+12/+15/+18/+21/+24/+27/+30 dB

  • Super Gain

    +30/+36 dB

  • Digital Super Gain

    +6/+10/+12/+15/+20 dB

  • Line Mix Gain

    +6 dB (On/Off)

  • Shutter Speed

    1/60 (50Hz), 1/100 (59.94Hz), 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. and HALF

  • Syncro Scan Shutter

    1/60.3 to 1/249.8 sec. (59.94i, 59.94p)
    1/30.2 to 1/249.8 sec. (29.97p)
    /24.1 to 1/249.8 sec. (23.98p, 23.98pA)
    1/50.2 to 1/209.5 sec. (50i, 50p)
    1/25.2 to 1/209.5 sec. (25p)

  • Sensitivity

    F10.0 at 2000 Lux, 89.9% reflect

  • Minimum Illumination

    0.032 Lux at +36 dB +20 dB +6 dB Gain

  • Video S/N

    54 dB (typical)

  • Horizontal Resolution

    700 TV lines at centre

  • Registration Error

    Less than 0.03 % (whole zone, without lens distortion)

  • Lens Mount

    2/3" Bayonet type

  • VTR Section: Recording Format

    DVCPRO HD-LP

  • VTR Section: Tape

    6.35 mm wide metal tape (DVCPRO HD M cassette)

  • VTR Section: Tape Speed

    67.640 mm/s (59.94Hz), 67.708 mm/s (50Hz)

  • VTR Section: Max Rec Time

    Approx. 33 min (using AJ-HP33EMG)

  • VTR Section: FF/REW Time

    About 1.5 min. (using AJ-HP33EMG)

  • Video: Sampling Frequency

    Y: 74.1758 MHz (59.94Hz), 74.25MHz (50Hz)
    PB/PR: 37.0879 MHz (59.94Hz), 37.125 MHz (50Hz)

  • Video: Quantization

    8 bits

  • Video: Compression Method

    DCT and Variable-length Coding

  • Video: Compression Ratio

    1/6.3 (1080-50i/1080-25p), 1/6.7 (others)

  • Video: Error Correction

    Reed Solomon Product Code

  • Video: Bit Rate

    100 Mbps

  • Video: Band Width

    Y: 20MHz, PB/PR: 10MHz

  • Audio: Sampling Frequency

    48 kHz (sync. with video)

  • Audio: Quantization

    16 bits

  • Audio: Frequency Response

    20 Hz to 20 kHz, +/-1.0 dB (reference level)

  • Audio: Dynamic Range

    More than 85 dB (1kHz, AWTD)

  • Audio: Distortion

    Within 0.1% (1 kHz, reference level)

  • Audio: Head Room

    20 dB (AJ-HDX900P), 18 dB (AJ-HDX900E)

  • Mic In

    XLR-5pin x 1, Stereo, -40/-50 dBu, Phantom +48 V

  • Audio In

    XLR-3pin x 2 (CH1/CH2), LINE/MIC/MIC+48 V switchable
    LINE: -3/0/+4 dBu, MIC: -60/-50 dBu, MIC+48V: -60/-50 dBu

  • Wireless In

    25pin D-sub, -40 dBu

  • Genlock In

    BNC x 1, 1.0 Vp-p, 75Ohms

  • Timecode In

    BNC x 1, 0.5 to 7.0 Vp-p, high impedance

  • Video Out

    BNC x 1, HD-SDI/SD-SDI/Composite switchable
    HD-SDI/SD-SDI: 0.8 Vp-p, 75Ohms
    Composite: 1.0 Vp-p, 75Ohms

  • Monitor Out

    BNC x 1, HD-SDI/HD-Y switchable
    HD-SDI: 0.8Vp-p, 75Ohms, HD-Y: 1.0Vp-p, 75Ohms

  • Audio Out

    XLR-5pin x 1, CH1/CH2, -3/0/+4 dBu

  • Timecode Out

    BNC x 1, 2.0 Vp-p, low impedance

  • Phones

    Stereo mini jack x 2

  • Lens

    12-pin x 1

  • Remote

    10-pin x 1, for AJ-RC10G

  • DC In

    XLR-4pin, DC11V to 17 V

  • DC Out

    DC Out: 4-pin x 1, DC11V to 17 V, max. 1.5 A

  • EVF

    20-pin x 1 (59.94Hz/50Hz switchable)

  • DVCPRO

    6-pin x 1, IEEE 1394 standard digital Interface

  • GPS

    6-pin x 1, for AJ-GPS900G

  • Receiver

    UniSlot Wireless Receiver

  • Power Supply

    DC 12 V (11 V to 17 V)

  • Power Consumption

    36 W

  • Operating Humidity

    10 % to 85 %

  • Operating Temperature

    32deg.F to 104deg.F (0deg.C to +40deg.C)

  • Dimensions

    5.06" x 10.68" x 13" (129 x 271 x 329 mm)

  • Weight

    9.9 lbs (4.5 kg)
    16.7 lbs (7.6 kg) in full-operation

About Panasonic AJ-HDX900 Professional High Definition Camcorder - SKU#1891699

The Panasonic AJ-HDX900 multi-format DVCPRO HD camcorder places full production-quality HD within reach of a wider range of budgets measured in both dollars and euros! An indispensable, cost-effective tool for global content creators, the AJ-HDX900 DVCPRO HD camera records pristine 100Mbps HD images in any of eleven video formats, encompassing 60Hz and 50Hz production.

An advanced HD version of Panasonic's highly-popular AJ-SDX900 DVCPRO50 Cinema camera, which is a mainstay of independent features,documentaries and reality television production, the AJ-HDX900 raises the bar with the addition of the well-established DVCPRO HD codec and a multi-format recording system that supports 1080 59.94i/50i/29.97p/25p/23.98p/23.98pA and 720 59.94p/50p/29.97p/25p/23.98p.The versatile camcorder will be an invaluable tool for digital cinematography, cable and television production in any format, sports and events, for globetrotting documentarians and feature crews, and for the rental companies that serve them.The Panasonic AJ-HDX900 DVCPRO HD Camcorder provides full 4:2:2 HD production quality And format versatility and features 2/3" 3-CCD, IEEE 1394, 50Hz/60Hz Shooting, Cine-Like Gamma.

The AJ-HDX900 features a native 16:9, 2/3" HD, 1-million pixel 3-CCD system that assures stunning images and produces a high sensitivity of F10 (at 2000 lux) and outstanding low-light shooting down to 0.032 lux (at+62 dB gain). It is equipped with 14-bit A/D DSP circuits that provide optimum picture quality, color reproduction and luminance gradation. Utilizing the advanced DVCPRO HD codec, the AJ-HDX900 offers superior 4:2:2 color sampling and independent frame compression. The well-balanced camcorder offers impressive built-in, image-enhancing features including three Cine-like gamma modes to replicate the look and feel of film. The AJ-HDX900 is compatible with a wide range 2/3" quality lenses and accessories

The AJ-HDX900's IEEE 1394 digital output helps lower the cost of HD production by allowing nonlinear editing systems or other VTRs (such as Panasonic's new AJ-HD1400) to capture DVCPRO HD native video with no loss of image quality. It also produces a backup copy by interfacing with an external device (VTR or Direct To EditTM (DTE) recorder) while recording.

The AJ-HDX900 uses DVCPRO HD-Ex 9-micron recording to record 33 minutes on a DVCPRO medium-size cassette, and records 48kHz/16-bit digital audio on all four channels. The camera provides as standard a pre-recording function that permits it to capture spontaneous scenes a shooter might otherwise miss. A standard HD SDI output is included for monitoring and line recording, and a down converter is built-in to produce a SD output, eliminating the need for an expensive SDI monitor.

Other standard features include: two 4-position optical filters (ND: clear, ¼, 1/16, 1/64; CC: Cross, 3200K, 4300k and 6300K); four user scene files, three user-customized buttons; electronic shutter (1/100 to 1/2000 sec.) with synchro scan shutter (1/60.3 to 1/249.8 sec.); Remote Control Unit support; an easy-slide shoulder pad that adjusts 1.18" in 10-steps; and a 3-point locking viewfinder mount for precise adjustment.

Panasonic AJ-HDX900 Professional High Definition Camcorder - SKU#1891699 Features

  • Full-size 2/3" CCD block provides superb low-light performance and compatibility with all manufacturers 2/3" lenses for ENG, EFP and digital cinema production
  • Multi-format recording system that supports 1080 at 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98pA and 720 at 59.94p, 50p, 29.97p, 25p, 23.98p
  • 14-bit A/D DSP circuits that provide optimum picture quality, color reproduction and luminance gradation
  • Superior 4:2:2 color sampling and independent frame compression
  • Records for 33 minutes on a DVCPRO medium-size cassette with 48kHz/16-bit digital audio on all four channels
  • Three CineGamma modes to replicate the look and feel of film
  • Built-in IEEE 1394 digital output helps lower the cost of HD production by allowing you to directly transfer HD video to nonlinear editing systems or other VTRs
  • Standard HD SDI output is included for monitoring and line recording
  • Built-in down converter produces a SD output, allowing the use of low-cost SDI accessories
  • Outstanding low-light shooting down to 0.032 lux (at+62 dB gain)
  • Compatible with a wide range 2/3" quality lenses and accessories
  • Two 4-position optical filters (ND: clear, 1/4, 1/16, 1/64; CC: Cross, 3200K, 4300k and 6300K)
  • Electronic shutter (1/100 to 1/2000 sec.) with synchro scan shutter (1/60.3 to 1/249.8 sec.)
  • Teams with Panasonic's new AJ-HD1400 compact DVCPRO HD VTR to form at high-performance, mobile acquisition-through-editing system

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Panasonic AJ-HDX900 Professional High Definition Camcorder
  • Viewfinder
  • Shoulder Strap
