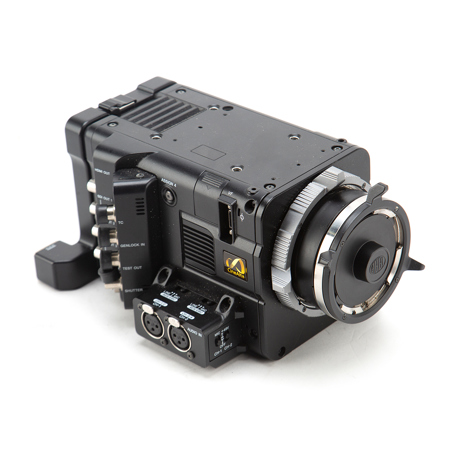

Used Sony PMW-F55 CineAlta 4K Digital Cinema Camera Kit - Includes: Sony CBK-55PD ProRes and DNxHD Codec Board & Custom Shipping Case.

Item Note: Missing CD-ROM

SKU: US1894072 MFR: PMW-F55
Earn VIP Reward Points

What`s in the box:

  • Sony PMW-F55 CineAlta 4K Digital Cinema Camera
  • PL-Mount Adapter
  • Battery Adapter
  • Audio Input Box ** Item Note: Missing CD-ROM **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$137.99

3 Year

$215.99

4 Year

$292.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony PMW-F55 Specifications

  • Sensor Type

    Super 35mm equivalent single-chip CMOS with global shutter

  • Pixels

    Total: 11.6 MP
    Effective: 8.9 MP

  • Sensitivity

    Luminance: 2000 lx, 89.9% reflectance
    Video Gamma: T11@24p (3200K light source)
    S-Log2 Gamma: ISO 1250 (D55 Light source)

  • Dynamic Range

    14 stops

  • Signal to Noise Ratio

    57dB (Video Gamma, 24p, Noise Suppression OFF)

  • Video Recording Format

    MPEG-2 Long GOP
    HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL

  • Audio Recording Format

    Linear PCM (2 ch, 24-bit, 48-kHz)

  • Recording Modes XAVC

    XAVC 4K: 4096 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p
    XAVC QFHD: 3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p

    XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p

  • Recording Modes MPEG

    MPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p
    MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p
    MPEG2 HD: 1280 x 720 at 50p, 59.94p

  • Shutter Speed

    1/24s to 1/6,000s

  • Shutter Angle

    4.2 - 360½(electrical shutter)

  • Slow Shutter

    2, 3, 4, 5, 6, 7, and 8 frame accumulation

  • Slow & Quick Motion Function

    XAVC 4K/QFHD: 1-60p (NTSC)
    XAVC 4K/QFHD: 1-50p (PAL)
    XAVC HD/2K: 1-180p (NTSC), 23.98p/29.97p with option
    XAVC HD/2K: 1-150p (PAL), 25p with option
    XAVC HD: 1-60p (NTSC)
    XAVC HD: 1-50p (PAL)

  • White Balance

    Preset (3200K, 4300K, 5500K), Memory, ATW

  • Gain

    -3, 0, 3, 6, 9, 12, 18 dB, AGC

  • Gamma Curve

    Standard (x6)
    HG1, HG2, HG3, HG4, HG7 and HG8
    S-Log2 Gamma

  • Memory Cards

    SxS (x2, ExpressCard 34 slots)
    SD card slot (x1)

  • Video Output

    HD-Y or HD Sync (tri-level) V1.0
    Analog Composite (VUP)

  • HD-SDI Output

    HD mode: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
    4K mode: SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable

  • Timecode

    TC IN/OUT switchable (x1)

  • Genlock

    BNC input (x1)

  • HDMI

    A Type output (x1)

  • Audio Input

    Input: XLR-type 3-pin with Line/Mic/Mic +48V/AES/EBU selectable (x2, female)

  • Audio

    Output: phono jack (CH-1, CH-2)
    Headphone: Stereo mini jack (x1)

  • Speaker

    Speaker: monaural

  • USB

    USB device, Mini-B (x1)
    USB host, type-A (x1)

  • Wi-Fi

    USB host, type-A (x1)

  • DC Output

    4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter

  • Remote

    8-pin (x1)

  • Lens Mount

    FZ-mount, PL-mount (with supplied adapter)

  • Built-in Filters

    Clear, 0.9 (1/8 ND), 1.8 (1/64 ND)

  • Power Requirements

    DC 12 V (11 V to 17.0 V)

  • Power Consumption

    Approx. 25 W (while recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)

  • Battery Operating Time

    With BP-FL75: approximately 150 minutes
    With BP-GL95A: approximately 210 minutes

  • Operating Temperature

    32 ~ 104½ F (0 ~ 40½ C)

  • Storage Temperature

    -4½ ~ +140½ F (-20½ ~ +60½ C)

  • Dimensions

    Without protrusions: 7.13 x 7.88 x 12.25" (15.1 x 18.9 x 21 cm)

  • Weight

    Body only: 4.88 lb (2.2 kg)

Related Articles & Videos

Shooting The Holiday Blockbuster: “The Force Awakens” and the History of Star Wars

Shooting The Holiday Blockbuster: “The Force Awakens” and the History of Star Wars

Now that "The Force Awakens," the latest entry in George Lucas' epic series has been released, here is a brief history of the cinematographers behind the "Star Wars" films.

Read more
4K Buying Guide And Tips: Finale

4K Buying Guide And Tips: Finale

There was so much gear announced at NAB that it is just shipping out, with a ton of gear that has yet to even ship. 4K video was the main theme with a slew of camera announcements and delivery. This will be remembered as the year of 4K's real arrival...

Read more
AdoramaPro Thursdays: OnSet Event Demonstrates Approaches To Advertising Photography

AdoramaPro Thursdays: OnSet Event Demonstrates Approaches To Advertising Photography

Yesterday, Adorama’s very own Daniel Norton hosted another OnSet event at our 18th street location in New York City. By the way, if this hasn’t hit your radar please check it out pronto as Daniel delivers his unique ...

Read more
F5 and F55 Firmware Update Now Available

F5 and F55 Firmware Update Now Available

Sony releases the latest firmware update for the F5 and F55 CineAlta cameras.

Read more

18 Accessories for Sony PMW-F55 CineAlta 4K Digital Cinema Camera Kit - Includes: Sony CBK-55PD ProRes and DNxHD Codec Board & Custom Shipping Case.

  • All Accessories (18)
  • Digital Cinema Lenses (7)
  • Cables & Adapters (1)
  • Adapters & Mounts (2)
  • Headphones (1)
  • Microphones (2)Required Item
  • Bags & Cases (2)
  • Stabilizers, Supports & Rigs (3)

About Sony PMW-F55 CineAlta 4K Digital Cinema Camera Kit - Includes: Sony CBK-55PD ProRes and DNxHD Codec Board & Custom Shipping Case.

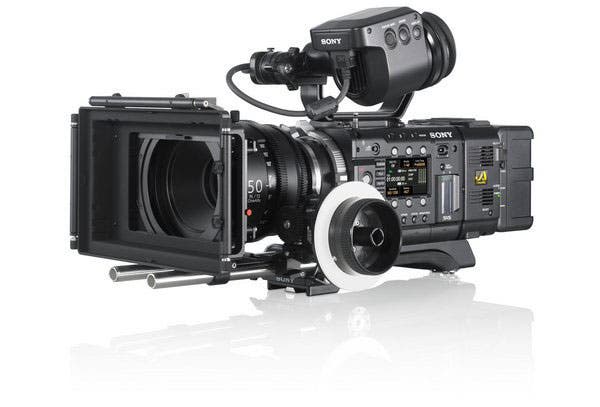

Sony PMW-F55 CineAlta 4K Digital Cinema Camera Kit - Includes: Sony CBK-55PD ProRes and DNxHD Codec Board & Custom Shipping Case. Features

  • The PMW-F55's Sony 4K image sensor captures a true 4K 4096 x 2160 DCI-standard cinema image. Its 4K CMOS sensor features 11.6 megapixels (total) and 8.9 megapixels (effective). The "Frame Image Scan" technology used by F55 sensor eliminates flash band and image artifacts common to conventional CMOS sensors.
  • The sensor captures with an impressive 14 stops of exposure latitude with excellent sensitivity and low noise. The F55 image sensor is also equipped with the same advanced color filter array technology used in Sony's flagship F65, which delivers color gamut that's wider than 35mm motion picture print film.
  • The F55 CineAlta camera provides the choice recording of three formats to SxS cards - MPEG-2, 50Mbps HD422 plus two 10-bit mastering formats: XAVC at HD, 2K & 4K resolution, plus SR Codec (HDCAM SR) at 440Mbps or 220Mbps. 16-bit Linear 2K/4K RAW recording to the optional AXS-R5 recorder preserves the greatest latitude for color correction.
  • Sony's 16-bit recording captures 16x more tonal values than 12 bit RAW. Thus it's the ideal acquisition format for the 16-bit linear Academy Color Encoding System (ACES) workflow.
  • The F55 features high frame-rate on-board XAVC HD and 4K recordings up to 60 fps, plus a free planned upgrade to XAVC, QFHD up to 60 fps in addition to XAVC 2K/HD up to180 fps. It also offers 240 fps 2K RAW with the optional AXS-R5 outboard recorder and a planned upgrade, achieving the highest frame rates most productions will need.
  • Simultaneous RAW and onboard camera SxS recording provides a coordinated off-line, on-line workflow with simultaneous recording to internal SxS cards and the optional AXS-R5 RAW recorder. For seamless conforming in post, you get matching time code, start frame, stop frame, and file names.
  • The F55 is equipped with Sony's large diameter, robust, FZ-mount which is compatible with virtually all 35mm DSLR, and Cine lenses with simple inexpensive lens adapters. It ships with a PL-mount compatible with Cooke/i and Arri LDS.
  • The F5/F55 excellent camera ergonomics enable comfortably shooting for long periods of time. The camera head, viewfinder and shoulder mount can be adjusted to fit any shooter and optimized for different lens configurations. Their clean, flexible architecture enables shooting in many configurations.

Warranty Information

This used item has a FREE 180-day warranty. See details.
