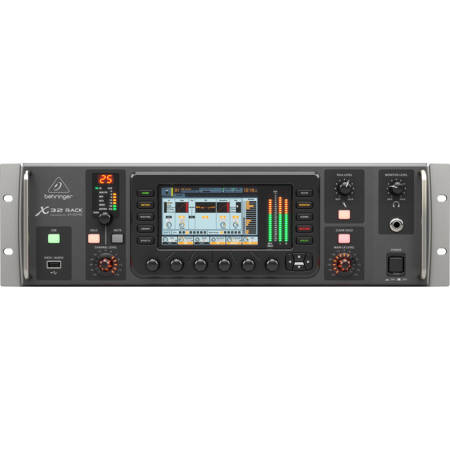

Used Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer with 16 Programmable MIDAS Preamps, USB Audio Interface and iPad/iPhone Remote Control

SKU: US1894793

This item is no longer available.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Behringer X-32 RACK Specifications

  • Number of Channels

    32 input channels
    8 aux in channels
    8 FX return channels
    16 buses, 6 matrices
    Main LRC

  • Effects Engine

    Internal:
    8 true-stereo
    16 mono

  • Scene File Memory

    100 total recall scenes (including preamp and fader)

  • Signal Processing

    40-bit floating point

  • Conversion

    Cirrus Logic A/D CS5368, D/A CS4385
    24-bit at 44.1 / 48 kHz
    114 dB dynamic range

  • Latency Timings

    Local I/O: 0.8 mS (local in > console processing > local out)
    Networked I/O: 1.1 mS (stage box in > console processing > stage box out)

  • Total I/O Channels

    150 / 158

  • Mic/Line Inputs

    16 x XLR balanced

  • Line Outputs

    8 x XLR balanced

  • AUX Inputs

    6 x 1/4" TRS
    2 x RCA line-level (1 x L/R)

  • AUX Outputs

    6 x 1/4" TRS
    2 x RCA line-level (1 x L/R)

  • Talkback Mic Input

    1 x XLR (no internal mic)

  • Monitor Outputs

    2 x 1/4" TRS balanced

  • Headphone Output

    1 x 1/4" TRS stereo

  • AES50 Ports

    2 x SuperMAC

  • Expansion Port

    1 x 32-channel I/O card, various standards available

  • P-16 Connector

    1 x Ultranet (no power supplied)

  • MIDI In/Out

    1 / 1

  • Ethernet Port

    1 x RJ45 (for remote control)

  • USB Port

    1 x USB 2.0 type A (for audio and data import/export)

  • Designer

    MIDAS

  • THD + Noise

    < 0.006% A-weighted (20 dB gain, 0 dBu out)

  • Input Impedances

    5kOhms unbalanced
    10kOhms balanced

  • Maximum Input Level

    +23 dBu without clipping

  • Phantom Power

    +48V, switchable per channel

  • Equivalent Input Noise

    -128 dBu (input shorted)

  • CMRR

    > 70 dB at 20 dB gain (typical) 80 dB at 40 dB gain

  • LCD Screen

    5", 800 x 480, 262k color TFT (Main Screen)

  • Power Supply

    100 to 240V (50/60 Hz) switch-mode auto range

  • Power Consumption

    120W

  • Dimensions (W x D x H)

    19 x 11.3 x 5.2" / 482.6 x 287.02 x 132.08mm

  • Weight

    14.4lbs / 6.53kg

Related Articles & Videos

Home Recording Studio Equipment Setup for Beginners

Home Recording Studio Equipment Setup for Beginners

Looking to create a home studio but don’t know where to start? We cover the essential equipment for setting up your own home recording studio.
Read more

30 Accessories for Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer with 16 Programmable MIDAS Preamps, USB Audio Interface and iPad/iPhone Remote Control

  • All Accessories (30)
  • Mixing & Sound Processing (2)
  • Cables & Adapters (23)
  • Headphones (5)

About Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer with 16 Programmable MIDAS Preamps, USB Audio Interface and iPad/iPhone Remote Control

An epitome of innovation and versatility, the Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer is engineered to transform your live mixing experience. This powerhouse integrates 16 programmable MIDAS preamps renowned for their pristine audio quality, ensuring that your recordings capture every nuance with exceptional clarity.

The X32 Rack is designed for a modern workflow, offering a unique approach to mixing with its ability to be controlled remotely via iPad and iPhone apps. This feature allows sound engineers and producers to adjust mixes from anywhere in the venue, providing unprecedented flexibility and convenience. The high-resolution 5" color TFT display offers direct control over all parameters, while the free iOS apps enable professional-grade remote operation without the need for a host computer.

Connectivity is at the heart of the X32 Rack, with dual AES50 ports that support up to six S16 digital snakes, expanding your I/O capabilities to meet the demands of any live performance or studio session. The mixer's 40 channels, 25 buses, and support for up to 152 signal sources make it a formidable tool for audio management.

The X32 Rack doesn't just excel in live scenarios; it's also a formidable studio recording interface. With its 8 powerful stereo FX engines and ultra-flexible routing options, it provides all the processing power needed for intricate mixes. The inclusion of Tracktion, one of the world's fastest and most user-friendly Digital Audio Workstations (DAW), offers a seamless recording, editing, and mixing experience, complete with dynamic automation, unlimited track count, and support for VST and AU plug-ins.

Whether you're composing, recording, mixing, or sharing your music, the Behringer X32 Rack is equipped to handle it all with grace and efficiency. Its robust build and comprehensive feature set make it an ideal choice for audio professionals who require reliability and top-tier performance both now and as their needs evolve. With the X32 Rack, embrace the future of digital mixing and take your audio production to new heights.

Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer with 16 Programmable MIDAS Preamps, USB Audio Interface and iPad/iPhone Remote Control Features

  • Remote-controllable via iPad/iPhone with free iOS apps for on-the-fly mixing adjustments
  • 16 programmable MIDAS preamps for studio-quality sound in live environments
  • Expansive connectivity with dual AES50 ports supporting up to six S16 digital snakes
  • 40 channels, 25 buses, and up to 152 signal sources for comprehensive audio management
  • 8 stereo FX engines with ultra-flexible routing options for creative audio processing
  • Integrated Tracktion DAW for an all-in-one recording, editing, and mixing solution
