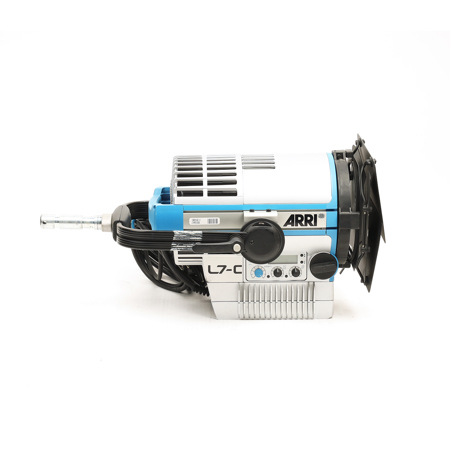

Used ARRI L7-C Color LED Fresnel with Hybrid Cooling, Stand Mount, 2700 - 10000K Color Range, 220W Rating

SKU: US1902143 MFR: L1.31330CA
Earn VIP Reward Points

What`s in the box:

  • ARRI L7-C Color LED Fresnel
  • 4-Leaf Barndoor
  • Firmware Ver. 2.00.0

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

ARRI L7-C Specifications

  • Rating

    220W

  • Color Range

    Color tune-able: 2700 - 10000K
    Green - Magenta adjustment, full gamut color mixing

  • CRI

    CRI > 90, CQS > 90

  • Beam Angle

    15 - 50deg., continuously focusable

  • Operating Voltage

    90 - 264V AC, 50 - 60Hz

  • Dimming

    Integrated, 0 - 100% Continuous, 16-bit

  • Weather Resistance

    IP54 rated, can withstand rain and splashing water

  • Cooling

    Passive: -68 - 95deg.F (-20 to +35deg.C)

  • Mount

    Stand mount
    Sliding stirrup, high strength tilt lock, 1 1/8" (28.5 mm) junior stud receiver

  • Control

    5-Pin DMX + RDM, on-board controller, USB

  • Dimensions (H x W x D)

    Passive Cooling: Flood - spot focus: 11.8 x 8.7 x 14.8 - 18.9" (300 x 220 x 375 - 480 mm)
    Active Cooling: Flood - spot focus: 300 x 220 x 328 - 433 mm (11.8 x 8.6 x 12.9 - 17.0 in
    Lens diameter: 7.0" (177.8 mm)

  • Weight

    Passive Cooling: 24 lbs (10.8 kg)
    Active Cooling: 6.5 kg / 14.3lbs

About ARRI L7-C Color LED Fresnel with Hybrid Cooling - SKU#1902143

The Arri L7-C Color LED Fresnel (Stand Mount) is part of is at the vanguard of a new generation of lighting equipment that can be seamlessly integrated into the studio or onto the set without sacrificing features or performance.

The key characteristic of any Fresnel is flood to spot capability and the L7-C meets and exceeds expectations with an impressive beam angle of 15-50deg. There's simply no learning curve or accommodation to be made when swapping out L7s fixture for fixture with standard Fresnels. In fact, you're not going to be moving them around or juggling scrims in high places thanks to the 100 - 0% on-board dimming.

The L7-C is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 2700K to ice-blue 10000K. The on-board controller allows manual intensity control as well as color temperature and +/- green. Specific color shades and skin tones can be matched through the full gamut color mixing feature. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. And the L7-C will be seen but not heard thanks to its dead quiet passive cooling system. While inclement weather might annoy the talent it won't kill your light since L7-C has an IP54 rating making it impervious to falling rain and splashing water.

The L7-C LED source produces the equivalent of a 750W tungsten light while drawing only 220W for a savings of a whopping 75% over similar output tungsten lights. And low heat means lower AC bills in the studio. You can actually run 9 L7s off of a 20A, 110V outlet as opposed to two 1000W or three 650W standard fixtures. When it comes to performance and features, the L7-C might just be the perfect light source.

ARRI L7-C Color LED Fresnel with Hybrid Cooling - SKU#1902143 Features

  • Familiar But Revolutionary: Quality of light begins with the field. Smooth intensity, uniform color, even illumination: all are traits shared by the L-Series and conventional Arri Fresnels
  • Focusability: A key element of the versatility of traditional Fresnels is the ability to spot and flood the beam as needed. Whether it's a flood field for a pullback shot or a tight spot for a bright highlight, the continuous focusability of the L-Series performs lives up to your expectations
  • Versatile, Controllable Beam: Whether shaping the beam to isolate talent and set elements or cutting the field to eliminate spill light, controllability is crucial to lighting
  • Even Light Field: Clear, defined shadows have traditionally have only been a trait of single source tungsten and daylight fixtures
  • Color: Vibrant, Full-spectrum Lighting: With the L7-C, fully tune-able white light can be adjusted for different skin tones, camera sensors and mixed-light environments, while specific color shades can be matched through full gamut color mixing
  • Passive Cooling: To satisfy the rigorous sound requirements of modern broadcast studios, the groundbreaking L-Series passive cooling system incorporates no moving parts or fans and is therefore completely silent
  • Weather Protection: One of the most significant accomplishments in terms of the L7's robustness is the IP54 rating for weather resistance
  • Focus Knobs: True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reaching around the fixture
  • Sliding Stirrups: The ARRI sliding stirrup design enables precise adjustment of the fixture's center of gravity, to compensate for front-end accessories. It also creates the option of pulling the fixture back and reducing its hanging height
  • Yoke: With an extremely slim profile, the extruded aluminum yoke provides high strength without added weight. An optional pole-operated yoke allows full operation of pan, tilt and focus from the floor and is therefore a popular choice for many studios
  • Tilt Lock: The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them
  • DMX Control: For broadcast studios, remote fixture control is of paramount importance and all functions of the L7 are controllable through DMX
  • On-board Control: The on-board controller has manual intensity adjustment and additional controls for color temperature and plus/minus green, which can be switched to manipulate hue and saturation at the touch of a button
  • Energy Savings: L-Series fixtures reduce electricity usage by 75% and their LED light engines last 200 times longer than normal bulbs, when compared to conventional tungsten Fresnels
  • Location Applications: Lighting teams working on location will love the versatility they can achieve in small to medium-size packages. Nine ARRI L7 Fresnels can be run off a single 20 A, 110V outlet, as opposed to only two 1000W or three 650 W tungsten Fresnels
  • Upgradeable Technology: The L7 is an expansible platform designed to adapt with the latest enhancements in LED chip performance. The light engine is fully upgradeable, ensuring that the fixtures can take advantage of technology advances as and when they happen

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • ARRI L7-C Color LED Fresnel
  • 4-Leaf Barndoor
  • Firmware Ver. 2.00.0
