Used Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Touchscreen Monitor, 1920x1200, Bare Bones Version

Item Note: Screen is cracked; touchscreen does not function; may have additional issues. Cosmetic Condition is Heavy Use. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE. Missing Master Caddy II; Soft Shell Case

SKU: US1902183 MFR: ATOMSHGBB1
Earn VIP Reward Points

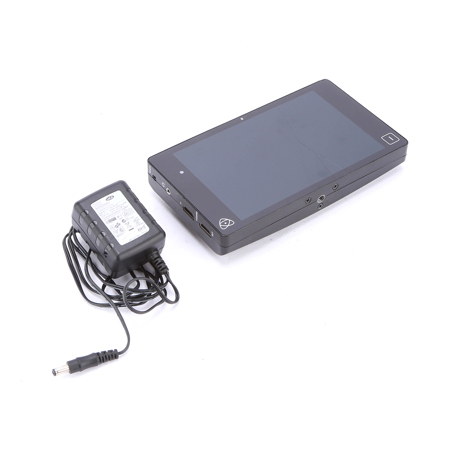

What`s in the box:

  • Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Touchscreen Monitor
  • AC Adapter (120 VAC to 9 VDC 3A) ** Item Note: Screen is cracked; touchscreen does not function; may have additional issues. Cosmetic Condition is Heavy Use. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE. Missing Master Caddy II; Soft Shell Case **
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-09-13T17:25:33

Rated 5 out of 5

Great Product

Has a lot of extras and works as described. Good buying experience.

Glen L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Atomos Shogun Specifications

  • Display: Type

    7.1" / 18.03cm IPS capacitive touchscreen

  • Display: Resolution

    1920 x 1200
    325 ppi

  • Display: Aspect Ratio

    Native: 16:9

  • Display: Brightness

    400 nit

  • Display: Frequency

    48 to 60 Hz

  • Display: Viewing Angle

    179 deg.

  • Display: Color Space

    Rec 709 (HDTV)

  • Display: LUT Support

    User defined 3D LUTs available

  • Interface: Inputs

    1x HDMI In
    1 x 12G-SDI In, BNC
    1 x Genlock In, BNC
    1 x LANC In
    2x XLR In (optional LEMO breakout cable required)

  • Interface: Outputs

    HDMI Out
    1 x 12G-SDI Out, BNC
    2x XLR Out (optional LEMO breakout cable required)
    1 x 3.5 mm audio output jack

  • Interface: USB

    USB

  • Supported Signal

    Input: 10- / 8-bit 4:2:2 (dependent on video source)
    Output: 10- / 8-bit 4:2:2 (dependent on video source)

  • Supported Resolutions

    UHD 4K (3840 x 2160): 2160p 24/25/30
    HD (High Frame Rate): 1080p120, 1080p60/50, 720p120
    HD: 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94, 720p50

  • Supported Loop-Out Formats

    HDMI to HDMI:
    720p 50/60/120
    1080i 50/60
    1080p 24/25/30/50/60/120
    2160p 24/25/30

    SDI to SDI:
    720p 50/60
    1080i 50/60
    1080psf 24/25/30/50/60/120
    1080p 24/25/30/50/60/120
    2160p 24/25/30

  • Video Signal Conversion

    HDMI to SDI:
    720p 50/60
    1080i 50/60
    1080p 24/25/30/50/60/120
    2160p 24/25/30

    SDI to HDMI:
    720p 50/60
    1080i 50/60
    1080p 24/25/30/50/60/120
    2160p 24/25/30

    4K Down-Conversion
    Down-Converts 4K input to 1080p at matching frame rate (enable via "input" menu)

  • Encoding Formats

    UHD 4K (3840 x 2160):
    Color Sampling: 4:2:2 at 8- or 10-bit Apple ProRes: HQ, 422, LT
    Avid DNxHR: HQX, HQ, SQ, LB

    Full HD (1920 x 1080) Color Sampling: 4:2:2 at 8- or 10-bit
    Apple ProRes: HQ, 422,LT
    Avid DNxHD: 220/220x, 145, 36

  • Pulldown Conversion

    50i from 25PSF > 25P (2:2 Pulldown)
    60i from 30PSF > 30P (2:2 Pulldown)
    60i from 24P > 24P (3:2 Pulldown)
    60i from 23.98P > 23.98P (3:2 Pulldown)

  • Supported Audio Formats: HDMI

    2 or 8-channel, up to 24-bit (camera dependent)

  • Supported Audio Formats: SDI

    Up to 12-channel, 48 or 96 kHz, up to 24-bit (camera dependent)

  • Supported Audio Formats: Dynamic Range

    > 90dB

  • Supported Audio Formats: Signal Level

    Maximum: +24dBu

  • Supported Audio Formats: Gain

    Maximum Analog Gain: +40 dB
    Left and right channel gain independently adjustable via "audio options" menu

  • Supported Audio Formats: Phantom Power

    +48 V phantom power via XLR inputs

  • Remote Operation: HDMI

    Auto HDMI trigger
    Supported Protocols: Canon, Sony, Atomos Open Standard

  • Remote Operation: SDI

    SDI trigger camera selectable

  • Remote Operation: LANC

    Supports master and slave configuration

  • Supported Media

    4K / HD High Frame Rate (50/60/120p):
    CFast
    2.5" SSD
    Raided HDD (5,400 to 10,000 rpm)

    HD (30p and less):
    CFast
    2.5" SSD
    Raided HDD (5,400 to 10,000 rpm)

  • Master Caddy Dock

    Interface: 2.5" SATA to USB 2.0/3.0

  • Supported Applications

    Apple Final Cut Pro X / Final Cut Pro 7
    Avid Media Composer 5.0+
    Adobe Premiere Pro 5.5+
    Grass Valley EDIUS 6.0+
    Sony Vegas Pro 10+
    Lightworks
    Autodesk Smoke 2015+

  • Power Consumption

    6.8 to 11 W

  • Power Requirements

    Battery: 6.2 to 16.8 VDC

  • Supported Batteries

    Sony NP series
    Nikon ENL6
    Canon EL6

  • Battery Life

    2600 mAh: up to 3 hours
    5200 mAh: up to 5 hours
    7800 mAh: up to 8 hours

  • Storage

    2x SSD or HDD (single or raided)

  • Dimensions

    Shogun: 7.7 x 4.3 x 1.9" / 195.58 x 109.22 x 48.26mm
    Master Caddy II: 3 x 4.1 x 0.5" / 76.20 x 104.14 x 12.70mm

  • Weight

    Without batteries & HDD: 1lbs / 0.45kg
    With Batteries & HDD: 1.4lbs / 0.64kg

Related Articles & Videos

On the Road with Photographer/Filmmaker Cyrus Sutton

On the Road with Photographer/Filmmaker Cyrus Sutton

I first moved into a van when I was twenty. Twelve years later, I regard it as the best decision of my life. It’s allowed me to see the world, meet new people, escape college debt, and save money for a down payment on some farm land.  My life is...

Read more

About Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Touchscreen Monitor - SKU#1902183

FEATURED REVIEWS

Great Product

By Glen L.

Has a lot of extras and works as described. Good buying experience.

Record 4k, Hd And Raw Direct To Hollywood Editing Standards
Record direct from the camera sensor to your choice of Apple ProRes, DNXHD/DNXHR or RAW in 10-bit 422 quality onto affordable media options. Based on the camera's output the Shogun can accept and record up to 4K 30p and HD 120p over HDMI or 12/6/3/1.5G SDI. RAW recording with future firmware update

Review Instantly On Set
Full playback controls allow collaboration on set to review content the moment it's captured, using the full suite of monitor tools on screen or out to a larger HDMI or SDI monitor. There is even 4K to HD down scaling to connect with existing HD infrastructure.

The World's Most Advanced Audio And Video Monitor
A stunning 7.1" 1920 x 1200 320ppi IPS screen makes Shogun perfect as a director's monitor. Shoot more accurate colors with class leading 3D LUTs, 2:1/1:1 zoom for critical focus, waveform, focal assist and an optional Spyder calibration unit. It's the perfect tool for perfect creative shot setup.

Metadata Tagging At Point Of Acquisition
Save time in post by tagging your captured content the moment you review on set. Mark Favorite/Reject, create a custom playlist, upload custom meta data tags and even cut in/out points. Save them out as an XML on the Shogun and drop straight onto the timeline of your favorite NLE.

Future Updates
• Anamorphic de-squeeze (including Panasonic 8:3)
• Pre-roll record (8s HD, 2s 4K)
• Custom time lapse recording (multi stage, duration & interval)
• Custom playlist generation
• LUTs applied on output
• Cinema 4K DCI support (4096 x 2160p)
• RAW recording to ProRes, DNXHR, Cinema DNG (Sony FS series, Canon C500, Arri Alexa, AJA Cion)
• Uncompressed v210 recording
• Custom meta data tagging
• GenLock

What's in the box:

  • Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Touchscreen Monitor
  • AC Adapter (120 VAC to 9 VDC 3A)
  • Item Note: Screen is cracked; touchscreen does not function; may have additional issues. Cosmetic Condition is Heavy Use. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE. Missing Master Caddy II; Soft Shell Case
