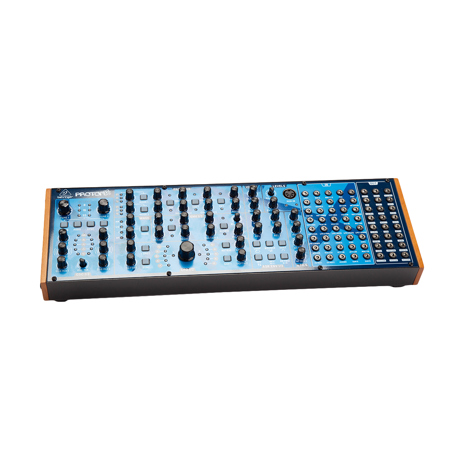

Used Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer

SKU: US1908196

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Behringer PROTON Specifications

Synthesizer Architecture

Synthesizer Architecture

Jump to...
  • Number of voices

    1 / 2 (monophonic / paraphonic)

  • Type

    Analog

  • Oscillators

    2 VCO

  • LFO

    2 LFO

  • VCF

    2 LPF/HPF/band Pass switchable 12 dB/octave

  • Envelopes

    2 ADSR / 2 ASR

  • Wavefolder

    1 Wavefold circuit

Connectivity

Jump to...
  • Power switch

    Rear panel

  • MIDI In

    5-pin DIN (top panel)

  • MIDI Thru

    5-pin DIN (rear panel)

  • USB

    USB 2.0 Type B socket

  • External Audio In

    1/4" (6.35mm) TR jack

  • Audio Output

    1/4" (6.35mm) TR jack

  • Headphone Out

    1/4" (6.35mm) TRS jack

  • Type

    Class compliant USB 2.0 Type B

  • Supported Operating Systems

    Windows 7 or higher
    Mac OS 10.10 or higher

Oscillator Section

Jump to...
  • Controls

    2x Tune, 2x Shape, 2x Pulse Width, 2x Sub Osc, Osc Mix.

  • Buttons

    2x Range, Paraphonic on/off, Sync on/off

Filter Section

Jump to...
  • Controls

    2x Frequency, 2x Resonance, 2x Modulation Depth, 2x Envelope Depth, Noise

  • Buttons

    2x Filter Mode, Filter Link on/off, Soft on/off, Key Track on/off

Wavefolder Section

Jump to...
  • Controls

    Symmetry, Folds

  • Buttons

    Mode

Envelope Section - ADSR

Jump to...
  • Controls

    2x Attack, 2x Decay, 2x Sustain, 2x Release

  • Buttons

    Fast/Slow, Retrigger

Envelope Section - ASR

Jump to...
  • Controls

    2x Attack, 2x Release

  • Buttons

    Loop, Bounce, Sustain, Invert, Reverse, Retrigger

LFO Section

Jump to...
  • Controls

    2x Shape, 2x Rate, 2x Depth

  • Buttons

    1 Shot, Key Sync, Retrigger, Shift

VCA Section

Jump to...
  • Controls

    2x Bias, Volume, External Audio

Utilities Section

Jump to...
  • Controls

    CV Mix, Portamento Time, Attenuator 1, Attenuator 2

Input Patchbay

Jump to...
  • 3.5 mm TS jacks

    Osc 1 CV, Osc 2 CV, Osc 1&2 CV, PW 1, PW 2, Shape 1, Shape 2, WF In, WF Sym, WF Folds, VCF 1 In, VCF 1 Freq, VCF 1 Resonance, VCF 2 In, VCF 2 Freq, VCF 2 Resonance, VCA 1 In, VCA 1 CV, External Input, Out Input, LFO 1 Trig, LFO 2 Trig, LFO 1 Rate, LFO 2 Rate, LFO 1 Shape, LFO 2 Shape, ADSR 1 Trig, ADSR 2 Trig, AR 1 Trig, AR 2 Trig, VCA 2 In, VCA 2 CV, Att 1 In, Att 2 In, Mult In, CV Mix 1, CV Mix 2, CV Mix CV, Sum A, Sum B

Output Patchbay

Jump to...
  • 3.5 mm TS jacks

    Osc 1, Osc 2, Osc Mix, WF, VCF 1, VCF 2, VCF Mix, VCA 1, VCA 2, Mult 1, Mult 2, Att 1, CV Mix, Sum, Att 2, ADSR 1, ADSR 2, AR 1, AR2, LFO 1 Uni, LFO 1 Bi, LFO 2 Uni, LFO 2 Bi, Assign

Power Requirements

Jump to...
  • Supplied PSU

    12 V DC 1000 mA

  • Current Draw

    800 mA (+12 V Eurorack)

Physical

Jump to...
  • Standard Operating Temperature

    41 - 113 Degree F (5 - 45 Degree C)

  • Eurorack

    80 hp

  • Dimensions (H x W x D)

    3.66 x 16.69 x 5.25" (9.3 x 42.4 x 13.6cm)

  • Weight

    3.81 lbs (1.73kg)

About Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer - SKU#1908196

Make your music production setup truly electrifying with the Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer. This exceptional analog paraphonic synthesizer is engineered to be the centerpiece of your synth collection, featuring two robust Voltage Controlled Oscillators (VCOs) and two versatile multi-mode Voltage Controlled Filters (VCFs). With an extensive array of patch points, the PROTON is designed to invigorate your sound creation process, offering endless possibilities for sonic exploration.

The PROTON's semi-modular design is centered around an intuitive, linear workflow, eliminating the need for patching to achieve immediate performance. This makes it an ideal choice for both beginners and experienced synth enthusiasts. Activate the PROTON into self-oscillation and connect it to your preferred keyboard or computer via MIDI over DIN or USB to immerse yourself in the captivating world of analog music synthesis.

The dual self-oscillating, multi-mode VCFs can be configured in either parallel or series, providing a multitude of sound possibilities. With linkable Control Voltages (CVs), you can craft even more unique soundscapes. The synthesizer is equipped with two ASR envelopes, each offering reverse, inverse, loop, and bounce options, granting comprehensive control over Voltage Controlled Amplifiers (VCAs) and wave folders. Additionally, two analog ADSR generators allow for distinctive sound modulation of the VCFs.

Enhance your sound with the PROTON's multi-mode wave folder, which adds rich harmonic content to the Low-Frequency Oscillators (LFOs). The synthesizer includes two flexible LFOs, each offering five waveforms, MIDI clock sync, key sync, phase, and depth controls, ensuring your creative possibilities are virtually limitless. The noise generator elevates waveform generation, while the ability to sum external audio into one or both VCFs further expands the PROTON's sound generation capabilities.

Designed to integrate seamlessly into a standard Eurorack case, the PROTON can be easily combined with other synth modules for a truly unique setup. Simply connect the power cables to the power supply and mount the module using the included screws. Elevate your music production journey with the Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer and create the music you've always envisioned.

Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer - SKU#1908196 Features

  • Analog synthesizer with dual VCO design for insanely fat music creation
  • Paraphonic mode allows both oscillators to be independently controlled for multi-timbral sounds
  • Semi-modular design requires no patching for immediate performance
  • Pure analog signal path based on authentic VCO, VCF and VCA designs
  • Dual oscillators with 5 waveforms, oscillator sync, pulse width modulation and individual sub-oscillators
  • Oscillator waveform control blends seamlessly between 5 shapes (tone mod, pulse, sawtooth, triangle and sine)
  • 2 Self-oscillating, multi-mode VCFs can be configured in parallel or series with linkable CVs
  • 2 ASR envelopes with reverse/ inverse/loop/bounce options to control VCAs and wave folder
  • 2 Analog ADSR generators for modulating the VCFs for unique sound performance
  • Multi-mode wave folder adds rich harmonic content and massive flexibility to the LFOs
  • 2 Flexible LFOs with 5 waveforms, MIDI clock sync, key sync, phase and depth controls
  • Noise generator dramatically expands waveform generation
  • External audio can be summed into one or both VCFs to massively enhance sound generation
  • Utility functions include attenuverters, multiples, signal/CV mixer and summer for creative patching
  • External audio input with level control and soft clipping circuit for processing external sound sources
  • 64 Patch points for advanced modular connection and integration with external equipment
  • 68 Controls give you direct and real-time access to all important parameters
  • Complete Eurorack solution - main module can be transferred to a standard Eurorack case
  • Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

What's in the box:

  • Behringer PROTON Paraphonic Semi-Modular Analog Synthesizer
  • DC Power Supply
  • Item Note: Some Knobs and Knob Caps are Broken
