Blackmagic Design Mini Converter SDI to HDMI - #CONVMBSH SKU#1908842
Blackmagic Design Mini Converter SDI to ...: Picture 1 thumbnail
Blackmagic Design Mini Converter SDI to ...: Picture 2 thumbnail
Blackmagic Design Mini Converter SDI to ...: Picture 3 thumbnail
Blackmagic Design Mini Converter SDI to ...: Picture 4 thumbnail
Blackmagic Design Mini Converter SDI to ...: Picture 5 thumbnail
Blackmagic Design Mini Converter SDI to ...: Picture 6 thumbnail
See all Blackmagic Design items
Used Condition: Excellent

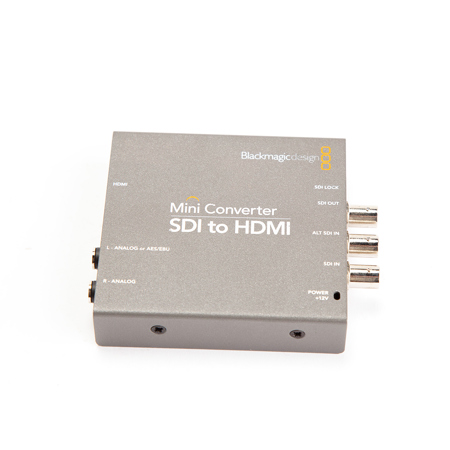

Used Blackmagic Design Mini Converter SDI to HDMI with Embedded Audio #CONVMBSH

SKU: US1908842 MFR: CONVMBSH
Be the first to review this item
$57.00
Earn VIP Reward Points
See all Used options (3) from $48

What`s in the box:

  • Blackmagic Design Mini Converter SDI to HDMI
  • Universal Power Supply (+12V)

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Blackmagic Design Mini Converter SDI to HDMI - #CONVMBSH SKU#1908842 Specifications

  • SDI Video Input

    Switchable between SD, HD and 3 Gb/s SDI

  • SDI Redundant Input

    Automatically switches over if main SDI input is lost

  • SDI Video Outputs

    Switchable between SD, HD and 3 Gb/s SDI

  • Dual Rate Support

    Auto detection of HD or standard definition SDI inputs

  • Updates and Configuration

    Via USB 2.0 high speed. (480 Mb/s)

  • Re-clocking

    Yes

  • Analog Audio

    2 channels of professional balanced analog audio with standard 1/4 inch jack connections

  • Digital Audio

    2 channels of professional balanced digital with standard 1/4 inch jack connections. AES/EBU standard

  • HDMI

    HDMI out

  • SDI Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601

  • SDI Video Sampling

    4:2:2

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Color Precision

    4:2:2

  • SDI Color Space

    YUV

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • Analog Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • Analog Color Precision

    4:2:2

  • Analog Color Space

    YUV

  • HDMI Format Support

    625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60

  • HDMI Color Precision

    4:2:2 and 4:4:4

  • HDMI Color Space

    YUV and RGB

  • Software Control

    Mac OS X and Windows software upgrade via USB

  • Settings Control

    Mini Switches or USB software

  • Firmware Upgrade

    Via included firmware updater application

  • Power Supply

    +12V universal power supply included; Cable tie point

  • Warranty

    Blackmagic Design 3 Year Limited Warranty

About Blackmagic Design Mini Converter SDI to HDMI - #CONVMBSH SKU#1908842

The Blackmagic Design Mini Converter SDI to HDMI converts from SDI to HDMI video with embedded HDMI audio, plus balanced AES/EBU or analog audio. Imagine using big screen televisions and video projectors for broadcast video monitoring. It allows to easily connect HDMI displays to SDI based equipment.

Blackmagic Design Mini Converter SDI to HDMI - #CONVMBSH SKU#1908842 Features

  • SDI to HDMI Conversion: Use this device to convert SDI video sources to HDMI video output
  • Embedded Audio: This unit can embed SDI audio from balanced AES/EBU or analog audio inputs

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design Mini Converter SDI to HDMI
  • Universal Power Supply (+12V)
