Used Panasonic AG-AF100A Digital Cinema Camcorder (53 Hours)

SKU: US1909464

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-02-05T19:00:00

Rated 5 out of 5

Great cam

I use the 100a as cam 1 for instructional and performance video.Spend the time to customize scene files and be gentle with highlights. I pair this with the Atomos Samurai and get great results, plenty of lattitude in post.

WALTER P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic AG-AF100A Specifications

  • Pick-up Device

    4/3 MOS fixed pickup device, single panel (primary color filter)

  • Picture Elements

    Effective picture elements: Approx. 12,400,000 pixels Single panel (16:9)

  • Image Size

    Valid image range: Approx. 17.8 mm (H) x Approx. 10.0 mm (V)

  • Lens

    Not included

  • Lens Mount

    Micro Four Thirds system Lens mount

  • ND Filter

    1/4, 1/16, 1/64

  • Gain Settings

    VIDEO CAM mode] -6dB to 18dB (3dB step)
    [FILM CAM mode] ISO200 to ISO3200

  • Color Temperature Setting

    ATW, ATW LOCK, preset 3200K, preset 5600K, preset VAR, Ach, Bch

  • Shutter Speed - Preset: 59.94 Hz

    60i/p mode: 1/60 sec. 1/100 sec., 1/120 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
    30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
    24p mode: 1/24 sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.

  • Shutter Speed - Preset: 50 Hz

    50i/p mode: 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
    25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.

  • Shutter Speed - Syncro Scan 59.94Hz

    60i/p mode: 1/60.0 sec. to 1/250.6 sec.
    30p mode: 1/30.0 sec. to 1/250.6 sec.
    24p mode: 1/24.0 sec. to 1/250.6 sec.

  • Shutter Speed - Syncro Scan 50Hz

    50i/p mode: 1/50.0 sec. to 1/250.0 sec.
    25p mode: 1/25.0 sec. to 1/250.0 sec

  • Shutter Speed - Syncro Scan: Film Mode

    10.0 d to 180.0 d to 360.0 d (0.5 d step)

  • Shutter Speed - Slow: 59.94Hz

    60i/p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec. VIDEO CAM mode only
    30p mode:1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
    24p mode:1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.

  • Shutter Speed - Slow: 50Hz

    50i/p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
    25p mode:1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.

  • Normal Sensitivity

    F8.0 normal (2000lx, 3200K, 89.9% reflex, 1080 59.94i)

  • Horizontal Resolution

    800 TV lines (at center standard)

  • Video Recording Format

    Recording Format: AVCHD compliant (MPEG-4 AVC/H.264)

  • Recording Media

    SD Memory Card: Up to 512MB, 1 GB, 2 GB (FAT12, FAT16)
    SDHC Memory Card: 4 GB, 6 GB, 8 GB, 12 GB, 16 GB,
    32 GB (FAT32)
    SDXC Memory Card : 48 GB, 64GB (exFAT)

  • Recording Format [59.94Hz]

    [59.94Hz] PH mode: 1080/59.94i, 1080/29.97p, 1080/23.98p, 720/59.94p, 720/29.97p, 720/23.98
    HA/HE mode: 1080/59.94i

  • Recording Format [50Hz]

    [50Hz] PH mode: 1080/50i, 1080/25p, 720/50p, 720/25p
    HA/HE mode: 1080/50i

  • Transmission Rate

    PH mode: Approx. 21 Mbps (VBR)
    HA mode: Approx. 17 Mbps (VBR)
    HE mode: Approx. 6 Mbps (VBR)

  • Interval Recording

    Off/1 sec. /10 sec. /30 sec. /1 min. /2 min.
    Recording mode is fixed to PH 1080/24p (59.94 Hz) and PH 1080/25p (50 Hz) and the maximum shooting time is 24 hours.

  • VFR Recording

    [1080/24p, 30p] 12/15/18/20/21/22/24/25/26/
    27/28/30/32/34/36/40/44/48/54/60 frame/sec.
    [1080/25p] 12/15/18/20/21/22/23/24/25/26/ 27/28/30/32/34/37/42/45/48/50 frame/sec.

  • Maximum Number of Clips

    Continual recording: 900 Clips (SD Memory Card x 1) (Record after memory card is formatted and without removing the SD Memory Card.)
    Playback: 1000 Clips (up to 1000 clips displayed)
    Still Image Capture Function: Recording Format: JPEG
    Function: 9 thumbnail displays, Clip deletion, Protect, Format

  • SDI (HD/SD)

    BNC x 1, 0.8 V [p-p], 75 ohm
    [59.94Hz] 1080/60i, 1080/24psF, 720/60p, 480/60i
    [50Hz] 1080/50i, 720/50p, 576/50i

  • HDMI

    HDMI x 1, (HDMI TypeA terminal), VIERA Link not supported
    [59.94Hz] 1080/60i, 720/60p, 480/60p
    [50Hz] 1080/50i, 720/50p, 576/50p

  • Video

    RCA pin jack, 1.0 V [p-p], 75 ohm
    [59.94Hz] 480/60i [50Hz] 576/50i

  • Audio Recording Playback

    Recording Format:
    PH mode: Dolby Digital/2ch, linear PCM digital/2ch switch
    HA/HE mode: Dolby Digital/2ch
    Sampling Frequency: 48 kHz
    Encoding: 16 bit
    Compressed Bit Rate: Dolby Digital: PH mode: 384 kbpsHA, HE mode: 256 kbps

  • Built-in Microphone

    Stereo microphone

  • Audio Input

    XLR (3 pin) x 2 (INPUT 1, INPUT 2),
    LINE/MIC selectable, high impedance
    LINE: 0 dBu, MIC: -50 dBu/-60 dBu (menu selectable)
    AUDIO Output: RCA pin jack x 2 (CH1, CH2), 316 mV, 600 ohm
    SDI Output: 2ch (linear PCM)
    HDMI Output: 2ch (linear PCM)/5.1ch (Dolby Digital)
    Headphone: 3.5mm diameter, stereo mini jack x 1
    Speaker: 20 mm (round) x 1

  • Camera Remote

    Super mini jack (2.5 mm diameter) (S/S)
    Mini jack (3.5 mm diameter) (FOCUS, IRIS)

  • INDEX Remote

    Super mini jack (2.5mm diameter)

  • TC I/O (also for video out)

    IN: 1.0 V to 4.0 V [p-p], 10 k ohm
    OUT: 2.0 V +/-0.5 V [p-p], low impedance

  • USB

    Card reader function (no copyright protection support) Type mini B connector (compliant with USB ver. 2.0)

  • LCD Monitor

    3.45 type, wide LCD color monitor (Approx. 920,000 dots)
    Viewfinder wide 0.45 type LCD color monitor (Approx. 1,226,000 dots equivalent)

  • Power Supply

    DC 7.2 V (when the battery is used)
    DC 7.3 V (when the AC adaptor is used)

  • Power Consumption

    12.4 W (when recording)

  • Operating Temperature

    32°F to 104°F (0°C to 40°C)

  • Operating Humidity

    10 % to 80 % (No condensation)

  • Dimensions (WxHxD)

    6.4 x 7.7 x 11.4" (163.4 x 195 x 290.4mm) including handle and grip

  • Weight

    2.9 lbs (1.3kg) excluding handle, grip, battery, accessories

About Panasonic AG-AF100A Digital Cinema Camcorder - (53 Hours) SKU#1909464

FEATURED REVIEWS

Great cam

By WALTER P.

I use the 100a as cam 1 for instructional and performance video.Spend the time to customize scene files and be gentle with highlights. I pair this with the Atomos Samurai and get great results, plenty of lattitude in post.

Panasonic AG-AF100A Digtal Cinema Camera
The next-gen go-to HD camera is here and it’s the Panasonic AG-AF100A. The AG-AF100A offers superior video handling with native 1080/24p with the flexibility and cost effectiveness that puts it in a class all by itself. The AG-AF100A accepts widely available micro 4/3 lenses and produces a shallow depth of field control similar to that of 35mm movie cameras. The AG-AF100A is an HD camera that can easily adapt to whatever situation you can think of.

Key Features

  • Large 4/3 sensor provides superior depth of field control and 35mm film-like quality
  • Records in 1080 (60i, 50i, 30p, 25p and 24p native) and 720 (60p, 50p, 30p, 25p and 24p native, utilizing AVCCAM's highest-quality PH mode (maximum 24Mbps)
  • HD Video and Full Audio monitoring during record and playback with high-quality audio pre-amps at the input
  • Two professional XLR audio inputs, line/mic selectable with phantom power with full manual audio level control and the ability to disable all Audio Gain
  • Uncompressed 48KHz 16 Bit audio recording capability in PH mode
  • High resolution LCD monitor and Viewfinder
  • Small size and low weight allows it to be mounted it on sliders, camera stabilizers, small dollies, as well as to fit into small places
  • Six built-in, customizable Scene Files that can be utilized for instant, easy matching between multiple cameras
  • Built-in gamma curves including HD Norm, HD Low and High, Cine-like D, Cine-like V, B.Stretch
  • SDXC Card compatibility - with a 64GB SDXC card, you can record for 12 hours inPH Mode, and 48 hours in HG Mode

For video professionals looking for a more cinematic look; consider the Panasonic AG-AF100A. With the large line up of available micro 4/3 lenses, wealth of in-camera controls, and cost-effectiveness of the system, the AG-AF100A is a truly versatile professional camcorder.

From the Manufacturer

The AG-AF100 is a full HD 1080/720 production camera that offers superior video handling, native 1080/24p recording, variable frame rates, professional audio capabilities, and compatibility with SDHC and SDXC media. The AF100 delivers the shallow depth of field and wider field of view of a large imager, with the flexibility and cost advantages of a handheld camcorder. The AF100 is the next-generation, go-to HD camera that costs less, yet delivers so much more than other models in its class.

The design of the AF100's 4/3-inch sensor affords depth of field and field of view similar to that of 35mm movie cameras and also affords the full range of cinematic requisites. Equipped with an interchangeable lens micro 4/3" mount, the AF100 has the ability to use virtually any professional quality lens with the addition of an easily obtainable adapter, from low-cost still camera lenses as well as film-style lenses with fixed focal lengths, prime lenses, and zoom lenses. It's equipped with the full range of controls a cinematographer relies on: exposure, adjustable zebras, pedestal and detail, a vectorscope and waveform monitor, and much more.

Panasonic AG-AF100A Digital Cinema Camcorder - (53 Hours) SKU#1909464 Features

  • Built-in optical neutral density filters - 2 stops, 4 stops and 6 stops. A tremendous time-saver, facilitating many more shots in a production day
  • 20 Variable Frame Rates for fast-motion or slow-mo work. These are higher-resolution Variable Frame rates in1080P in 20 steps, from 12-60 frames. Variable frame rates in 24P, 30P and 25P in1080, up to 60P or 50p dependent on 60Hz or 50Hz mode.
  • Uncompressed 4:2:2, 8 Bit HD-SDI Output
    NTSC/PAL Switchable for worldwide use
    In-Camera microphone
    Industry-leading 3-year limited warranty (one year plus two extra years upon registration on PASS)
  • Large 4/3" "Best-in-Class" MOS imager with fast image scanning and optical and low pass filters that eliminate aliasing and moire while minimizing skew
  • Records in 1080 (60i, 50i, 30p, 25p and 24p native) and 720 (60p, 50p, 30p, 25p and 24p native, utilizing AVCCAM's highest-quality PH mode (maximum 24Mbps)
  • HD Video and Full Audio monitoring during record and playback with high-quality audio pre-amps at the input
  • Two professional XLR audio inputs, line/mic selectable with phantom power with full manual audio level control and the ability to disable all Audio Gain
  • Uncompressed 48KHz 16 Bit audio recording capability in PH mode
  • High resolution LCD monitor and Viewfinder
  • Small size and low weight allows it to be mounted it on sliders, camera stabilizers, small dollies, as well as to fit into small places
  • Six built-in, customizable Scene Files that can be utilized for instant, easy matching between multiple cameras
  • Built-in gamma curves including HD Norm, HD Low and High, Cine-like D, Cine-like V, B.Stretch
  • Four selectable color matrices including Norm 1 and Norm 2, Fluorescent and Cinelike
  • Color Phase and Saturation, Pedestal and Detail image control
  • Two card slots that support continuous (relay) recording. Relay recording means that with two 32GB SDHC cards you can record for 6 hours with automatic clip spanning across the two cards
  • SDXC Card compatibility - with a 64GB SDXC card, you can record for 12 hours inPH Mode, and 48 hours in HG Mode

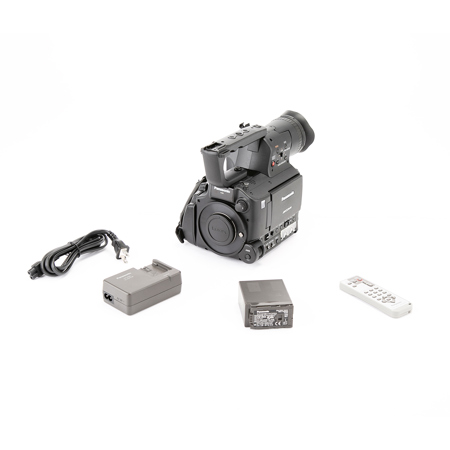

What's in the box:

  • Panasonic AG-AF100AP Series HD Camcorder
  • IR Remote Control
  • VW-AD20 Adapter
  • Battery
