Used RED Digital Cinema SCARLET-W RED Dragon Camera 5K BRAIN

SKU: US1910028

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-12-19T08:52:11

Rated 4 out of 5

Beautiful camera and easily customizable and has decent low light functions

Overall the camera is amazing and for a entryline into the professional market it is fantastic for the price. The camera is very sturdy and the design and user interface is practical yet effective. Video quality is amazing and lots of shooting options. Only complaint, it is a super 35mm sensor and camera shoots on a crop, not a huge deal but for the price tag I kind of expected a full frame. Beautiful camera and easily customizable and has decent low light functions.

JEOFFREY H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

RED Digital Cinema SCARLET-W RED Dragon 5K Specifications

  • Sensor Type

    RED DRAGON 13.8 MP Super 35mm CMOS

  • Effective Pixels

    5120 (h) x 2700 (v)

  • Sensor Size

    25.6 mm x 13.5 mm (Diagonal: 28.9 mm)

  • Dynamic Rang

    16.5+ stops

  • Signal-To-Noise-Ratio

    80 dB

  • Max Data Rates

    Up to 140 MB/s using RED MINI-MAG

  • Max Frame Rates

    50 fps at 5K Full Format (5120 x 2700), 60 fps at 5K 2.4:1 (5120 x 2160)
    120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
    150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
    240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates (Project Timebase)

    23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94, 60 fps, all resolutions

  • Compression Settings Range 2:1 to 22:1

    5:1 REDCODE for 5K Full Format (5120 x 2700) at 24 fps
    9:1 REDCODE for 5K Full Format (5120 x 2700) at 50 fps
    3:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
    7:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps

  • Redcode Raw Acquisition Formats

    5K Full Frame (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    4.5K Full Frame (4608 x 2412), 2:1, 2.4:1, 16:9, 3:2, 4:1, 8:1, and Ana 2x, 1.3x
    4K Full Frame (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    3K Full Frame (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    2K Full Frame (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

  • Apple Prores

    422 HQ, 422 and 422 LT at 2K (2048 x 1080) up to 60 fps

  • AVID CODECS

    DNxHD HQ, SQ and LB (1920 x 1080) 8-bit up to 60 fps

  • Max Recording Time Using Mini-Mag 120GB

    5K (5120 x 2700) at 24 fps and 11:1 REDCODE: 41 minutes
    5K (5120 x 2700) at 48 fps and 14:1 REDCODE: 26 minutes
    4.5K 2.4:1 (4608 x 1944) at 120 fps and 15:1 REDCODE: 17 minutes

  • Construction

    Aluminum Alloy

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Supports 17 x 17 x 17 3D LUTs
    Variable number of 3D LUT outputs with Expander Modules
    User programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing

  • Audio

    Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
    Optional 2 additional channels with Expander Module, uncompressed, 24-bit 48 kHz

  • Remote Control

    Integrated RED COMMAND PROTOCOL (R.C.P.) WiFi antenna
    Ethernet, RS232, and GPI Trigger with Expander Modules

  • Monitor Outputs

    3G-SDI (HD-SDI) and HDMI with Expander Modules
    1080p RGB or 4:2:2, 720p RGB or 4:2:2
    480p RGB or 4:2:2 (HDMI Only)
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC RED Touch 4.7" LCD, DSMC RED Touch 7.0" LCD and DSMC RED EVF (OLED) with cable-free connection.
    RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, BOMB EVF (OLED) and BOMB EVF (LCOS)
    compatible with DSMC LEMO Adaptor and LCD/EVF cable.

  • Redcine-X Pro Delivery Formats

    4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, Avid AAF, MXF
    1080p 4:2:0, 720p 4:2:0 : H.264, .MP4

  • Video Editing Software Compatibility

    Adobe Premier Pro, Avid Media Composer
    DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

  • Weight

    3.5 lbs (56 oz) (Brain with Integrated Media Bay)

About RED Digital Cinema SCARLET-W RED Dragon Camera 5K BRAIN - SKU#1910028

THE PERFECT STORM

Carrying on the legacy of the revolutionary RED ONE, SCARLET-W brings an unparalleled level of accessibility to content creators everywhere. SCARLET-W combines RED’s intuitive camera design—including integrated mounting points, interchangeable lens mounts, simultaneous REDCODE RAW and Apple ProRes or Avid DNxHR/HD recording formats, intelligent OLPF system, and in-camera 3D LUT outputs—with a RED DRAGON sensor to provide a solution that blends flexibility and accessibility with high-end performance.

THE PERFECT STORM

ENHANCE YOUR IMAGE

The RED DRAGON sensor allows shooters to get the best shot every time. SCARLET-W harnesses the massive dynamic range of the RED DRAGON sensor to produce cinema-quality images rich with natural color. SCARLET-W’s Monochrome camera option gives shooters the ability to capture black and white images that contain enhanced resolution and heightened light sensitivity. SCARLET-W gives you the ability to capture your vision exactly as you see it: 5K 2.4:1 at 60 frames per second (fps), 4K 2.4:1 at 150 fps, or 2K 2.4:1 at 300 fps with REDCODE RAW.

ENHANCE YOUR IMAGE

FULLY CUSTOMIZABLE

RED's innovative modular design brings maximum flexibility to every professional, providing adaptability in every situation you encounter. Interchangeable lens mount options give you the capability to change your perspective at a moment’s notice, while the full range of DSMC2 module adaptors lets you dial in your camera rig to exact specifications.

FULLY CUSTOMIZABLE
WORKFLOW MADE EASY

WORKFLOW MADE EASY

RED’s commitment to providing a seamless workflow persists with SCARLET-W. RED’s innovative REDCODE RAW recording format, also known as R3D, enables shooters to maintain visual integrity throughout post production with non-destructive editing capabilities. Compatible with most professional-grade editing programs, REDCODE RAW easily adapts to your preferred system. Additionally, shooters have the freedom to simultaneously capture options in both R3D and Avid DNxHR/HD or Apple ProRes file formats.

READY FOR ANYTHING

READY FOR ANYTHING

The rugged, durable design of SCARLET-W makes it an ideal option for wherever your journey takes you. Whether you configure your camera to be as lightweight as possible or work with a complex studio configuration, SCARLET-W allows you to feel secure in its abilities to capture cinema-quality images in any circumstance. A Base I/O V-Lock package option comes with the key components necessary for you to get out and start shooting, allowing you to immediately set your production in motion.

Scarlet-W Mil Front

FUTURE-PROOF YOUR INVESTMENT

SCARLET-W’s introduction reinforces RED’s commitment to placing adaptable, high-end creative tools in the hands of professionals everywhere. SCARLET-W uses the DSMC2 line of accessories—compatible with both WEAPON and RED RAVEN cameras—giving shooters the option to move between camera systems without having to purchase all new gear.
RED makes OBSOLESCENCE OBSOLETE.

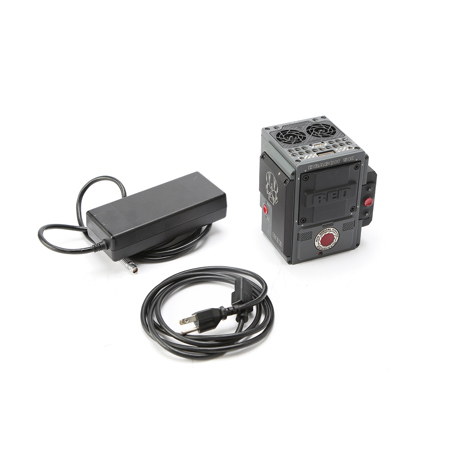

What's in the box:

  • SCARLET-W Brain with Integrated Media Bay
  • DSMC Front Body Cap
  • DSMC2 Standard OLPF
  • DSMC AC Power Adaptor
  • Original Box
  • Item Note: Missing DSMC2 Standard OLPF Case
