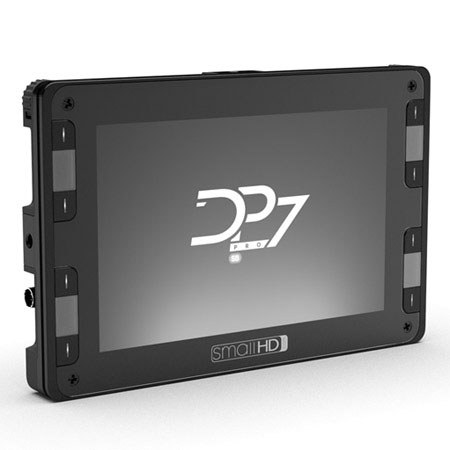

SmallHD DP7 Pro 7" LCD On Camera Field Monitor

Picture does not represent the actual item
See what's in the box

See all SmallHD items
$11 PRICE DROPUsed Condition: Flawed

Used SmallHD DP7 Pro 7" LCD On Camera Field Monitor

Item Note: Right Side adjustment knob is loose and prohibits functionality; may have additional issues. Cosmetic Condition is Well Used. Missing 12V 3A US Power Supply; 4GB SD Card; SmallHD Cleaning Cloth

SKU: US1910530 MFR: MON-DP7-PRO-LCD
Be the first to review this item
$163.00
$174.00
Save: $11 (6%)
Earn VIP Reward Points
See all Used options (2) from $163

What`s in the box:

  • Small HD DP7 Pro 7" LCD Monitor ** Item Note: Right Side adjustment knob is loose and prohibits functionality; may have additional issues. Cosmetic Condition is Well Used. Missing 12V 3A US Power Supply; 4GB SD Card; SmallHD Cleaning Cloth **
Free Shipping

See Options

Add to List

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD MON-DP7-PRO-LCD Specifications

  • Resolution

    1280x800

  • Luminance

    400 Nits

  • Diagonal

    7"

  • Color Gamut

    50%

  • Control Ratio

    800:1

  • Color Depth

    8bit

  • Viewing Angle

    80°/80°/80°/80°

  • Interface

    2 Scroll Wheels + Touch Screen

  • Dimensions

    7.3in x 5.1in x .9in

  • Weight

    1.2 lbs

  • Power Consumption

    10 watts

  • Inputs

    2 x SDI(BNC) - 1 x HDMI (With Lock) - 1 x Composite(Hirose Breakout Cable to BNC)- 1 x Power(Input voltage 10-24v DC locking Hirose connector:4pin) - 1 x Stereo line in 4-pin Hirose *future firmware - 1 x Mini-USB(for Firmware updates) - 1 x Battery Input(4-pin Molex connector for battery plates) - 1x SD Card Slot

  • Outputs

    1 x SDI(BNC) - 1 x HDMI - 1 x 1/8" Mini Head phone Output *future firmware - 2 x Built-in speakers *future firmware

  • Sensors

    4 x Proximity sensors on front (for detecting users hands for intelligent menu assist) - 1 x Accelerometer (Horizon indicator) - 1 x Temperature sensor (to sense internal temp of DP7 to avoid potential damage in extreme situations)

  • User Interface

    2 x Ergonomic scroll wheels in each top corner

  • Physical

    5 rugged 1/4"20 thread points on all sides - All ports recessed for protection - 2 x Tally Indicators

  • Signal Types

    HDMI - SDI - Composite

  • X-Port Accessory Slot

    No

  • Software - Scopes

    Waveform (PIP, Full Screen) - Vectorscope (PIP, Full Screen) - RGB Parade (Full Screen) - Histogram (PIP, Full Screen)

  • Software - Focus Assist

    Intensity Adjustment - Highlight Color Select - Background: Color/B&W

  • Software - Zebra

    2x User selectable ranges

  • Software - False Color

    Industry-standard scales + on-screen guide

  • Software - Frame Guides

    Aspect - Crosshair - Crosshatch - User-Defined -

  • Other Software Specs

    Color Controls
    Color Bars
    blue onlys
    ui lock - Physical switch
    Smart Keys Fully customizable
    ui Help Text prompts

  • Signal Routing/Conversion

    input -> output HDMI In -> SDI 1, SDI 2 & HDMI Out SDI 1 -> HDMI & SDI 2
    dual input -> output SDI & SDI SDI & HDMI
    fx passthru Future Firmware

  • Power and Battery

    included with dp7 Locking Hirose 10v-28v DC connector with AC adapter

  • Optional Power Accessories

    Locking Hirose to 4-Pin XLR Adapter - Locking Hirose to bare wire (DIY kit) - Locking Hirose to D-Tap/P-Tap - V-Mount Battery Plate - Gold Mount Battery Plate w/on screen battery indicator

Related Articles & Videos

MOVI Advanced Part 2

MOVI Advanced Part 2

AdoramaTV presents Getting the Shot with Corey Rich. ich and his team have brought this equipment to some of the most remote places on the planet and captured high-production shots that would make all the guys in Hollywood jealous.

Read more
MOVI Basics Part 1 Mobile

MOVI Basics Part 1 Mobile

It wasn't possible for a single camera operator to get fluid, cinematic, Hollywood-quality camera movements by himself until today. Thanks to the Freefly MOVI M5, a digital 3-axis gyro-stabilized handheld camera stabilizer, it’s possible to quickly m...

Read more

About SmallHD DP7 Pro 7" LCD On Camera Field Monitor

Simple. powerful. fast.
The DP7-Pro redefines the way field monitors operate on set. With a precise attention to detail making the user experience uncomplicated yet extremely robust, speed is a natural byproduct.

Real-Time Custom 3D LUTs at the Camera

Signal conversion
Shoot SDI and send your feed to another HDMI client monitor, or shoot on an HDMI-only DSLR and convert the signal to SDI for long cable run to a video village, the DP7-PRO has you covered without the need for any extra equipment totake up space in the gear bag

speedy sync
The DP7-Pro takes the idea of speed even further, with the fastest signal sync time of any monitor in the world. While some can take up to 7 seconds to displayHDMI when plugged in, the DP7 is instantaneous.

Future Proofing
Upgradable with firmware updates

your gear, your workflow.
The DP7-Pro is designed to fit into your workflow, not make you learn a new one.Ease of use and flexibility have been painstakingly designed into the core of the monitor to create a hassle-free monitoring experience that just works', no matter which camera system you employ.

Super Strength
Housed in in a reinforced milled aluminum shell yet weighing in at only 1.2lbs, the DP7-Pro is designed for the rigors of production, like accidentaly parking your Jeep on it. It happens to the best of us.

SmallHD DP7 Pro 7" LCD On Camera Field Monitor Features

  • 7" 1280x800 8-bit IPS LCD
  • 24 Quick-access "Smart-Keys"
  • Full-screen Waveform & Scopes
  • 2-way Cross Conversion
  • Custom Look Support (3D-LUTs)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Small HD DP7 Pro 7" LCD Monitor
  • Item Note: Right Side adjustment knob is loose and prohibits functionality; may have additional issues. Cosmetic Condition is Well Used. Missing 12V 3A US Power Supply; 4GB SD Card; SmallHD Cleaning Cloth
