Used Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit

SKU: US1910778

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Zhiyun CRANE 4 Specifications

Grip Design

Grip Design

Jump to...
  • Grip Design

    Single Handgrip

  • Load Capacity

    13.2 lbs (6kg)

  • Number of Axes

    3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

  • Rotation Range

    Mechanical Range:
    Pitch (Tilt): 214 Degree (-72 to 142 Degree)
    Roll: 322 Degree (-251 to 71 Degree)
    Yaw (Pan): 360 Degree

    Controllable Range:
    Pitch (Tilt): 207 Degree (-71 to 136 Degree)
    Roll: 70 Degree (-35 to 35 Degree)
    Yaw (Pan): 360 Degree Unlimited

Compatibility

Jump to...
  • Camera Control

    Sony:
    A1; A9; A9II; A9M2; A7M2; A7R2; A7S2; A7M3; A7M4; A7R3; A7S3; A7R4; A7R5; A7C; FX6; ILME-FX3

    Nikon:
    D850; D780; D810; D750; D610; D7500; D6; Z9; Z8; Z50; Z5; Z6; Z6II; Z7; Z7II

    Canon:
    1DX MARK III; IDX MARK II; 5DS; 5DS R; 5D MARK III; 5D MARK IV; 6D MARK II; 6D; 90D; 80D; 850D; 800D; 200D II; EOS R; R5; R6; R5C; R7; R8; R50; R10; RP; C70

  • Camera Control (Contd.)

    Panasonic:
    G9; GH5S; GH5; GH6; DC-BGH1; S5; S1; S1H

    Fujifilm:
    X-H1; X-T3; X-T4; X-T5; X-H2S

    ZCAM:
    E2C; E2; E2 F6

    SIGMA:
    FP

    BMPCC:
    4K; 6K; 6K PRO

  • Camera Mounting Screw

    3x 1/4"-20 Male

Connectivity

Jump to...
  • Inputs/Outputs

    1x USB-C (Power / Firmware Updates)
    1x USB-C (Control / Video)
    2x USB-C (Control)

  • Wireless Frequency

    2.4 GHz

  • Wireless Protocol

    Bluetooth 5.0

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ZY Play
    Functionality: Adjust Settings, Firmware Update, Remote Control, Setup

  • Operating Voltage

    11.0 to 16.8 VDC

  • Operating Current

    200 to 14500 mA

Environmental

Jump to...
  • Operating Temperature

    14 to 77 Degree F (-10 to 25 Degree C)

Battery

Jump to...
  • Battery Capacity

    2600 mAh

  • Battery Runtime

    12 Hours

  • Battery Charging Time

    1.5 Hours

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Display Type

    Fixed Touchscreen LCD

  • Mounting

    4x 1/4"-20 Female

  • Dimensions

    13.4 x 11 x 2.8" (340 x 280 x 70mm)

  • Weight

    Without Tripod: 3.68 lbs (1.67kg)

Related Articles & Videos

5 Best Gimbals and Stabilizers for New Filmmakers

5 Best Gimbals and Stabilizers for New Filmmakers

In search for the best gimbals or just learning about stabilizers? Here are popular and budget-friendly options.
Read more

About hiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit - SKU#1910778

New intelligent Balance Indication

Balance indicator lights added to the motors provide a timely reminder for precise balance calibration. If it is not levelled, the corresponding shaft motor balance indicator will provide the corresponding reminder light effect.

New intelligent Balance Indication

Freely Switch Between Horizontal & Vertical Shots

Boasts an innovative quick-release module that integrates horizontal and vertical lock structure, enabling effortless switching between native landscape and portrait shooting modes.

Freely Switch Between Horizontal & Vertical Shots

Versatile Sling Grip

The extendable sling grip can be adjusted to the gimbal's central axis, allowing for easy switching between sling mode and two-handed modes. The 1/4" screw hole on the grip unlocks more combination possibilities of lights and accessories.

Versatile Sling Grip

Upgraded Wrist Rest

The flexible wrist rest structure features energy-saving adjustment and skin-friendly texture, making creation effortless and comfortable.

Upgraded Wrist Rest

Built-in 10W Fill Light

The built-in 10W fill light adds to the portability of quality shooting, bringing you a lightweight experience than ever with pro LED lighting. Equipped with a light cover to provide ideal light effect for the creation of shooting environment.

Built-in 10W Fill Light

Customize Function Settings

The trigger button and front dial support customizable parameter adjustment, such as ISO, shutter and aperture, as well as focus motor and gimbal mode control, making the creative process more intuitive and convenient.

Customize Function Settings

Upgraded Bluetooth Shutter Control

Crane 4 supports Bluetooth shutter control with mainstream cameras. You can start/stop recording or trigger photo-taking functions via the recording button, experiencing a seamless shooting like never before.

Upgraded Bluetooth Shutter Control

Efficient Color Screen

1.22 inch touch control Chinese and English color screen supports multiple functional adjustments, built-in motion timelapse and other functions.

Efficient Color Screen

Thoughtful Design

Built-in magnetic tightening wrench for easy disassembly and installation of auxiliary equipment. The shaft arm is equipped with a silicone protective cover to reduce wear and tear caused by carrying the gimbal.

Thoughtful Design

Excellent Focus Performance

With the built-in dual follow focus interface, Crane 4 can be paired with external dual servo focus controllers to provide a precise focusing experience.

Excellent Focus Performance

Wide Range of Professional Accessories

With the TransMount image transfer system, you can achieve excellent remote monitoring and collaborative authoring. It also supports matching and focal assembly to ensure that professional creation is not limited by equipment.

Wide Range of Professional Accessories

Strong Battery Life, Long Standby

Four 18650 batteries can meet the needs of high-intensity shooting for a day, and PD fast charge supports charging while using.

Strong Battery Life, Long Standby

Because creativity knows no bounds, the CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit from ZHIYUN is designed to empower creators with an unmatched lightweight experience, exceptional stability, and a powerful payload capacity. This innovative tool is at the forefront of breaking creative boundaries, offering a seamless blend of professional-grade functionality and user-friendly design.

The ergonomic precision of the CRANE 4 ensures a less burdensome, more comfortable shooting experience. Its lightweight design ensures superb handling, proving that professional-grade equipment doesn't have to be cumbersome.

The CRANE 4 features an innovative quick-release module that integrates a horizontal and vertical lock structure. This allows for effortless switching between native landscape and portrait shooting modes, catering to your every creative whim.

The revolutionary Sling Mode offers more precise control, with an adjustable sling grip and a wrist rest that supports fine-tuning angle adjustment. This significantly reduces shooting fatigue while providing more precise movement control. The extendable sling grip can be adjusted to the gimbal's central axis, allowing for easy switching between sling mode and two-handed mode.

The CRANE 4 is compatible with full-frame DSLR and compact cinema cameras, thanks to its longer arm length, stronger motors, and extended quick release plate. It offers a balance indicator light on each motor for precise balance calibration, ensuring your shots are always perfectly balanced.

The built-in 10W fill light offers a max illuminance of 3200Lux, a color temperature range of 2700K-5500K, and a CRI of 95+. This enhances the portability of quality shooting, providing professional LED lighting in a lightweight package.

The CRANE 4 supports Bluetooth shutter control with mainstream cameras, allowing you to start/stop recording or trigger photo-taking functions via the recording button for a seamless shooting experience. The 1.22-inch color touchscreen supports multiple adjustments and includes built-in features such as motion timelapse, putting creativity at your fingertips.

The CRANE 4 also comes with a magnetic tightening wrench and a silicone protective sleeve to reduce wear and tear on the axis arms. The trigger button and front dial support customizable parameter adjustment, such as ISO, shutter speed, and aperture, as well as focus motor and gimbal mode control.

Expand your creative possibilities with the CRANE 4's compatibility with a rich selection of professional accessories. Paired with follow-focus motors, you can break the limits of professional filmmaking. The built-in dual follow focus ports allow for a precise focusing experience through external dual servo focus controllers.

With four 18650 batteries, the CRANE 4 supports your whole-day shooting and allows for simultaneous charging and shooting. With a runtime of up to 12 hours and support for PD Fast Charge, your creative journey will be seamless and uninterrupted.

In conclusion, the CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit is a comprehensive creative tool designed to elevate your filmmaking experience.

hiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit - SKU#1910778 Features

  • Precise Balance Calibration: New intelligent balance indicator lights
  • Freely Switch: Horizontal and vertical lock structure
  • Energy-saving Adjustment: Flexible wrist rest & Extendable sling grip
  • Easier Control: Bluetooth shutter control
  • Intimate Detail Design: Built-in magnetic tightening wrench & protective cover

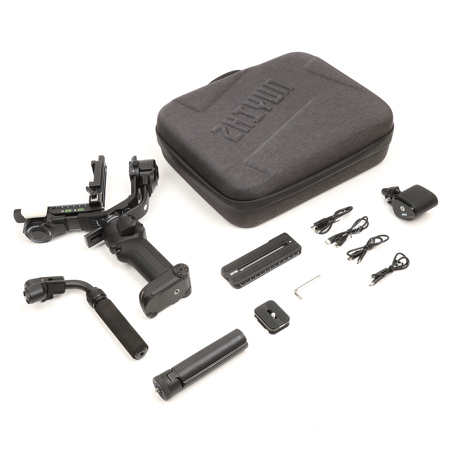

What's in the box:

  • Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer
  • Mini Tripod
  • Lower QR Plate
  • Upper QR Plate
  • Camera QR Plate
  • Sling Grip
  • Wrist Rest
  • USB-C To Sony Multi Control Cable
  • USB-C To Mini-USB Canon Control Cable
  • USB-C To Micro-USB Canon Control Cable
  • USB-C To USB-C Panasonic Control Cable
  • Aftermarket USB-C Cable
  • Fill Light Diffuser
  • 1x 1/4"-20 Screw
  • Firmware v1.76
  • Carrying Case
  • Item Note: Missing USB-C Charging Cable; Lens Support; 2x 1/4"-20 Screws; 3/8"-16 Screw
