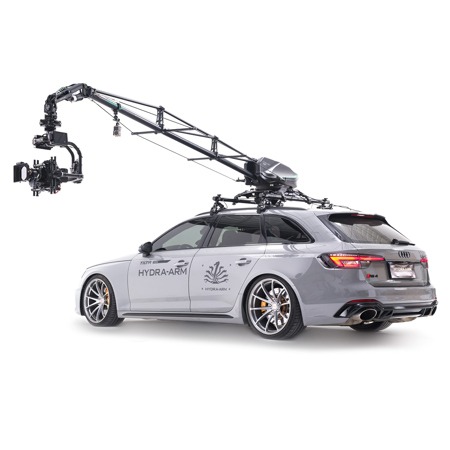

Used Tilta Hydra Arm Mini Cinema Camera Car Crane Pro Kit, V-Mount

How to elevate your filmmaking experience The Hydra-Arm Mini Cinema Camera Car Crane Pro Kit, V-Mount, is your answer. This ultimate cinema camera car crane brings complex vehicle-mounted cinematography within your reach, making dynamic, moving shots more accessible than ever before.

Designed with portability in mind, this lightweight system is easy to use, enabling you to capture stunning footage from multiple angles while on the move. Although it's specifically designed for the RS 3 PRO and RS 2, it boasts high compatibility with a variety of gimbals and camera systems, including the Ronin 4D, Ronin MX, and Freefly Movi Pro.

The Hydra-Arm Mini's unique, counterweight-free design simplifies setup and enhances safety. Users can concentrate on one end of the arm at any given time, making operation smoother and more efficient. The Pro Kit comes with suction cups, speed rail, and ratchet straps for easy mounting on most vehicles capable of supporting the arm's 176lb weight, excluding the gimbal or camera.

For added versatility, optional suction cup kits are available for vehicles with various sized sunroofs, including panoramic ones. An optional Electronic Kit offers remote monitoring of suction cup pressure for enhanced safety. The Shock Absorbing Arm stabilizes the gimbal on uneven surfaces and can be adjusted for different payloads. The Shock Absorbing Head can be individually adjusted on both the horizontal and vertical axis.

The included Controller connects via a wired connection, ensuring reliable communication with the arm. It provides the operator with various options for the tilt and pan axis, including speed, dampening, and range of motion limitations for each axis individually. Custom user settings allow the operator to select from a range of configurations for optimal comfort and control.

The Pro Mode is an expanded control option that enables users to operate the Hydra Arm Mini and an RS2/RS3 Pro Gimbal simultaneously through the controller. However, this feature is not recommended for most shooting situations and should be used with proper precautions.

The system can support speeds of up to 74 mph (120 km/h) in ideal conditions, but it's advisable to keep speeds at or below 37 mph (60km/h) when using heavier cameras or lighter gimbals. The operating speeds are primarily influenced by camera weight, gimbal strength, and weather conditions.

The Hydra Arm Mini is compatible with other gimbals that can be mounted via 1/4"-20 threads, powered via V-Mount batteries, and stay within the 22lb weight limit. The system includes a V-Mount Battery Plate mounted on the end of the arm, allowing users to power their gimbal via the included P-Tap to 2 Pin Power Cable or with a different cable if needed.

The arm does not have any power or video passthrough features, meaning you will need to utilize a wireless video transmitter (not included) and power your camera via onboard batteries or the Gold/V-Mount battery plate found on the arm.

The Hydra Arm Mini's innovative Pro Mode offers professional control options, supporting multiple control configurations for masterful camera movement. Its modular design supports quick assembly and efficient packing, making it ideal for camera cars traveling from set to set. The mounting brackets are made of high-strength composite carbon fiber material with optimized structural design, ensuring durability and lightweight operation.

With its real-time pressure monitoring feature, the controller monitors suction pressure, providing a suction cup status report to guarantee equipment safety. This cinema camera car crane can endure extreme conditions, from 122 Degree F (50 Degree C) heat to 13,780ft (4200m) altitude and 5 Degree F (-15 Degree C) cold, making it a versatile tool for a wide range of working conditions.

In conclusion, the Hydra-Arm Mini Cinema Camera Car Crane Pro Kit, V-Mount, is a high-quality, versatile, and reliable tool for professional filmmakers seeking to capture dynamic, moving shots with ease and precision.
