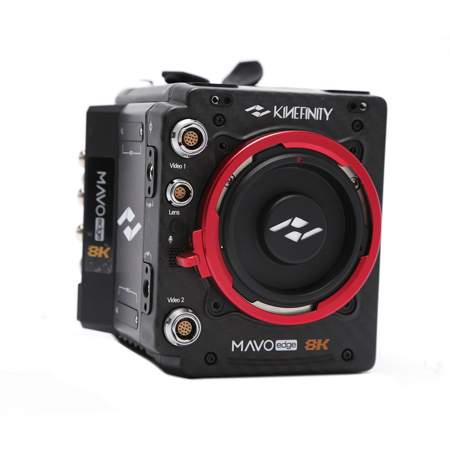

Used Kinefinity MAVO Edge 8K Digital Cinema Camera (30 Hours)

SKU: US1919690 MFR: A010-001-01
$7,516.00
New: $11,999.00
Used Savings: $4483 (37%)
OR
Earn VIP Reward Points

What`s in the box:

  • Kinefinity MAVO Edge 8K Digital Cinema Camera
  • (Recording Media and Lens Adapters Not Included)
  • Antenna
  • Hard Case
  • USB-C Flash Drive

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$284.99

3 Year

$449.99

4 Year

$607.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Kinefinity MAVO Edge 8K Specifications

CMOS Imaging Sensor & Filters

CMOS Imaging Sensor & Filters

Jump to...
  • Imaging Sensor

    8K 3:2 Full Frame CMOS Imaging Sensor

  • Max Record Res

    8192x5288, 44.7M Pixels

  • Active Area

    36x24mm, Dia. 43.3mm

  • Dual Base ISO

    Regular Base ISO: 640 (from 250-800)
    High Base ISO: 2560 (from 800 to 16000)

  • Latitude

    >14 stops

  • Shutter Angle

    0.7 Degree -358 Degree with rolling shutter

  • Lens Mount

    Native KineMOUNT with Short FFD Adapters: PL/LPL/Active EF/passive E

  • Optical Filter

    Replaceable OLPF with UV and IR-cut filter

  • ND Filter

    Built-in motorized: Clear and e-ND from 0.6 to 2.1

Resolution, Frame Rate & Optical Format

Jump to...
  • Full Frame

    FF 8K OG:
    8192x5288, 2-45fps
    ProRes
    36x23.3mm, Dia. 42.9mm

    FF 8K DCI:
    8192x4320, 2-55fps
    ProRes
    36x19mm, Dia. 40.7mm

    FF 8K 2.4:1:
    8192x3384, 2-70fps
    ProRes
    36x14.9mm, Dia. 39.0mm

    FF 8K UHD:
    7680x4320, 2-55fps
    ProRes
    33.8x19mm, Dia. 38.7mm

    FF 7.6K 2.4:1:
    7680x3200, 2-72fps
    ProRes
    33.8x14.1mm, Dia. 36.6mm

  • Full Frame (Contd.)

    FF 7.2K 3:2:
    7168x4760, 2-50fps
    ProRes
    31.5x21mm, Dia. 37.9mm

    FF 6.4K 4:2:
    6400x4760, 2-50fps
    ProRes
    28.1x21mm, Dia. 35.1mm

    FF 5.7K 6:5:
    5760x4760, 2-50fps
    ProRes
    25.3x21mm, Dia. 32.9mm

    FF 4.8K 3:2 (Oversample):
    4864x3176, 2-50fps
    ProRes
    31.5x21mm, Dia. 37.9mm

    FF 4.2K 4:3 (Oversample):
    4224x3176, 2-50fps
    ProRes
    28.1x21mm, Dia. 35.1mm

  • Full Frame (Contd..)

    FF 4K OG (Oversample):
    4096x2644, 2-45fps
    ProRes
    36x23.3mm, Dia. 42.9mm

    FF 4K DCI (Oversample):
    4096x2160, 2-55fps
    ProRes
    36x19mm, Dia. 40.7mm

    FF 4K 2.4:1 (Oversample):
    4096x1692, 2-70fps
    ProRes
    36x14.9mm, Dia. 39.0mm

    FF 3.8K 6:5 (Oversample):
    3840x3176, 2-50fps
    ProRes
    25.3x21mm, Dia. 32.9mm

  • Full Frame (Contd...)

    FF 4K UHD (Oversample):
    3840x2160, 2-55fps
    ProRes
    33.8x19mm, Dia. 38.7mm

    FF 3.8K 2.4:1 (Oversample):
    3840x1600, 2-70fps
    ProRes
    33.8x14.1mm, Dia. 36.6mm

  • S35

    S35 6K 3:2:
    6144x3840, 2-60fps
    ProRes
    27x16.8mm, Dia.31.8mm

    S35 6K DCI:
    6144x3240, 2-72fps
    ProRes
    27x14.2mm, Dia.30.5mm

    S35 6K 2.4:1:
    6144x2560, 2-92fps
    ProRes
    27x11.3mm, Dia.29.3mm

    S35 6K UHD:
    5760x3240, 2-72fps
    ProRes
    25.2x14.2mm, Dia.29.0mm

    S35 5K 4:3:
    5120x3840, 2-60fps
    ProRes
    22.5x16.8mm, Dia.28.1mm

  • S35 (Contd.)

    S35 5K DCI:
    5120x2700, 2-85fps
    ProRes
    22.5x11.9mm, Dia.25.5mm

    S35 5K 2.4:1:
    5120x2160, 2-108fps
    ProRes
    22.5x9.5mm, Dia.24.4mm

    S35 4.8K 6:5:
    4864x3840, 2-60fps
    ProRes
    21.4x16.8mm, Dia.27.2mm

    S35 4K 3:2 (Oversample):
    4096x2560, 2-60fps
    ProRes
    27x16.8mm, Dia.31.8mm

    S35 4K DCI (Oversample):
    4096x2160, 2-72fps
    ProRes
    27x14.2mm, Dia.30.5mm

  • S35 (Contd..)

    S35 4K UHD (Oversample):
    3840x2160, 2-72fps
    ProRes
    25.2x14.2mm, Dia.29.0mm

    S35 3.8K 2.4:1 (Oversample):
    3840x1600, 2-92fps
    ProRes
    25.2x10.5mm, Dia.27.3mm

    S35 3.4K 4:3 (Oversample):
    3456x2560, 2-60fps
    ProRes
    22.5x16.8mm, Dia.28.1mm

    S35 3K 6:5 (Oversample):
    3072x2560, 2-60fps
    ProRes
    21.4x16.8mm, Dia.27.2mm

  • Other Cropping

    4K DCI:
    4096x2160, 2-108fps
    ProRes

    4K 2.4:1:
    4096x1692, 2-130fps
    ProRes

    4K UHD:
    3840x2160, 2-108fps
    ProRes

    3.8K 2.4:1:
    3840x1600, 2-145fps
    ProRes

    2K DCI:
    2048x1080, 2-215fps
    ProRes

    2K 2.4:1:
    2048x800, 2-268fps
    ProRes

    2K FHD:
    1920x1080, 2-215fps
    ProRes

    1.9K 2.4:1:
    1920x800, 2-286fps
    ProRes

Codec, Color and Record Media

Jump to...
  • Record Codec

    Codec Type: ProRes4444XQ
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes4444
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes422HQ
    Codec Format: Quicktime mov
    Bit Depth: 10bits

  • Color, LUT

    KineLOG3, Neutral(Rec 709), Support Custom 3D LUT

  • Record Media

    Media Slot x2, for KineMAG Nano SSD based on NVMe M.2 SSD

  • Media Size (W x H x L)

    1.5 x 3.4 x 0.3" (40 x 88 x 9mm)

Monitoring

Jump to...
  • Monitoring

    Proprietary Video Port x2, for Kinefinity Viewfinder, KineMON-5U, KineMON-7U
    3G/1.5G SDI x2 with Meta data (regular BNC)
    USB-C usb x1 for iOS Device with Kinefinity App

Audio In & Out

Jump to...
  • Audio sampling spec

    Linear PCM, 24bits, 48KHz

  • Audio input

    In-cam mono MIC
    3.5mm Stereo MIC
    48V Phantom Power Balanced Input x2 (regular XLR)

  • Audio output

    3.5mm Stereo Audio Output

Network and Wireless Interface

Jump to...
  • Wired

    Gigabit Ethernet (RJ45 type) for live stream, camera control and data transfer

  • Wireless

    WI-FI 5 for live stream, camera control
    Bluetooth 5.0
    3-axis accelerometer

Sync and Control

Jump to...
  • Timecode

    Linear TC In&Out (0B5P socket)

  • Sync

    Genlock (regular BNC)

  • Control

    Lens with RS232, Power output (0B6P)

  • Multi-sync, Control

    SYNC with RS232 and Kinefinity camera sync(0B7P)

  • RS

    Rec trigger input with Power output (fisher 3P)

  • Extension

    EXT x2(for pogo-pin, 10 contacts)

Power In & Out

Jump to...
  • Power consumption

    32W, when 8K 25p, liveview

  • Power Input

    DC Input (1B2P), 11-26V
    Integrated V-mount battery plate, V-mount battery or BP-U compatible
    UPS EXT 3(for pogo-pin, 8 contacts)

  • Power outputs

    D-tap x1, Vbat@3A; Vbat as DC in or BAT in
    RS x1, Vbat@3A
    Lens x1, Vbat@3A

Environmental

Jump to...
  • Operating Temp

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Material

    Carbon Fiber with Aluminum Alloy

  • Dimensions (W x H x L)

    4.1 x 4.8 x 4.3" (106 x 124 x 109mm) (Without protrusion)

  • Weight

    3.3 lbs (1.5kg)

8 Accessories for Kinefinity MAVO Edge 8K Digital Cinema Camera (30 Hours)

  • All Accessories (8)
  • Microphones & Audio (2)
  • Flash & Lighting (6)

About Kinefinity MAVO Edge 8K Digital Cinema Camera - (30 Hours) SKU#1919690

It is with great excitement that we introduce the Kinefinity MAVO Edge 8K Digital Cinema Camera, a groundbreaking addition to the world of large-format cinematography. This state-of-the-art camera boasts a robust carbon fiber body, designed to be both compact and lightweight, making it ideal for filmmakers on the move. At its core lies a remarkable 8K 70P CMOS imaging sensor, capable of capturing stunning visuals with 45 million pixels on a 36x24mm full-frame sensor. This sensor features dual native ISO settings of 640/2560, supports 8K Wide up to 70fps, and offers an impressive latitude of over 14 stops, ensuring breathtaking image quality with natural color reproduction, pleasing skin tones, and low noise.

The MAVO Edge is engineered to push the boundaries of creativity, whether you're working on feature films, VFX-heavy productions, high-end TV commercials, or wildlife documentaries. Its ability to deliver high-resolution motion pictures with cinematic detail and dynamic range makes it a versatile tool for any project.

One of the standout features of the MAVO Edge is its ability to record directly in Apple's ProRes4444/XQ codec, a highly sought-after format in the video industry. This in-camera capability streamlines the workflow by handling the complex processes of 8K CMOS image capture, delicate color processing, and 8K ProRes4444 encoding within its compact body. Additionally, the camera supports ProRes422HQ and H264 proxy formats, providing flexibility for various post-production needs. ProRes, recognized by Hollywood's filmmaking industry, is an ideal intermediate codec for high-dynamic-range (HDR) content creation and is compatible with editing software like Apple Final Cut Pro X, Assimilate SCRATCH, and Filmlight Baselight.

The MAVO Edge's integration extends beyond its imaging capabilities. Its carbon fiber body incorporates a full-spectrum e-ND system, dual SSD slots with high-speed NVMe M.2-based KineMAG Nano, and a comprehensive networking and power solution. The camera integrates the functions of KineBACK-W, offering a range of professional ports, including dual XLR ports for Phantom-powered 48V microphones, dual 1.5G/3G-SDI monitoring outputs with metadata and audio embedded, time code input and output, SYNC, DC power output, and an innovative hybrid battery plate with D-Tap port. Additionally, it features a 12V RS port and Lens port (12V) to power third-party accessories like wireless video transmitters and wireless lens motors directly.

In summary, the Kinefinity MAVO Edge 8K Digital Cinema Camera is a powerful, versatile tool that elevates the Kinefinity camera system to new heights, offering filmmakers the freedom to create without limitations.

Kinefinity MAVO Edge 8K Digital Cinema Camera - (30 Hours) SKU#1919690 Features

  • Large-format 8K cine camera
  • Carbon fiber camera body
  • Stunning 8K 70P CMOS imaging sensor
  • In-Camera Recording of 8K ProRes 4444 XQ
  • Motorized Clear and e-ND
  • 0.6-2.1 or 2-7 stops
  • Continuous tuning over range
  • Full-spectrum with auto calibration
  • Works with all Kine adapters
  • 1080p H264 stream in-camera
  • Stream over WI-FI 5 for Kinefinity App
  • Stream over USB-C for Kinefinity App
  • Stream, Control and Data on RJ45
  • 2x EXT, High-speed path with power
  • For external 5G/LTE Dongle
  • Stream over 5G to Internet
  • Upload in-cam proxy to Cloud
  • 5G Connectivity with everything
  • Hybrid battery plate for two type
  • Regular V-Mount Battery, like KineBAT 75
  • Internal Battery Compartment for BP-U
  • DC input, 2Pin with push-pull
  • Bottom extension input, for UPS bottom plate

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Kinefinity MAVO Edge 8K Digital Cinema Camera
  • (Recording Media and Lens Adapters Not Included)
  • Antenna
  • Hard Case
  • USB-C Flash Drive
