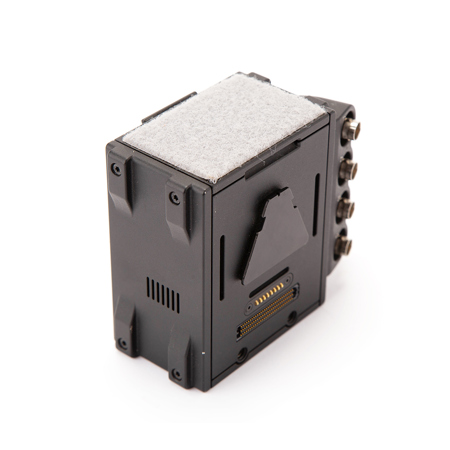

RED Digital Cinema Redcast 4K Module for EPIC DRAGON and SCARLET DRAGON Cameras

Picture does not represent the actual item
See what's in the box

See all Red Digital Cinema items

Used RED Digital Cinema Redcast 4K Module for EPIC DRAGON and SCARLET DRAGON Cameras

SKU: US1920113

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

RED Digital Cinema Redcast 4K Module Specifications

  • DSMC Compatibility

    EPIC DRAGON and SCARLET DRAGON ONLY (NOT MYSTERIUM-X) Cameras

  • Additional Mounting

    5x 1/4-20 mounting points on top

  • Construction

    Machined, Tooled (Early models are machined)

  • Material

    Aluminum

  • Coating

    Black powder coat

  • Broadcast Output Format

    3840 x 2160p (4K UHD), up to 59.94 FPS

  • Broadcast Output Frame Rates

    23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (video)

    Currently selected resolution settings, up to 6K up to 59.94 FPS

  • SMPTE Time Code

    Time Code (TC)

  • 3G/HD-SDI OUTPUT

    4x BNC (rated for 3G-SDI)
    4x uncompressed 1080p Level-A YCbCr 4:2:2 10-bit video (Rec 709)
    HDR-2084 (SMPTE 2084, High Dynamic Range)
    3G-SDI (3G): Meets SMPTE ST 424 and 425 when frame rates > 30Hz
    HD-SDI (1.5G): Meets SMPTE ST 292 when frame rates < 30 Hz
    HD (1080p): SMPTE ST 274

  • Genlock In

    1x BNC, 75Ohms

  • Timecode In

    1x BNC, 75Ohms
    SMPTE ST 12-2

  • Power Consumption

    Approximately 15 W

  • Firmware Requirement

    DSMC Firmware v5.2.28 or later

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Operating Humidity

    0 to 85%, non-condensing

  • Storage Humidity

    0 to 85%, non-condensing

  • Dimensions (HxWxD)

    4.29 x 5.43 x 2.24" (108.97 x 137.92 x 56.90mm)

  • Weight

    1.60 lbs (0.73kg)

About RED Digital Cinema Redcast 4K Module for EPIC DRAGON and SCARLET DRAGON Cameras

The REDCAST Module is a revolutionary workflow solution for EPIC DRAGON and SCARLET DRAGON cameras-combining live HDR-2084, 3D LUT capabilities and 4K live broadcast and streaming all into a single module. Providing four 3G-SDI output connections, the REDCAST Module enables professionals to enhance their workflow with the capability to broadcast or live-stream up to 4K video at 60 frames per second. Output 4K video or monitor four independent 1080p feeds, each with unique LUTs or HDR-specced for the SMPTE 2084, the most robust HDR standard available today.

The REDCAST Module requires a Module Adaptor or +1 Adaptor Module to be connected to the camera BRAIN. Only power/battery modules or the REDMOTE can be attached to the rear of the module. Five 1/4-20 mounting holes are built into the top of the module, allowing for various mechanical peripherals to be attached.

Note

Using a LUT requires that your DSMC is on firmware v6.0.x or later.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Digital Cinema Redcast 4K Module
