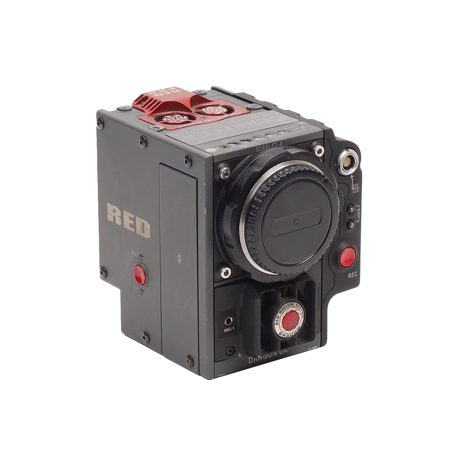

Used RED Digital Cinema RED SCARLET DRAGON Camera with Al Canon Mount, RED MINI-MAG Side SSD Module (1915 Hours)

Item Note: Minor Blemish On OLPF; Missing AC Adapter

SKU: US1922101 MFR: 710-0170
Earn VIP Reward Points

What`s in the box:

  • RED Digital Cinema RED SCARLET DRAGON Camera
  • Al Canon Mount
  • RED MINI-MAG Side SSD Module
  • DSMC Standard OLPF
  • DSMC Fan 2.0 Upgrade
  • Firmware v6.3.106 ** Item Note: Minor Blemish On OLPF; Missing AC Adapter **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema RED SCARLET DRAGON Specifications

  • Sensor

    19 MEGAPIXEL RED DRAGON

  • Pixel Array

    6144 (h) x 3160 (v)

  • S/N Ratio

    80 dB

  • Dynamic Range

    16.5+ stops

  • Max Image Area

    6144 (h) x 3160 (v)

  • Lens Coverage

    30.7mm (h) x 15.8mm (v) x 34.5 mm (d)

  • Lens Mount

    DSMC Al Canon Mount

  • Max Depth of Field

    Equivalent to S35mm (Motion)/APS-H (Still) lenses

  • Acquisition Formats

    6K RAW (Full Frame)
    5K RAW (Full Frame, 2:1, 2.4:1, 16:9)
    4K RAW (Full Frame, 2:1, 2.4:1, 16:9)
    3K RAW (Full Frame, 2:1, 2.4:1, 16:9)
    2K RAW (Full Frame, 2:1, 2.4:1, 16:9)

  • Project Frame Rates

    23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions

  • Delivery Formats

    4K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
    1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
    1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
    Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4

  • Program Output

    HD-SDI Clean Feed
    2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
    SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

  • Monitor Output

    HD-SDI and HDMI with Frame Guides and Lookaround
    2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
    SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

  • Digital Media RED MINI-MAG

    512GB

  • Maximum Frames Per Second (FPS)

    6K FF: 12 FPS (in Burst mode)
    5K FF: 48 FPS
    4K FF: 60 FPS
    3K FF: 80 FPS
    2K FF: 120 FPS

    5K 2.4:1: 60 FPS
    4K 2.4:1: 75 FPS
    3K 2.4:1: 100 FPS
    2K 2.4:1: 150 FPS

  • Audio

    2 channel, uncompressed, 24 bit, 48KHz.

  • Monitoring Options

    RED Touch 5.0" LCD
    RED PRO 7" LCD
    RED Touch 7.0" LCD
    RED Touch 9.0" LCD
    BOMB EVF (LCOS) High Definition Viewfinder
    BOMB EVF (OLED) High Definition Viewfinder

  • Remote Control

    REDLINK Wireless, Ethernet, RS232, GPI Trigger

  • Construction

    Aluminum Alloy

  • Operating Temperature Range

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature Range

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Weight

    5 lbs (Body only)

About RED SCARLET DRAGON Camera with Al Canon Mount, RED MINI-MAG Side SSD Module

SCARLET

SCARLET, All Grown Up
With the 6K RED DRAGON sensor, you can capture over 9x more resolution than HD. Unrivaled detail and impressive native exposure eclipse 35mm film in both latitude and image density. Industry leading specs distinguish the SCARLET DRAGON as a model for image innovation, helming the evolution of digital cinema technology.

Creative Flexibility
Resolution is more than just attention to detail. From large objects to granule textures, 6K images cultivate the nuance of every image, leaving nothing behind. Improvements to micro-contrast and MTF produce a cleaner image, drastically reducing moir and aliasing artifacts. When outputting 6K files to 4K or HD, your image will appear more refined and detailed compared to those captured at lower resolutions.

Stills from Motion
6K resolution translates to over 19 MP, packing the same amount of detail you'd expect from your DSLR into a cinema camera. When you can capture 5K 2.4:1 stills at up to 60 frames per second (fps) or 5K Full Format stills at 48 fps, you get more chances than ever to capture the perfect shot. Every still is RAW and Adobe Photoshop compatible, which means your workflow doesn't need to change-even as technology does. The RED DRAGON sensor blurs the line between motion and still cameras, giving you the best of both worlds.

New Sensor, Same Gear
Just because your specs changed, doesn't mean your gear has to. All existing accessories, rail components, and modules designed for EPIC or SCARLET are compatible regardless of what sensor is installed. Instead of making your accessories obsolete, RED proudly takes great care in making sure your equipment lasts as long as possible. Change has never been so easy.

Your Workflow, Superchanged
A new sensor means a new look, and REDCINE-X PRO gives you all tools you need to dial in your image the way you want it. With its latitude at 6K resolution, you can play with color, curves, and composition with less limitations than ever before. Now with the introduction of the RED ROCKET-X card, your RED workflow just got 5x faster than ever before. REDCINE-X PRO harnesses the power you need to tame your 6K SCARLET DRAGON footage and is available for free only on RED.com.

SCARLET Features

Improved Color Science
Your image is only as good as the color science behind it. The new RED DRAGON sensor features our most advanced color science yet, taking advantage of vastly improved dynamic range and low-light capabilities. Skin tones are softer, primary colors are more vibrant, and subtle color variations are discernibly remarkable. SCARLET DRAGON cameras capture images that are true to life, with colors that can only be described as "brilliant".

Ultimate Lens Compatibility
Leica-M, Canon, Nikon, and PL lenses are all compatible with SCARLET DRAGON cameras. All mounts are easy to swap out and are engineered to fit precisely, without ever having to adjust back focus. A redesigned sensor window allows for the use of wider Leica-M and Angenieux lenses, while also providing a larger field of view when shooting. Every lens is a new perspective and the SCARLET DRAGON lets you pick the one that works for you.

High Dynamic Range
The RED DRAGON offers dynamic range that was once thought impossible for a digital sensor. Such wide latitude provides cinematographers and photographers alike with the ability to take on challenging lighting conditions, without the need for excessive filtration. Improved low-light capabilities let you shoot at ISO 2000 and still produce a clean image fit for theatres or publication. Dilated exposure and improved sensitivity makes it easier to take on the unpredictable and capture the unbelievable.

Enhanced Portability
Never miss a moment with the lightweight design of SCARLET DRAGON. Whether capturing aerial footage or incorporating into a run-and-gun rig, the SCARLET DRAGON allows you to optimize your setup for any shoot. Immerse yourself in the action, and capture footage from every angle.

Get the Perfect Shot
The SCARLET DRAGON clocks 48 fps at 5K Full Format resolution, merging the worlds of hi-speed with hi-resolution. For even faster speeds, simply drop your resolution and take advantage of maximum speeds of up to 150 fps. With blazing fast hi-speed capabilities, there's nothing that gets past your SCARLET DRAGON.

CANON MOUNT

The DSMC Canon Mount offers support for a wide variety of Canon EF and EF-S compatible lenses to use with your DSMC or DSMC2 BRAIN. Available in lightweight machined aluminum, or robust titanium-the DSMC Canon Mount offers modularity and convenience and supports autofocus and electronic iris control with compatible lenses.

The mount attaches easily to the front of your camera BRAIN and uses a dual-ring lock system to secure Canon EF and EF-S lenses. Both aluminum and titanium models feature captive mounting screws, so you'll never have to worry about searching for hardware.

• Autofocus support available for select EF lenses
• Electronic iris control available for select EF and EF-S compatible lenses
• Touch focus enabled for select lenses
• No backfocus adjustments necessary when switching mounts
• Lightweight machined aluminum or robust titanium options

RED MINI-MAG SIDE SSD MODULE

The RED MINI-MAG SIDE SSD MODULE replaces your DSMC 1.8" SSD SIDE MODULE for mounting RED MINI-MAG media. RED MINI-MAGS utilize a faster read/write speed for improved compression ratios, delivering exceptional quality at higher frame rates and resolutions. For slow motion and max resolution image capture, the RED MINI-MAG SIDE SSD MODULE can be swapped in using common hand tools to allow access to the highest performing media RED has to offer.

The RED MINI-MAG system requires that your DSMC is on firmware v5.1.34 or later.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • RED Digital Cinema RED SCARLET DRAGON Camera
  • Al Canon Mount
  • RED MINI-MAG Side SSD Module
  • DSMC Standard OLPF
  • DSMC Fan 2.0 Upgrade
  • Firmware v6.3.106
  • Item Note: Minor Blemish On OLPF; Missing AC Adapter
