AJA D4E SDI to Composite or S-Video Transcoder - SKU#1922675
AJA D4E: Picture 1 thumbnail
AJA D4E: Picture 2 thumbnail
AJA D4E: Picture 3 thumbnail
AJA D4E: Picture 4 thumbnail
AJA D4E: Picture 5 thumbnail
AJA D4E: Picture 6 thumbnail
AJA D4E: Picture 7 thumbnail
AJA D4E: Picture 8 thumbnail
AJA D4E: Picture 9 thumbnail
AJA D4E: Picture 10 thumbnail
See all AJA items
$4 PRICE DROPUsed Condition: Excellent

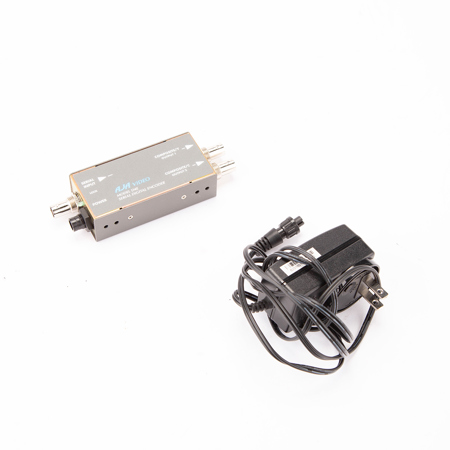

Used AJA D4E SDI to Composite or S-Video Transcoder

SKU: US1922675 MFR: D4E
Be the first to review this item
$107.00
$111.00
Save: $4 (4%)
Earn VIP Reward Points
See all Used options (2) from $80

What`s in the box:

  • AJA D4E SDI to Composite or S-Video Transcoder
  • DWP-U-R1 Power Supply

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$43.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

AJA D4E Specifications

  • Inputs

    SDI (SMPTE 259M), 1x BNC

  • Outputs

    NTSC, PAL, 2x BNC
    Or NTSC/PAL YC (S-Video), 2x BNC

  • User Controls

    Video Format
    Pedestal
    H/V Blanking
    Test Pattern (Requires valid SDI Input)

  • Power

    5VDC Regulated, 2 Watts, Power Supply Required (sold separately)

  • Size

    5.1" x 1.8" x 1" (131 x 44 x 25mm)

  • Warranty

    AJA warranty

About AJA D4E SDI to Composite or S-Video Transcoder - SKU#1922675

The AJA D4E SDI Encoder provides all-digital conversion of SDI to analog NTSC or PAL. The D4E is useful for monitoring, level and phase checking, dubbing etc. The D4E automatically adapts to NTSC or PAL video standards and outputs analog NTSC (525 line inputs) or PAL (625 line inputs). Pedestal and narrow/wide H/V blanking are user configurable via dip-switches. The D4E encodes the full dynamic range of input video. Levels below black and above white are not clipped.

AJA D4E SDI to Composite or S-Video Transcoder - SKU#1922675 Features

  • 1 SDI Input, 2 Composite/YC Analog Outputs
  • Automatic NTSC/PAL Selection
  • Built-In Test Pattern
  • Ultra Miniature Size

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA D4E SDI to Composite or S-Video Transcoder
  • DWP-U-R1 Power Supply
