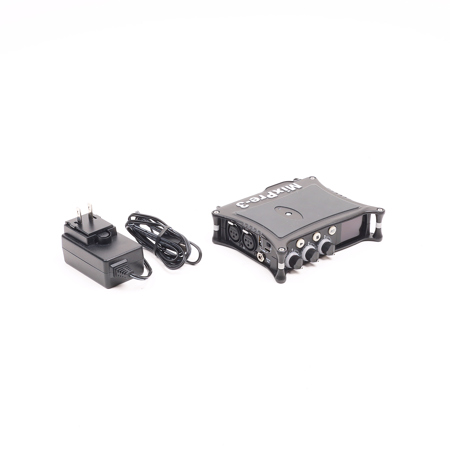

Used Sound Devices MixPre-3 II 3-Channel/5-Track Multitrack 32-Bit Field Recorder (Batteries Not Included)

SKU: US1926417

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-09-22T11:16:01

Rated 3 out of 5

Sound device pre3

Come without anything Just pre amp In description says what missing only the USB c cable

maksim s.

2020-05-12T19:16:32

Rated 5 out of 5

This is really cool!

It is what you think it is, so I won't go into that, If you looking at it then you know. So, one gripe: The battery tray is finicky and plastic. It's the only cheap-ish aspect to this whole thing. But it's not really important. I won't be using batteries like that, I'll be powering it through the usb-c connector always. If you're going to be attaching it under a camera or other thing temporarily with the 1/4 20 then just slip that allen wrench in your pocket, that magnet is strong! 32bitfloat/192 with 128gbSony SD (not on their supported list but works for me!) gives me 9 hours!!

Scott S.

2019-09-18T11:39:39

Rated 5 out of 5

Goodness Gracious

This is thing is good - reeaaalllly good. Once your ears taste the dead silence of these preamps, there ain't no going back. The small touch screen is working better than I expected. The on/off button placement and usability is not the greatest, but the sound fidelity from this unit makes up for any of the little problems. Way to go Sound Devices!

SEVAN S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sound Devices MixPre-3 II Specifications

Audio Inputs

Audio Inputs

Jump to...
  • Frequency Response

    10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate

  • THD + Noise

    0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)

  • ADC

    32 bit precision; 142dB dynamic range min (A-weighted, gain=10dB, fader=0dB)

  • Equivalent Input Noise

    -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

  • Inputs

    Mic: XLR active-balanced; 4k input
    Line: XLR active-balanced; 4k input
    Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
    USB Audio: 2 channels
    All inputs fully RF-filtered and overload protected

  • Gain

    Mic input: +6dB to +76dB
    Line input: -20dB to +30dB
    Fader: -inf to +20dB
    Headphone: -inf to +20dB
    Total, Mic-to-recording (max): +96dB
    Aux In (Mic): Gain = +10dB to +40dB
    Aux In (Line): Gain = -10dB to +20dB
    Total Aux Gain including Fader (Mic-to-recording): +60dB

  • Maximum Input Level

    Mic XLR: +14dBu (limiters on or off)
    Line XLR/ 1/4-inch: +28dBu (limiters on or off)
    Aux In (Mic): -10dBu
    Aux In (Line): +10dBu

  • Low Cut Filters

    40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital

  • Microphone Powering

    Mic XLRs: 48V via 6.8k resistors, 10mA each
    Mic 3.5mm: 3V @ 3k source

  • Limiters

    Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release

Audio Outputs

Jump to...
  • DAC feeding Stereo Out, Headphone Out

    32 bit precision; 115dB dynamic range (A-weighted)

  • L/R Out

    3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level

  • Headphones Out

    3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones

  • Audio Interface (USB-C)

    6-in/2-out (from computer); 44.1 kHz/48 kHz/96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed driverMass Storage (USB-C)USB 2.0 high speed

  • Keyboard (USB-A)

    Text entry and control

  • Thumbdrive (USB-A)

    Manual or auto-copy to drive
    Midi Control Surface (USB-A)

Recording

Jump to...
  • Maximum Record Tracks

    5 Tracks Stereo mix + 3 ISO's

  • Sampling Frequency

    44.1 kHz
    47.952 kHz
    48 kHz
    48.048 kHz
    96 kHz
    192 kHz

  • Bit Depth

    16
    24
    32 Float

  • Recording Storage

    Type: SD, SDXC, SDHC Card, & USB thumbdrive (copy only)
    Max Storage Size: 512 GB (SDXC)
    Card format: exFAT

  • File type

    Polyphonic WAV

Timecode

Jump to...
  • Timecode Modes

    Free Run
    Time of Day (file stamped w/current ToD)
    Rec Run
    Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In)
    Camera TC (file stamped w/incoming TC from cameras that output TC)

  • Timecode Frame Rates

    Auto-detects (fps): 23.98 (same as 23.976)
    24
    25
    29.97DF
    29.97ND
    30
    30DF

  • 3.5 mm Aux In

    Timecode Input
    Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)

  • 3.5 mm Stereo Out

    Timecode Output
    Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)

  • HDMI

    TC Reader via HDMI

  • Sample/Timecode Accuracy

    0.2 ppm (0.5 frames per 24 hours)

Remote Control

Jump to...
  • Bluetooth LE

    Wireless control using Wingman app

  • HDMI (micro)

    Auto-record start/stop trigger from cameras that output record flag over HDMI

  • Timecode

    Auto-record start/stop trigger via Aux In timecode

  • Touch Screen

    320x256; 1.6", color, sunlight-viewable IPS LCD

  • AA Batteries

    4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended

  • L-Mount

    Optional sled for 2x (hot-swappable) Li-ion batteries

  • From computer

    Bus-powered via USB-C port

  • AC Adapter

    MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15 W; has 4 adapter plugs for US, UK, AU & Europe

Environmental

Jump to...
  • Operating

    -4 to 140 Degree F (-20 to 60 Degree C), 0 to 90% relative humidity; (non-condensing)

  • Storage

    -40 to 185 Degree F (-40 to 85 Degree C)

Physical

Jump to...
  • Dimensions (H x W x D)

    1.40 x 5.68 x 4.35" (36 x 144 x 110mm)

  • Weight

    16.8 oz (48kg)(unpackaged, without batteries)

19 Accessories for Sound Devices MixPre-3 II 3-Channel/5-Track Multitrack 32-Bit Field Recorder (Batteries Not Included)

  • All Accessories (19)
  • Batteries & Power Supply (6)
  • Memory & Storage (1)
  • Cables & Adapters (6)
  • XLR Cables (1)
  • Headphones (5)

About Sound Devices MixPre-3 II 3-Channel/5-Track Multitrack 32-Bit Field Recorder (Batteries Not Included)

FEATURED REVIEWS

Goodness Gracious

By SEVAN S.

This is thing is good - reeaaalllly good. Once your ears taste the dead silence of these preamps, there ain't no going back. The small touch screen is working better than I expected. The on/off button placement and usability is not the greatest, but the sound fidelity from this unit makes up for any of the little problems. Way to go Sound Devices!

This is really cool!

By Scott S.

It is what you think it is, so I won't go into that, If you looking at it then you know. So, one gripe: The battery tray is finicky and plastic. It's the only cheap-ish aspect to this whole thing. But it's not really important. I won't be using batteries like that, I'll be powering it through the usb-c connector always. If you're going to be attaching it under a camera or other thing temporarily with the 1/4 20 then just slip that allen wrench in your pocket, that magnet is strong! 32bitfloat...

View full Review

Why settle for less when you can have the best in audio recording technology with the MixPre-3 II 3 Preamp 5-Track 32-Bit Float Audio Recorder This state-of-the-art device from Sound Devices is the latest in the MixPre series, boasting of firmware version 5.00 that brings a host of improvements and features to all MixPre recorders, including the new MixPre II Series.

This advanced audio recorder offers flexible USB output routing and USB hub support, enhancing your recording experience. The version 5.00 also introduces the new MixAssist Plugin, a Sound Devices' field-proven automixer that is compatible with both the MixPre Original Series and MixPre II Series. This plugin can be conveniently purchased from the Sound Devices Plugin Store.

The MixPre-3 II 3 Preamp 5-Track 32-Bit Float Audio Recorder is a versatile, durable, and high-performance device that is perfect for recording field audio, sound effects, podcasts, voice-overs, music, and audio for film. Whether you're a beginner or a professional, this device is designed to cater to your needs.

Equipped with three ultra low-noise Kashmir preamps, the MixPre-3 II allows you to record multiple actors, podcasters, or audio for small productions with superior quality. It supports a 32-bit float bit depth and a 192 kHz sample rate, offering an astounding 142 dB of dynamic range.

The MixPre-3 II is highly customizable, allowing you to adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion, and phantom power according to your preference. It also features an internal timecode generator and supports HDMI or Aux In for timecode input.

The device is compact, lightweight, and rugged, making it easy to carry and use anywhere. You can record internally to a compatible SD card or stream your podcast over USB to your computer. It can be powered by your computer, wall power, or AA or Sony L-mount batteries for recording in remote locations.

The MixPre-3 II also supports a wide range of cameras for HDMI timecode and triggers, including cameras from Blackmagic, Canon, Nikon, and Fujifilm, in addition to the already supported Sony and Panasonic cameras.

For musicians and songwriters, the MixPre-3 II offers the Musician Plugin for easy song creation using the device as a standalone recorder or USB interface. The plugin features onboard functions like overdub, bounce, reverb, and tracking to a metronome.

With the MixPre-3 II 3 Preamp 5-Track 32-Bit Float Audio Recorder, you can capture superior quality audio for any application. Trust in the industry leader in production audio recording to deliver the best in sound and build quality.

Sound Devices MixPre-3 II 3-Channel/5-Track Multitrack 32-Bit Field Recorder (Batteries Not Included) Features

  • v5.0 Firmware
  • Three ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer
  • Create a mix using the built-in 3 x 2 portable mixer
  • Record up to 5 tracks to an SD card and backup to a USB thumb drive
  • 5-in, 2-out USB audio interface streams to your computer via USB-C
  • Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz
  • Internal LTC timecode generator. Timecode In/Out via Aux In/Stereo Out
  • Timecode and record triggering via HDMI
  • USB-A for control surfaces, keyboards, and auto-copy to USB drive
  • In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power
  • Sunlight-readable color touch screen and LED metering
  • Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio
  • Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio
  • Includes a MX-4AA Battery Sled (batteries not included), MX-PSU AC Power Supply, and USB-C to USB-C cable
  • Customize with plugins from the Plugin Store

What's in the box:

  • Sound Devices MixPre-3 II 3-Channel/5-Track Multitrack 32-Bit Field Recorder
  • AC Power Supply
  • MX-4AA Battery Sled
  • Firmware v8.01
