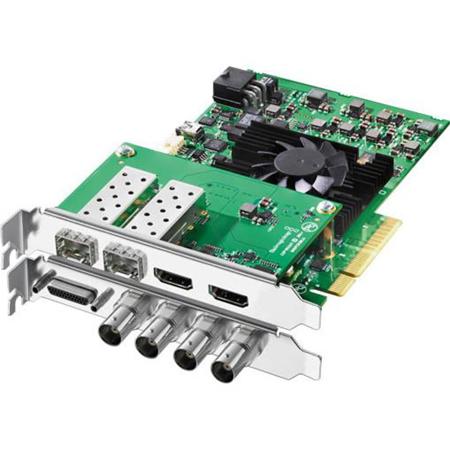

Used Blackmagic Design DeckLink 4K Extreme 12G Capture and Playback Card, SD/HD /2K/4K Format Support, SDI/Analog/HDMI Video Output, AES/EBU /SDI/Analog/HDMI Audio Output

SKU: US1929554 MFR: BDLKHDEXTR4K12G
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design DeckLink 4K Extreme 12G Capture and Playback Card
  • HDMI Mezzanine Card
  • SD Card
  • Breakout Cable for Analog and RS-422 Control
  • Original Box

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-31T12:06:10

Rated 5 out of 5

Works great

Easiest way to send 7.1.4 out to AVR.

JAMES L.

2021-08-19T18:53:55

Rated 5 out of 5

Fantastic

Blackmagic has become an incredible company. I bought their first card way back and now I?m running this. Wow. They have come a long way.

RIKK D.

2021-03-23T08:25:27

Rated 5 out of 5

Plug and Play!

We used this for our 2019 Mac Pro Online computer. Easy to install, like a plug an play. Our online editor has no complaints when it connects to all of his monitors. Really recommend this

LIONCE H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design DeckLink 4K Extreme 12G Specifications

  • DI Video Input

    2x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4:4 and 2D/3D switchable

  • SDI Video Output

    2x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4:4 and 2D/3D switchable

  • Analog Video Input

    Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD

  • Analog Video Output

    Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD

  • Analog Audio Input

    2 Channels of professional balanced analog audio via XLR connectors

  • Analog Audio Output

    2 Channels of professional balanced analog audio via XLR connectors

  • AES/EBU Audio Input

    2 Channels unbalanced with sample rate converter

  • AES/EBU Audio Output

    2 Channels unbalanced

  • SDI Audio Input

    16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD

  • SDI Audio Output

    16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD

  • HDMI Video Input

    HDMI type A connector with support for Ultra HD 4K 60p in 4:2:0

  • HDMI Video Output

    HDMI type A connector with support for Ultra HD 4K 60p in 4:2:0

  • HDMI Audio Input

    8 Channels embedded in SD, HD and Ultra HD 4K

  • HDMI Audio Output

    8 Channels embedded in SD, HD and Ultra HD 4K

  • Sync Input

    Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format

  • Device Control

    Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control

  • Computer Interface

    PCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI mezzanine card

  • Codecs

    Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4, Uncompressed 12-bit 4:4:4

  • Software

    Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux

  • Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software

  • Physical Installation

    PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

  • Software Applications 1

    Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just: in & live: cut & just: play & just: live, Softron OnTheAir, Movie Recorder and OnTheAir CG, Flash Media Encoder

  • Software Applications 2

    Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster

  • SD Format Support

    625/50i PAL, 525/59.94i NTSC

  • HD Format Support

    720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, 1080p60.

  • 2K Format Support

    2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25, 2048 x 1080p47.95, 2048 x 1080p48, 2048 x 1080p50, 2048 x 1080p59.94, 2048 x 1080p60

  • 4K Format Support

    3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 3840x2160p50, 3840x2160p59.94, 3840x2160p60

  • SDI Compliance

    4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096 x 2160p30, 4096x2160p50, 4096x2160p59.94, 4096x2160p60SMPTE 435, SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601

  • SDI Metadata Support

    VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning

  • Audio Sampling

    Television standard sample rate of 48 kHz at 24-bit

  • SDI Video Sampling

    4:2:2, 4:4:4 and 4:4:4:4

  • SDI Color Precision

    8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K

  • Color Space

    REC 601, REC 709

  • HDMI Configuration

    HDMI 1.4b supports Deep Color and automatically configures to connected display

  • Multiple Rate Support

    HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

  • Colorspace Conversion

    Hardware based real time on output

  • 3D Processing

    Dual stream and frame packed capture & playback

  • HD Down Conversion

    Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD down converted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles

  • HD Up Conversion

    Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog

  • HD Cross Conversion

    Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback

  • Real Time Effects

    Apple Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve

  • Operating Systems Supported

    Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later

  • Operating Temperature

    5deg. to 40deg. C (32deg. to 104deg. F)

  • Storage Temperature

    -20deg. to 45deg. C (-4deg. to 113deg. F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    6.9" / 175.26mm

  • Weight

    0.66lbs / 0.3kg

About Blackmagic Design DeckLink 4K Extreme 12G Capture and Playback Card SKU#1929554

FEATURED REVIEWS

Works great

By JAMES L.

Easiest way to send 7.1.4 out to AVR.

Fantastic

By RIKK D.

Blackmagic has become an incredible company. I bought their first card way back and now I?m running this. Wow. They have come a long way.

With the DeckLink 4K Extreme 12G Capture and Playback Card from Blackmagic Design, experience the pinnacle of professional video and audio capture technology. This advanced card features dual full-frame DCI 4K inputs and outputs via 12G-SDI, supporting a wide range of formats from SD, HD, Ultra HD, to full-frame DCI 4K at 4096 x 2160 resolution up to 60p.

This high-quality capture and playback card is equipped with innovative features such as 10-bit YUV or full-color bandwidth 12-bit RGB capture, AES/EBU audio, and built-in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. It's designed to work seamlessly with a variety of video formats and connections, making it an unrivaled choice for post-production work.

The DeckLink 4K Extreme 12G is perfect for capturing from cameras, decks, and live feeds directly into editing, effects, and design software applications. It supports dual link 12G-SDI, 2160p60, 4:4:4 image quality, and 3D stereoscopic for advanced feature film visual effects, editing, and color correction.

This reliable card is the first DeckLink model to support both file and tape-based workflows, delivering precise monitoring in editing and grading suites using professional SDI monitors, HDMI televisions, and even video projectors.

The DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. It supports compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video, ensuring you're working at the highest quality possible.

Leverage the latest 6G-SDI and 12G-SDI technology for full-resolution Ultra HD video capture and playback, while maintaining full compatibility with all SD and HD-SDI equipment. This card is the perfect choice for DaVinci Resolve editing and color correction, and is supported by a wide range of software applications for Mac OS X, Windows, and Linux.

Turbocharge your creativity with the DeckLink 4K Extreme 12G Capture and Playback Card, the ultimate solution for professional video and audio capture and playback.

Blackmagic Design DeckLink 4K Extreme 12G Capture and Playback Card SKU#1929554 Features

  • Advanced capture and playback card supporting SD/HD/2K/4K formats
  • Dual full-frame DCI 4K inputs and outputs via 12G-SDI for high-quality video
  • AES/EBU audio, up, down, and cross conversion for superior audio capture
  • Compatibility with a wide range of professional SDI equipment and software applications
  • Supports uncompressed video and compressed formats like ProRes and DNxHD
  • Perfect for DaVinci Resolve editing and color correction with 6G-SDI and 12G-SDI technology

Warranty Information

This used item has a FREE 1-year warranty. See details.

What's in the box:

  • Blackmagic Design DeckLink 4K Extreme 12G Capture and Playback Card
  • HDMI Mezzanine Card
  • SD Card
  • Breakout Cable for Analog and RS-422 Control
  • Original Box
