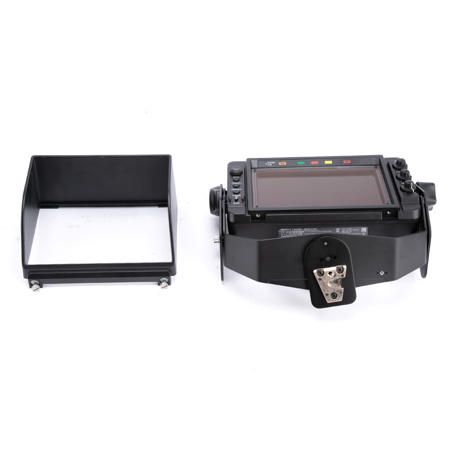

Used Sony HDVF-L750 7" LCD HD Viewfinder for Portable System Cameras, 300cd/m2 Brightness, 1080p Resolution

Item Note: Missing Hexagonal Wrench

SKU: US1930893 MFR: HDVF-L750
Earn VIP Reward Points

What`s in the box:

  • Sony HDVF-L750 7 " LCD HD Viewfinder
  • Connecting Cable (20-pin)
  • Connecting Cable (26-pin)
  • Shoe Conversion Bracket
  • 4x Attaching Screws
  • Indoor Hood
  • Number Plate
  • V-wedge Shoe Attachment
  • 4x Hexagonal Screws
  • Spiral Tube ** Item Note: Missing Hexagonal Wrench **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$161.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony HDVF-L750 Specifications

  • High contrast ratio

    1000:1

  • Power supply

    10.5 V to 17.0 V DC

  • Power consumption

    13 W

  • Operating temperature

    0 deg. C to 45 deg. C (32 deg. F to 113 deg. F)

  • Storage temperature

    -20 deg. C to +60 deg. C (-4 deg. F to +140 deg. F)

  • Display size

    7.0" color TFT transmissive LCD

  • Display area

    155.5 x 87.5mm / 6.12 x 3.44" (H/V, 16:9 aspect ratio)

  • Brightness

    300 cd/m2 (typical)

  • Resolution

    1920 x 1080

  • Color temperature

    D65

  • Supported formats

    1080/59.94P: 59.94
    1080/50P: 50
    1080/29.97P: 29.97
    1080/25P: 25
    1080/24P: 24
    1080/23.98P: 23.98
    1080/59.94i: 29.97
    1080/50i: 25
    1080/29.97PsF: 29.97
    1080/25PsF: 25
    1080/24PsF: 24
    1080/23.98PsF: 23.98
    720/59.94P: 59.94
    720/50P: 50 (during HD-SDI connection)

  • Input connectors

    CAM: 20-pin round type
    CAM: 26-pin rectangular type
    SDI IN: BNC type
    DC IN: 4-pin, 10.5 V to 17.0 V DC

  • Dimensions (W x H x L)

    External: 147 x 212 x 295mm / 5.78 x 8.34 x 11.61"

  • Weight

    1.7kg / 3.74lbs (not including hood)

About Sony HDVF-L750 7" LCD HD Viewfinder for Portable System Cameras - SKU#1930893

The Sony HDVF-L750 is a 7-inches LCD HD 1920 x 1080 View Finder(VF). This View Finder uses simple type VF Pan/Tilt mechanism similar to the HDVF-C550W and it can be mounted by selecting VF cable/ mounting bracket (V-shoe or supplied Converter Mounting plate) on the HDC/ HSC series studio cameras, F55/CA4000, HXC-D70,PDW-850,PMW-500,400,350,320. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while 2x assignable switches on the handle allow for recall of unique setups. The viewfinder comes with a Studio VF hood (with Flip-up mechanism).

Sony HDVF-L750 7" LCD HD Viewfinder for Portable System Cameras - SKU#1930893 Features

  • Focus Assist function
  • Pan/Tilt mechanism similar to HDVF-C550W
  • WFM (waveform) function

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Sony HDVF-L750 7 " LCD HD Viewfinder
  • Connecting Cable (20-pin)
  • Connecting Cable (26-pin)
  • Shoe Conversion Bracket
  • 4x Attaching Screws
  • Indoor Hood
  • Number Plate
  • V-wedge Shoe Attachment
  • 4x Hexagonal Screws
  • Spiral Tube
  • Item Note: Missing Hexagonal Wrench
