Used Sony HSC-100R Multiformat Camera System, 2/3" CCD, 1080p Resolution

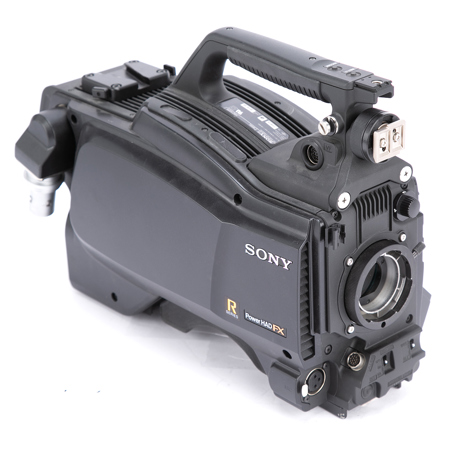

Sony HSC-100R Multi-format Camera System
The Sony HSC-100R is a multiformat camera that's been purpose built for use both in the field or in-studio. The HSC-100R is loaded with tons of features that make this one of the most flexible camera options including a three-chip 2/3-inch CCD sensors that provide superb dynamic range as well as produce high-level image quality even in low light. The HSC-100R is equipped with sophisticated 16-bit A/D conversion circuitry to further assist in achieving unbeatable picture quality. The HSC-100R incorporates digital triax technology which allows the camera to be configured with conventional digital triax systems for near plug-and-play cross-functionality.

All cameras in the HSC series from Sony include the versatility of various inputs and outputs via the connector panel. Included i/o ports support HD-SDi output, SD-SDI output, VF signal, return signal, and SDI Prompter signal. An intercom channel (ENG/PROD) is also available on all models. The HSC family of cameras is also extremely ergonomically designed for maximum operating versatility including a position-adjustable shoulder pad, two types of focus assist, optimized handle shate for shooting stability, and a rugged magnesium-alloy body construction.

Key Features

• Three-chip 2/3" CCD sensor
• 16-bit A/D conversion and DSP LSI
• Full-HD capture in various formats available via software upgrade
• 1.5G digital Triax operation
• Magnesium-alloy construction
• Position-adjustable shoulder pad
• Multiple Focus-assist functions

If you're looking to expand or upgrade your existing studio setup, or if you're looking to build from scratch, consider the Sony HSC-100R for it's ability to shoot full-HD content at 60i/50i, ergonomic design for long shoots, and plug-and-play ease of use digital Triax transmissions. The Sony HSC-100R has all of the necessary technology to keep up with the demands of today's broadcast environment with the flexibility to work seamlessly with many legacy setups as well.

From the Manufacturer

The Sony HSC-100R incorporates digital triax technology and is equipped with sophisticated 16-bit A/D conversion circuitry as well as superb three 2/3-inch CCDs to bring out a high level of picture quality over conventional digital triax infrastructures. The camera also has a built-in high-quality down-convertor for superior SD images, as standard. It also incorporates Neutral Density (ND) and Color Correction (CC) optical servo filter units.

Multi-format operation
A wide range of capturing modes are available including 1080/29.97PsF and 1080/25PsF 1 as well as 1080/50i, 1080/59.94i, 720/50p, 720/59.94p, 576/50i and 480/59.94i.

Sophisticated 2/3-inch CCDs
The HSC Series camera is equipped with field-proven 2/3-inch type full-resolution 1920 x 1080 CCDs. Due to Sony's advanced sensor technologies, the CCD imager offers a high sensitivity of F10 for 59.94 Hz and F11 for 50 Hz with a remarkable signal-to-noise ratio (S/N) of -60 dB (HD) for high-quality pictures in all kinds of demanding shooting environments.

High-quality 16-bit A/D conversion and DSP LSI
The HSC Series camera incorporates a high-performance 16-bit A/D converter with the latest technologies that enables captured images to be processed with maximum precision. Also, the Auto Lens Aberration Compensation function can optimize lens performance to provide stunning picture quality.

Auto Lens Aberration Compensation 2 (ALAC2) function
The ALAC2 function automatically reduces lens chromatic aberration by both horizontal and vertical compensation when a lens supporting ALAC2 function is attached.

Versatile camera interfaces
The HSC Series camera provides a wide range of inputs and outputs via the connector panel such as HD-SDI output, SD-SDI output, VF signal, return signal and SDI Prompter signal. An intercom channel (ENG/PROD) is also provided.

Digital triax operation
The HSC-100R utilizes a very high-quality digital triax system that expands its operability in field applications, as well as for studio production. This digital triax system can be integrated into conventional triax-based infrastructures, enabling an easy upgrade from existing systems. The latest digital triax transmission system offers long cable runs of up to 1800 m (5904 feet) via °14.5 mm cable between the camera and the HSCU-300R.

Robust design
In order to survive the stresses of professional use, the main chassis of the HSC Series is made of a magnesium-alloy casting. This rigid body makes the camera highly durable and helps to protect its lightweight precision components such as the integrated optical and electronics.

Position-adjustable shoulder pad
The position of the shoulder pad can be adjusted either forwards or backwards to provide users with the optimum weight balance. This is particularly useful when the camera is docked with any type of lens or camera adaptor. In addition, no tool is required for this adjustment.

Two types of Focus Assist functions
Viewfinder Detail: adds dedicated image-enhancing edge signals directly to the viewfinder for a camera operator to recognize a focusing point. Focus Assist Indicator: displays an indicator for adjustment at the bottom or other position of the viewfinder frame. It's beneficial especially when shooting by wide-viewing angle.

Optimized handle shape for stable shooting
The designed carrying handle enhances the camera's operability. A protrusion positioned on the front of the handle enables users to hold the camera with added stability while shooting. In addition, the non-slip structure of its lower surface helps users to grasp the handle firmly.

Function-assignable switches
The HSC Series camera has dedicated "assignable switches" available for frequently used functions. Located on both the side and rear panels, these switches allow functions such as electronic color-temperature conversion to be assigned as required. Buttons on the handle are also available as function-assignable switches. All of these switches greatly enhance the camera's operational convenience.

HD to SD down-convertor
The camera is equipped with a built-in high-quality down-convertor for superior SD images, as standard.

Selection of multiple gamma tables
In addition to artistic and skilful lighting, in-camera gamma setting plays an important role in dealing with contrast range and giving a specific look" to an image. In order to meet a broad array of customer demands, seven types of standard-gamma and four types of hyper-gamma tables are provided.

HyperGamma
HyperGamma is a set of new transfer functions designed to provide powerful contrast handling by making maximum use of the capacity and wide dynamic range of the CCD sensor. These functions are quickly accessed via the set-up menu and camera operators can select one curve from a choice of four that best suits their needs and conditions. For example, they can select to enhance natural reproduction in low-key areas to achieve greater flexibility in wide dynamic scenes.

Multi-matrix function
The multi-matrix function of the HSC Series cameras allows color adjustments to be applied over the color range specified by the operator. The color spectrum is divided into 16 areas of adjustment, where the hue and/or saturation of each area can be modified. This function is especially useful when only the hue of certain colors needs to be adjusted for special-effects work. Multi-matrix is extremely effective for capturing images with similar color tone in a system configured with existing SD cameras or other models of camera. This function enables the picture from another model of camera to be easily matched.

Adaptive-matrix function
This enables ideal color conversion for shooting even under excessively strong ambient lighting conditions such as live shooting under bright monochromatic blue light. These conditions would typically cause a conventional matrix function to exceed the color conversion range.

Master White Gain function
The Master White Gain function of the HSC Series of cameras enables step-less adjustment of gain levels. This makes it possible to adjust the gain level more precisely compared to conventional stepwise adjustment.
