Picture does not represent the actual item
See what's in the box
Item Note: One scroll wheel broken. Screw on viewfinder mount is stripped. Missing Viewfinder arm. BC-U1 Battery Charger; Infrared Remote Commander; CR2032 Lithium Battery for Backing Up Camcorder Settings; CR2032 Lithium Battery for IR Remote Commander; Shoulder Strap; USB Cable; Cold Shoe Kit
Need help? Ask our experts.
Review Summary
2025-07-07T21:59:48
Hello,<y name is Thinh Lam who paid the Camcorder Sony PMW 300K1 .When I got it I found there were some issues. First of all.the cover on the left side of the camcorder cannot be closed Second the claim that holds the light on top was missing Third,the battery is weak so I cannot charge it fully So is there any help. replace the parts that has problem? or give me some discount on this order. Pls ler me know what i will do Anyway thanks a lot
THINH L.
1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
1920 (H) x 1080 (V)
-3, 0, 3, 6, 9, 12, 18 dB, AGC
1,000 TV lines or more (1920 x 1080i mode)
3-chip 1/2-inch type Exmor Full HD CMOS
0.02 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation, Gamma on, 50% video level)
F1.6 prism system
60 dB (Y) (typical)
F11 (typical) (1920 x 1080/59.94i mode)
1/32 sec to 1/2,000 sec
720p: selectable from 1 fps to 60 fps as recording frame rate
1080p: selectable from 1 fps to 30 fps as recording frame rate
2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation
Preset (3,200 K), Memory A, Memory B/ATW
Approx. 3.6 hrs with BP-U90 battery (while recording, with viewfinder, I/O Select Off)
Omni-directional stereo electret condenser microphone
XAVC (future option)
MPEG-2 Long GOP:
HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P at HL
HQ mode: VBR, 35 Mbps max., MPEG-2 MP at HL
SP mode: CBR, 25 Mbps, MPEG-2 MP at H-14
SD mode: MPEG IMX, DVCAM
HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels
HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels
SD MPEG IMX mode: LPCM 16/ 24 bits, 48 kHz, 4 channels
SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channels
HD mode: LPCM 16 bits, 48 kHz, 4 channels
SD DVCAM mode: LPCM 16 bits, 48 kHz, 2 channels
HD 422 50 Mode: MPEG-2 422P at HL, 50 MBps/ CBR
1920 x 1080 / 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720 / 59.94p, 50p, 29.97p, 25p, 23.98p
HD 420 HQ Mode: MPEG-2 MP at HL, 35 MBps/ VBR
1920 x 1080 / 59.94i, 50i, 29.97p, 25p, 23.98p (requires version Up)
1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p,
1280 x 720 / 59.94p, 50p, 23.98p (2-3 pull down)
SD MPEG IMX Mode
720 x 480 / 59.94i, 29.97PsF
720 x 576 / 50i, 25PsF
HD 420 HQ Mode: MPEG-2 MP at HL, 35 Mbps/ VBR
1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
HD SP 1440 Mode: MPEG-2 MP at H-14, 25 Mbps/ CBR
1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)
SD DVCAM Mode
720 x 480/ 59.94i, 29.97PsF
720 x 576/ 50i, 25PsF
HD 422 50 / SD MPEG IMX Mode:
120 min with SBS-64G1A (64 GB) memory card
60 min with SBP-32/ SBS-32G1A (32 GB) memory card
30 min with SBP-16 (16 GB) memory card
HD 420 HQ Mode:
180 min with SBS-64G1A (64 GB) memory card
90 min with SBP-32/ SBS-32G1A (32 GB) memory card
45 min with SBP-16 (16 GB) memory card
SD DVCAM Mode:
220 min with SBS-64G1A (64 GB) memory card
110 min with SBP-32/ SBS-32G1A (32 GB) memory card
55 min with SBP-16 (16 GB) memory card
HD HQ Mode:
200 min with SBS-64G1A (64 GB) memory card
100 min with SBP-32/ SBS-32G1A (32 GB) memory card
50 min with SBP-16 (16 GB) memory card
HD SP Mode:
280 min with SBS-64G1A (64 GB) memory card
140 min with SBP-32/ SBS-32G1A (32 GB) memory card
70 min with SBP-16 (16 GB) memory card
SD DVCAM Mode:
260 min with SBS-64G1A (64 GB) memory card
130 min with SBP-32/ SBS-32G1A (32 GB) memory card
65 min with SBP-16 (16 GB) memory card
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
VIDEO OUT: BNC type
DC jack
BNC (x1) (switchable to Video out), 1.0 Vp-p, 75Ohms
A-type (x1)
Stereo mini-jack (x1)
8-pin, round
8-pin
BNC (x2), HD-SDI/SD-SDI selectable
Monaural
BNC (x1) (switchable to TC out) (SMPTE 12M-2-2008 standard, 0.5V-1.8Vp-p, 10kOhms)
BNC (x1) (switchable to TC in) (SMPTE 12M-2-2008 standard, 1.0Vp-p, 10kOhms)
USB 2.0 (device), mini-B type (x1) USB Host, Type A (x1)
BNC x1, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75Ohms
IEEE-1394, 4-pin, (x1), HDV (HDV 1080i) / DV input/output, S400
M77 mm, pitch 0.75mm
5.8-81.2mm (35mm Equiv: f=31.4mm-439mm)
F1.9-F16 and Close
1/2-type EX mount
Optical 14x
ExpressCard/34 slot x 2
3.5-inch type color LCD monitor: 960 (H) x 3(RGB) x 540 (V), Quarter HD Size
32deg.F to 104deg.F (0deg.C to 40deg.C)
-4deg.F to +140deg.F (-20deg.C to +60deg.C)
Approx. 20 W (while recording, with viewfinder, IO Select Off)
DC 12 V
275 x 239 x 384mm / 10.82 x 9.40 x 15.11"
Body: 2.2kg / 4.85lbs

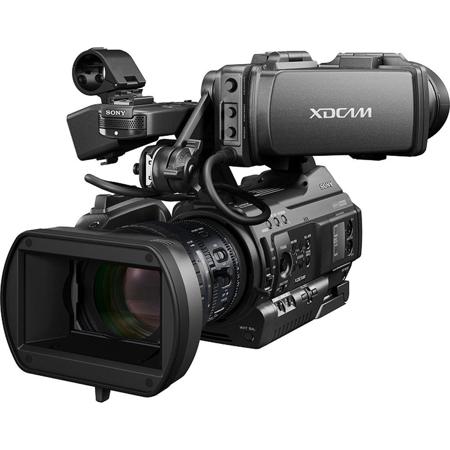

Sony'PMW-300K1 XDCAM camcorder is the first semi-shoulder mount camcorder to combine the benefits of 1/2-inch type Exmor Full HD 3CMOS sensor technology with 50Mbps HD recording at MPEG HD422, meeting broadcast standards around the world. The high bit rate ensures excellent capture of fast moving objects, while its chroma subsampling feature is perfect for a wide range of video recording situations. Although the PMW-300K1 features the same lens and imager as the PMW-Ex3, Sony has developed advanced signal processing technology to suppress noise effectively and create noticeably clearer images, and enable it to reproduce better S/N ratio than that of the PMW-Ex3.
In addition to the list of exceptional features the new PMW-300K1 shares with the PMW-Ex3, the new camcorder now offers Cache Recording of up to 15 seconds, 1/16 ND filter position in addition to 1/4 and 1/64, more Gamma selections, eight assignable switches, QHD 960 x 540 resolution viewfinder, second SDI output, HDMI output, USB connectivity and more. The newly added USB connection enables the wireless remote control, video streaming and high resolution/XAVC proxy file transfer capabilities with an optional CBK-WA100 Wireless Adapter. The camcorder is designed to be upgradable to support Sony's revolutionary XAVC codec, which is planned to be available from firmware version 1.20. This will help to extend the lifecycle of the product and enhance your return on investment.
