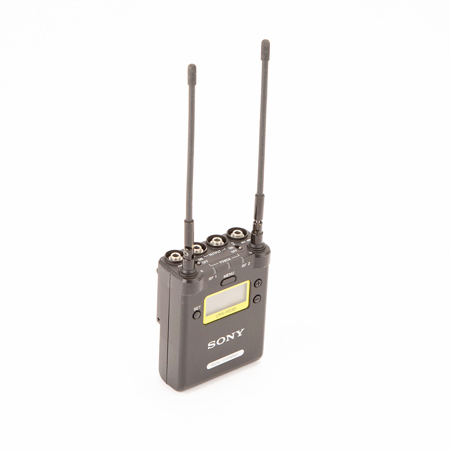

Used Sony URXP03D 2-Channel Portable Receiver, 470-542MHz

SKU: US1932492 MFR: URXP03D/14
Earn VIP Reward Points

What`s in the box:

  • Sony URXP03D 2-Channel Receiver

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-29T13:14:17

Rated 5 out of 5

High quality and user friendly.

So far so good. The unit sounds excellent and is simple to become familiar with. This is my first wireless receiver and there was not much of a learning curve to speak of. A+ to Sony for user friendliness. There is nicely detailed instruction video about it’s operation by the product manager himself on YouTube. Sony audio gear has proven reliable to me over the years, and it appear that these will live up to my high expectations. :)

Jonathan M.

2018-10-25T19:07:53

Rated 5 out of 5

Essential for adding good quality, extra audio channels.

Bought this for my new Sony PXW-Z190 for professional interview scenarios and it has definitely delivered. It is capable of dual audio channels so you can use a handheld wireless microphone with transmitter and a lavalier microphone with bodypack transmitter at the same time to get an extra two channels of audio. You can mix and match different microphones as long as they have UHF wireless transmitters on them: two lavaliers, two handheld microphones, a lavalier and a handheld, a boom mic and a lavalier, etc. In order to interface with a multi-channel camera, you will need Sony's dual channel MI shoe adapter, the Sony SMAD-P3 Multi-Interface Shoe Adapter for UWP-D Series Wireless Receivers, available at Adorama here:https://www.adorama.com/sosmadp3d.html There are two versionf of the MI Shoe Adapter, you will need the dual-channel SMAD-P3D in order to use both audio channels on your camcorder. They also make a single channel version called the SMAD-P3, which will only give you the ability to use one microphone at a time. The unit is built very sturdy, featuring an all metal construction to protect it from the rigorous use of run and gun filming and interviews in harsh conditions. This version is capable of operating on the 470-532Mhz wavelength and offers a myriad of scanning frequencies to ensure interference-free operation. With the camera MI Shoe Adapter, you can choose to run this unit off of your camcorder's battery or you also have the option to use AA alkaline, lithium, or rechargeable NiMH batteries which can be recharged with the unit's bulld in USB adapter (cable not included). Two AA alkaline batteries will give you approximately 5-6 hours of continuous usage. AA lithium batteries have lasted me about 14-16 hours or usage and good quality 2500MaH rechargeable NiMH batteries give me about 6-8 hours of usage per full charge. So far I've had absolutely no issues with this unit and am always able to find a unused, interference free frequency to operate on. Highly recommended!

LEILANI V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony URXP03D Specifications

  • Power Requirements

    DC 3.0V (with two AA-size alkaline (LR6) batteries)
    DC 5.0V (via USB micro-B)

  • Battery Life

    6 hours for 2 channel use
    8 hours for 1 channel use with Sony's AA-size alkaline (LR6) batteries at 25 deg. C / 77 deg. F (Approx.)

  • Receiving Channels

    470 MHz - 542 MHz (TV channels 14 - 25)

  • Dimensions

    2.5 x 3.25 x 1.12" / 63.50 x 82.55 x 28.45mm

  • Weight

    Including batteries: 7.40oz / 209.79g (Approx.)

4 Accessories for Sony URXP03D 2-Channel Portable Receiver, 470-542MHz

  • All Accessories (4)
  • Cases, Bags & Sleeves (1)
  • Adapters & Mounts (1)
  • Headphones (1)
  • Cables & Adapters (1)

About Sony URXP03D 2-Channel Portable Receiver - 470-542MHz SKU#1932492

FEATURED REVIEWS

Essential for adding good quality, extra audio channels.

By LEILANI V.

Bought this for my new Sony PXW-Z190 for professional interview scenarios and it has definitely delivered. It is capable of dual audio channels so you can use a handheld wireless microphone with transmitter and a lavalier microphone with bodypack transmitter at the same time to get an extra two channels of audio. You can mix and match different microphones as long as they have UHF wireless transmitters on them: two lavaliers, two handheld microphones, a lavalier and a handheld, a boom mic an...

View full Review

High quality and user friendly.

By Jonathan M.

So far so good. The unit sounds excellent and is simple to become familiar with. This is my first wireless receiver and there was not much of a learning curve to speak of. A+ to Sony for user friendliness. There is nicely detailed instruction video about it’s operation by the product manager himself on YouTube. Sony audio gear has proven reliable to me over the years, and it appear that these will live up to my high expectations. :)

2-channel portable receiver for high quality sound for ENG/EFP productions. The URX-P03D/14 operates on TV channels 14-25. The URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analog FM modulation. The URX-P03D offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from.

• 2-channel portable receiver
• Digital Audio Processing for high quality sound
• External mic input for additional wired microphone
• Wide frequency coverage with choice of channels available
• Large display and small size receiver
• Easy to use features
• Can access 2,772 frequencies

Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The receiver also has an external mic input for an additional mono/stereo wired microphone and 3 input mixer function.

The URX-P03D can be connected directly (without cables) to many Sony cameras that support the MI (Multi-Interface) Shoe feature with the use of the optional SMAD-P3D 2-channel shoe adaptor. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

UWP-D digital audio processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analog wireless systems. It provides superb transient response performance. Analog companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

External mic input for additional wired microphone with 3-channel Mixer function
The URX-P03D 2-channel portable receiver has an external mic input connector for additional wired microphones. Sony microphones with BMP plug or plug-in power microphones (stereo/mono) are applicable by menu setting. It also has a 3-channel mixer function for the two wireless microphones and one wired microphone. It can assign output 1 or/and 2 freely.

Large display and small size receiver
This receiver is designed to fit even small camcorders or DSLR cameras, with dimensions of 2.48 in x 3.23 in x 1.12 in (W x H x D) and a weight of approx. 7.41 oz (including batteries). The transmitters and receivers also feature a bright 0.45 in x 1.09 in display, significantly larger than previous UWP models to make them easily readable in all situations.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically for fast and easy system setup.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

Wide frequency coverage
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models-please refer to product specifications for more information.

True Diversity reception system
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Compatibility with Sony 800 and UWP Series analog audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Headphone output for monitoring
The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

USB for external power supply or charging batteries
The URX-P03 portable receiver has a micro USB terminal for connection to USB external portable power sources. You can also load NiMh batteries into the receiver to be charged through the micro USB.

Robust metal body
The URX-P03 portable receiver is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Variable output level on portable receiver
The system provides variable output level control of +/-12 dB, for use with the various input levels of camcorders and DSLR cameras.

Sony URXP03D 2-Channel Portable Receiver - 470-542MHz SKU#1932492 Features

  • For UWP-D Wireless Systems
  • Two Audio Channels
  • True-Diversity Camera-Mount Receiver
  • 2772 Auto-Scan Frequencies
  • External Input for Wired Mic
  • Integrated 3-Channel Mixer
  • Headphone Output for Monitor Mode
  • 5-Hr AA Batteries + USB Power
  • Up to 16 Mics on Set / 330' Range

Warranty Information

This used item has a FREE 90-day warranty. See details.
