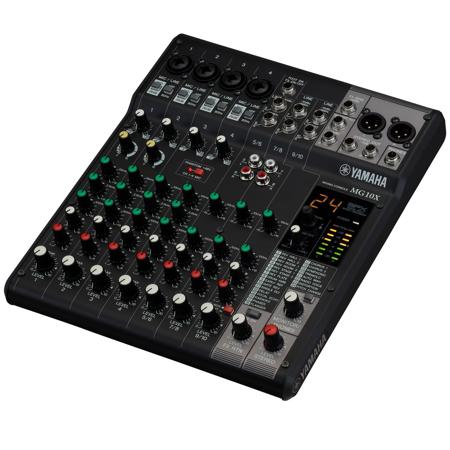

Used Yamaha MG10X CV 10-Input Stereo Mixer with Effects

SKU: US1933411 MFR: MG10X CV
$194.00
New: $247.99
Used Savings: $53.99 (22%)
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Yamaha MG10X Specifications

  • Frequency Response

    +0.5 dB/-1.0 dB (20 Hz to 48 kHz), refer to the nominal output level at 1 kHz, GAIN knob: min

  • Total Harmonic Distortion

    0.02% at +14 dBu (20 Hz to 20 kHz), GAIN knob: min

  • Equivalent Input Noise

    -128 dBu (mono input channel, Rs: 150 Ohms, GAIN knob: max)

  • Residual Output Noise

    -102 dBu (STEREO OUT, STEREO LEVEL knob: min)

  • Crosstalk

    -78 dB

  • Input Channels

    4x Mono [mic/line]
    3x Stereo [line]

  • Output Channels

    2x Stereo out
    1x Monitor out
    1x Headphone out
    1x Aux out

  • Bus

    Stereo: 1
    AUX[FX]: 1

  • Pad

    26 dB (mono channels)

  • HPF

    80 Hz, 12 dB/oct (mono channels)

  • Compressor

    1 Knob Compressor Threshold: +22 dBu to -8 dBu
    Ratio: 1:1 to 4:1
    Output level: 0 dB to 7 dB
    Attack time: approx. 25 msec
    Release time: approx. 300 msec

  • Equalizer

    EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    EQ mid gain: +15 dB/-15 dB, Frequency: Mono 250 Hz f 5 kHz peaking, Stereo 2.5 kHz peaking
    EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

  • LED

    Peak LED turns on when post EQ signal reaches 3 dB below clipping

  • Level Metering

    2x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

  • Built-in Effects

    SPX algorithm: 24 program

  • Phantom Power

    +48 V switchable, channels 1 - 4

  • Digital I/O

    USB: USB Audio Class 2.0 compliant
    Sampling frequency: max 192 kHz
    Bit depth: 24-bit

  • Power Requirement

    PA-10

  • Power Consumption

    22.9 W

  • Operating temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Optional Accessories

    BMS10A Microphone stand adapter

  • Dimensions

    9.6 x 2.8 x 11.6" (244 x 71 x 294mm)

  • Weight

    4.63 lbs (2.1kg)

About Yamaha MG10X CV 10-Input Stereo Mixer with Effects

With the Yamaha MG10X CV 10-Input Stereo Mixer with Effects, audio professionals and enthusiasts alike can experience the pinnacle of sound mixing technology. This professional-grade mixer is designed to handle a wide array of audio sources with its 10 versatile channels, making it a top choice for those seeking to mix multiple inputs with clarity and precision. The inclusion of high-quality, built-in SPX effects with 24 presets adds depth and dimension to any audio project, from live performances to studio recordings.

Crafted with durability in mind, the MG10X CV boasts a rugged steel chassis, ensuring it can withstand the demands of both the road and the studio. The advanced D-Pre discrete Class A microphone preamplifiers are engineered to capture the purest sound, providing a pristine sonic foundation that minimizes the need for additional processing. This high-quality sound is further enhanced by the custom-made MG01 op-amps, meticulously designed for exceptional audio resolution.

The MG10X CV's intuitive interface features rotary controls for a compact footprint, perfect for setups where space is at a premium. Its versatility extends to the variety of input options, including XLR, 1/4" Phone, and RCA type pin jacks, as well as XLR and Phone outputs for comprehensive connectivity. The mixer also includes two channels of single-knob compression, streamlining the process of achieving a balanced and dynamic mix.

Yamaha's commitment to sonic purity is evident in the transparent sound delivered by the MG Series mixers. The 3-band equalizers on all mono channels offer precise tone shaping, while the high-pass filter eliminates low-frequency noise for a cleaner mix. The switchable phantom power and PAD switch cater to a wide range of microphones and instruments, ensuring optimal levels without the risk of clipping.

For those looking to expand their sound reinforcement or recording setup, the MG10X CV features up to four AUX sends, group outputs, and a variety of output connectors to accommodate additional equipment. The built-in LED level metering provides accurate monitoring of output levels, ensuring your mix is always on point.

The MG10X CV is not only built to last but also to inspire. Whether it's the high-quality reverb and delay effects that bring a new dimension to your sound or the hands-free effect muting via a footswitch input, this mixer is equipped to elevate your audio experience. Yamaha's legacy of superior craftsmanship and innovation is embodied in this mixer, making it a reliable and high-performance choice for any audio mixing application.

Yamaha MG10X CV 10-Input Stereo Mixer with Effects Features

  • Maximum 4 Mic/10 Line Inputs (4 mono + 3 stereo)
  • Rugged, Powder-coated steel chassis for superior durability
  • Discrete Class-A microphone preamps
  • Built-in SPX digital effects with 24 programs
  • Switchable +48V Phantom power
  • Color coded controls offer easy operation

Warranty Information

This used item has a FREE 1-year warranty. See details.
