Used Condition: Heavy Use

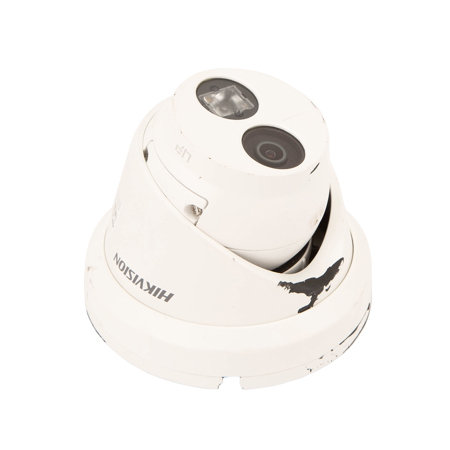

Used Hikvision DS-2CD2343G0-I 4MP 2688x1520 Outdoor IR Network Turret Camera with 2.8mm Lens, IP67

SKU: US1934886 MFR: DS-2CD2343G0-I 2.8MM
Be the first to review this item
$42.00
Earn VIP Reward Points
See all Used options (2) from $42

What`s in the box:

  • DS-2CD2343G0-I 4MP 2688x1520 Outdoor IR Network Turret Camera with 2.8mm Lens

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-2CD2343G0-I Specifications

Camera

Camera

Jump to...

  • Image Sensor

    1/3" (4 MP) progressive scan CMOS

  • Minimum Illumination

    Color: 0.018 lux @ (f/2.0, AGC on)
    0 lux with IR

  • Shutter Speed

    1/3 s to 1/100, 000 s

  • Slow Shutter

    Yes

  • Auto-Iris

    No

  • Day and Night

    IR cut filter

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    120dB

  • Angle Adjustment (Bracket)

    Pan: 0 Degree to 360 Degree
    Tilt: 0 Degree to 75 Degree
    Rotation: 0 Degree to 360 Degree

Lens

Jump to...

  • Focal Length

    2.8mm

  • Aperture

    f/1.6

  • Focus

    Manual

  • FOV

    2.8 mm, Horizontal FOV 103 Degree, Vertical FOV 58 Degree, Diagonal FOV 123 Degree

  • Lens Mount

    M12

IR

Jump to...

  • IR Range

    Up to 100' (30m)

  • Wavelength

    850 nm

Compression Standard

Jump to...

  • Video Compression

    Main Stream: H.265+/H.265/H.264+/H.264
    Sub-Stream: H.265+/H.265/H.264+/H.264/MJPEG
    Third Stream: H.265+/H.265/H.264+/H.264

  • H.264 Type

    Main profile/high profile

  • H.264+

    Main stream and sub-stream support

  • H.265 Type

    Main profile

  • H.265+

    Main stream and sub-stream support

  • Video Bit Rate

    256 Kbps to 16 Mbps

Smart Features

Jump to...

  • Behavior Analysis

    Line crossing detection, intrusion detection

  • Face Detection

    Yes

  • Region of Interest

    One fixed region for main stream and sub-stream


Jump to...

  • Maximum Resolution

    2688 x 1520

  • Main Stream

    30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)

  • Sub-Stream

    30 fps (640 x 480, 640 x 360, 320 x 240)

  • Third Stream

    30 fps (1280 x 720, 640 x 360, 352 x 240)

  • Image Enhancement

    BLC, 3D DNR

  • Image Settings

    Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

  • Target Cropping

    No

  • Day/Night Switch

    Day/night/auto/schedule

Network

Jump to...

  • Network Storage

    Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR

  • Alarm Trigger

    Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • General Function

    One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

  • API

    ONVIF (PROFILE S, PROFILE G), ISAPI

  • Simultaneous Live View

    Up to 6 channels

  • User/Host

    Up to 32 Users
    3 Levels: Administrator, Operator and User

  • Client

    iVMS-4200, Hik-Connect

  • Web Browser

    IE 8+, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0+

Interface

Jump to...

  • Communication Interface

    1-port RJ-45 10M/100M self-adaptive Ethernet port

  • On-board storage

    Built-in microSD/SDHC/SDXC slot, up to 128 GB

  • SVC

    H.264 and H.265 encoding

  • Reset Button

    Yes

General

Jump to...

  • Operating Conditions

    -22 to 122 Degree F (-30 to 50 Degree C)
    Humidity: 95% or less (non-condensing)

  • Power Supply

    12 VDC +/- 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)

  • Power Consumption and Current

    12 VDC, 0.5 A, maximum: 6 W; PoE (802.3af, 37 V to 57 V), 0.2 A to 0.1 A, maximum: 7.5 W

  • Protection Level

    IP67, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection

  • Material

    Metal

  • Dimensions

    5.0 x 3.8" (127.3 x 95.9mm)

  • Weight

    1.30 lb (610g)

About Hikvision DS-2CD2343G0-I 4MP 2688x1520 Outdoor IR Network Turret Camera #1934886

The Hikvision DS-2CD2343G0-I Outdoor IR Turrent Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.

The camera has an EXIR 2.0 range of up to 100 feet (30 meters).

The 2.8 mm and 4 mm lens options are optimized for viewing angles that fit any situation.

Hikvision DS-2CD2343G0-I 4MP 2688x1520 Outdoor IR Network Turret Camera #1934886 Features

  • 1/3" (4 MP) Progressive Scan CMOS
  • Up to 2688 x 1520 Resolution
  • 2.8mm Fixed Lens
  • EXIR 2.0 Range Up to 100' (30m)
  • H.265+/H.265/H.264+/H.264
  • 120dB True WDR
  • IP67 Protection
  • Durable Metal Housing
  • 12 VDC +/- 25% (PoE 802.3af), maximum 7.5 W
