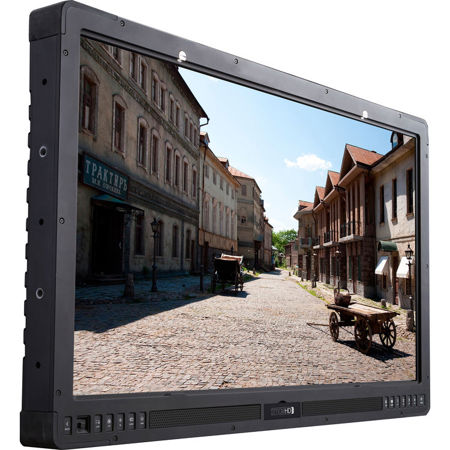

SmallHD 3203 HDR 32" IPS Full HD LCD Production Monitor, 1920x1080, 1500 Nits Brightness with True HDR Rendering
SmallHD 3203 HDR: Picture 1 thumbnail
SmallHD 3203 HDR: Picture 2 thumbnail

Picture does not represent the actual item
See what's in the box

See all SmallHD items
$116 PRICE DROPUsed Condition: Average

Used SmallHD 3203 HDR 32" IPS Full HD LCD Production Monitor, 1920x1080, 1500 Nits Brightness with True HDR Rendering

Item Note: Missing HDMI Cable (6'); Quick Release Hot Shoe Rail Mount for Large Monitors; Table Stand Kit

SKU: US1935013 MFR: MON-3203HDR
Be the first to review this item
$3,737.00
$3,853.00
Save: $116 (3%)
OR
$312/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (2) from $1,649

What`s in the box:

  • SmallHD 3203 HDR 32" IPS Full HD LCD Production Monitor
  • C-Stand Mount
  • Top Handle
  • AC Power Cord ** Item Note: Missing HDMI Cable (6'); Quick Release Hot Shoe Rail Mount for Large Monitors; Table Stand Kit **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$183.99

3 Year

$273.99

4 Year

$393.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

SmallHD 3203 HDR Specifications

  • Panel Type

    IPS

  • Size Diagonal

    32"

  • Resolution

    1920x1080

  • Pixel Density

    69 ppi

  • Aspect Ratio

    16:9

  • Active Area

    27.98 (W) x 15.69 (H)

  • Brightness

    1500 nits

  • Contrast

    5000:1

  • Color Gamut

    100% REC709

  • Color Depth

    10-bit

  • Viewing Angle

    178 deg.

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    No

  • Input Signal Types/Formats

    3G-SDI: YCC 4:2:2 at 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
    HD-SDI: YCC 4:2:2 at 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Input Signal Types/Formats (Cont.)

    HDMI: Supports YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
    Audio: HDMI/SDI - Monitor through Speakers in Front Bezel or through Headphone Jack - Metering up to 8 channels

  • Output Signal Types/Formats

    3G-SDI: YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88
    HD-SDI: YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits

  • Output Signal Types/Formats (Cont.)

    HDMI: Supports YCC 4:2:2 at 8 bits, RGB & YCC 4:4:4 at 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50

  • Connector Type

    SDI: 2x 3G Inputs, 2x 3G Outputs
    HDMI: 1x Input, 1x Output
    Audio: 1x Headphone Jack on Front of Monitor
    Power: 1x AC Power Input - 3 Prong 90 - 260V, 1x Lemo Output 12VDC at 4A Maximum
    USB: 1x Front USB 2.0, 2x Rear USB 2.0

  • Primary Control Interface

    Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1-4 Instant Selection; Tools Menu

  • Record/Capture

    Dedicated Capture Button on Front Bezel

  • Storage

    SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades

  • Power

    Connector Type: 3-Pin Grounded AC120/240V IN, Dual XLR 12-34VDC IN for Batteries, 12V Lemo 2-pin OUT 4A Maximum
    Battery Types: Gold Mount / V-Mount via 4-pin XLR Connector

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    32 to 105 deg. F / 0 to 41 deg. C

  • Storage Temperature

    4 to 120 deg. F / -16 to 49 deg. C

  • Mount Points

    Multiple 1/4" - 20 & 3/8" - 16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor

  • Construction

    Full Anodized Aluminum Chassis with Four Sided Rubber Impact Protection for LCD Panel

  • Pixel Zoom (type)

    2x & 4x Zoom with smooth pan via joystick

  • Frame Guides

    Yes: Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    Yes: 1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate(Manual/Automatic)

    Yes - Automatic

  • Image Flip (Manual/Automatic)

    Yes - Automatic

  • Cross Conversion

    Yes: HDMI - SDI & SDI - HDMI

  • Focus Assist (Colors)

    Yes - User Adjustable Color and Intensity

  • Peaking

    Yes - User Adjustable Intensity

  • False Color

    Yes - Rainbow & Arri Style

  • Zebra

    Yes - Dual - User Configurable

  • Waveform

    Yes - Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Yes - Fully User Customizable

  • Histogram

    Yes - Luma & RGB Style

  • Image Capture

    Yes - With Dedicated Button

  • Custom LUTS

    Yes - Loadable by Page or as Systemwide Color Calibration

  • LUT Downstream

    Yes - Available on SDI 1 or HDMI Out

  • LUT Import

    Via SD Card

  • Image Overlay

    Yes with Intensity Slider and Blink Setting

  • Firmware

    Compatible with 3200 Series Firmware V3.0 and Later

  • Audio Meters

    Yes - HDMI & SDI up to 8 channel

  • Dimensions (H x W x D)

    19 x 30 x 3.12" / 48.26 x 76.20 x 7.92cm

  • Weight

    Without Battery: 39.56lbs / 17.94kg

About SmallHD 3203 HDR 32" IPS Full HD LCD Production Monitor, 1920x1080, 1500 Nits Brightness with True HDR Rendering

3203 HDR
The brightest, most durable production monitors ever.

Incredibly Rugged
Milled from billet aluminum, SmallHDR monitors are built to last.

Rapid Deployment
Save hours of setup and tear down time with a revolutionary accessory rail system and convenient table stand with built-in C-stand mount.

Hassle-free Power
They have made it easy to power the monitor and monitor accessories by including XLR power input and 12V Lemo power out.

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 3203 HDR 32" IPS Full HD LCD Production Monitor
  • C-Stand Mount
  • Top Handle
  • AC Power Cord
  • Item Note: Missing HDMI Cable (6'); Quick Release Hot Shoe Rail Mount for Large Monitors; Table Stand Kit
