Used Z-CAM E-2 4K Cinema Camera

Item Note: Missing D-TAP Connector; Power Cables

SKU: US1938882 MFR: Z CAM E2
$958.00
New: $1,999.00
Used Savings: $1041 (52%)
OR
Earn VIP Reward Points

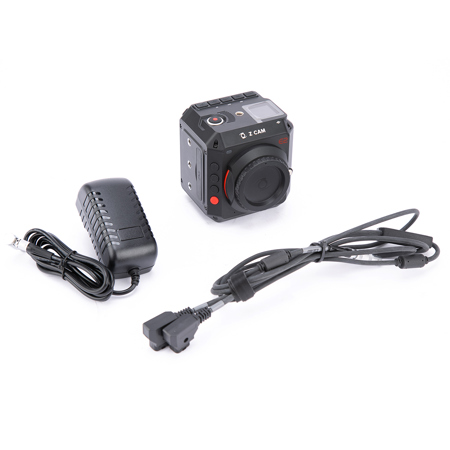

What`s in the box:

  • E2 4K Cinematic Camera
  • LEMO Power Cable with D-TAP Plug
  • Lens Mount Cap
  • AC/DC Power Adapter ** Item Note: Missing D-TAP Connector; Power Cables **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-11-30T04:12:28

Rated 5 out of 5

Just buy it. You Won't regret it

Z-Cam has become a standard force in the industry. This camera really does it all. High Frame rates, Cinema quality picture, extreme low light capabilities, you name it. The only thing you have to watch out for is how you expose the image, but once you nail that, it's a golden camera. Look no further!!

MARTIN I.

2019-12-21T02:45:32

Rated 5 out of 5

Z-CAM E2 4k

Excellent, Have been using it on professional shoots and product is amazing. Easy to use and user friendly.

MICHAEL P.

2019-10-02T12:47:57

Rated 5 out of 5

Great and compact.

This camera creates some beautiful images, has tons of crop/frame rate/ resolution options. The image quality is a significant upgrade from the sony a7iii.

Sam M.

2019-07-08T06:17:20

Rated 5 out of 5

Most impressive

Quite an impressive all-around camera. I don't have the time to fully test every single feature and codec, however what I see is a full-featured well-developed product that other competitors should be wary of. I recently purchased and used two of these in a UHD shoot and they performed flawlessly. A highlight is definitely the remote control via Wi-Fi or Ethernet. Compact flash storage is obviously expensive so an external SSD solution was the way to go for me. Any questions I've had along the way have been quickly answered by Z-cam's support (judging by the times it looks like they're only on Hong Kong or similar time zone for support. My two largest gripes are the availability of the timecode adapter to allow TC in to the camera (have to wait around a month as of this writing) and the documentation. The documentation on their website is several firmware versions old and much has been changed and added.

Ian L.

2019-05-28T11:08:47

Rated 5 out of 5

Very solid alternative to GH5 + Atomos, BMPCC4K

I've been a regular GH5 shooter for a few years and was lucky enough to preorder a BMPCC4K in time to get the first shipping round. Naturally I've accumulated a fair stable of MFT lenses and gear and like to try and make the most of my investment by shopping other cameras in the same system. The Z Cam piqued my interest initially because of it's 120 fps 4k and built in ProRes, but as I've begun using it I've learned there's more to it than just that. As of writing I’ve had the camera about 2 weeks and used in on a few walk around shoots totaling maybe 4-5 hour of footage. The good: From what I’ve ready it’s using the same sensor as the BMPCC4K and has an image quality that is similar in terms of DNR. Colors are a bit more GH5, but there’s no predominant color caste to anything. 10 bit internal possible at 4k 24, 30 60 and 120 FPS in H.265 and ProRes is possible in all frame rates except for 120. Build quality is very solid, and VERY compact compared to the ultra wide BMPCC4K and more standard mirrorless brick body of a GH5. Controls are fairly intuitive and loads of options are available within the menu system. Another huge win over the BMPCC4K is the reasonable battery powered design decision! Canon LPE6 only last about 25-35 minutes in the BMPCC4K, requiring V mount rigging, gimbal power, or a sack of batteries to shoot a few hours of footage. The Z Cam can snap on a big (and cheap) Sony NPF970 battery and expect to shoot for about 3-4 hours on and off in my experience, which is remarkable! The bad: Buttons are a bit twitchy, not responding when pressed once but when pressed a second time the menu will open AND close, signaling the button was pushed a first time, but there’s some input lag maybe? No port covers for the back side is a little bit unnerving coming from the GH5 with all of it’s snapping rubber covers. Without a cage there are very few options to mount a monitor or the camera, so getting a smallrig at the least will be a requirement for most. The camera has a LOT of noise in the shadows when you’re not set at a native ISO from the testing I’ve seen, which is a bit of a bummer. It’s all something that can be denoised, but that’s just extra render time and seems like it could have performed better. Shooting at native ISO intervals the camera produces nice results. In summary this is a camera much like the BMPCC4k, it’s a system centerpiece for a mini-cine rig that will include a monitor, cage, and maybe a few other gizmos. The E2 wins out on simplicity by a long shot from the BMPCC4K however but not needing a custom power solution, not being tricky to balance on gimbals, containing continuous auto focus, and of course it’s higher shooting frame rates (I could shoot with a 100-400 handheld at 120fps and get smooth footage). The BMPCC4K wins out on RAW recording internally and have a screen built in (although the screen on that is not that useful IMO) and of course better noise control throughout the ISO range. I’d say this camera should be looked at like a Ninja V and GH5 with a few extra bells and whistles and a few more limitations. A really very good camera so far from a company that no one had ever heard of before. I’m expecting their next generation cameras to present a serious threat to conventional low and medium end cine cams.

graham d.

2019-05-26T19:42:21

Rated 5 out of 5

Yup, the Reviews are Right - Amazing Cine Camera

If you look around the internet you will see the rave reviews for this camera, and they are right. Amazing picture, 4k at 120fps, 1080 at 240fps (although that image isn't super), ProRes, WDR, Zlog, etc., all for $ You will still need a monitor, CFast card (or SSD), and inexpensive Sony battery, and then you are ready. Amazingly light camera, kind of like a Red but smaller and much less expensive. Very responsive company and active user groups.

Daniel L.

2019-03-24T08:42:42

Rated 5 out of 5

Love this MFT camera.

The best little MFT camera. Love the form factor and the company and developers are fantastic. I owned the Z Cam E1 and still use it. Great price for such a little performer.

Ron S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Z CAM E-2 4K Specifications

Lens Mount

Lens Mount

Jump to...
  • Lens Mount

    Micro Four Thirds (MFT)

Camera Features

Jump to...
  • Sensor Type

    4/3" WDR CMOS Sensor

  • Sensor Size

    19.0 x 13.0 mm

  • Effective Pixels

    10.28M

  • Dynamic Range

    13-15 Stops (Z-Log2) / 16 Stops (with WDR activated)

  • Lens Mount

    Micro Four Thirds

  • Microphone

    Built-in Stereo Microphone

Recording

Jump to...
  • Resolution

    4096 x 2160 (C4K) / 3840 x 2160 (4K)
    4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
    3696 x 2772 / 3312 x 2760
    2704 x 1600 / 1920 x 1080

  • Frame Rate

    59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps

  • Max Variable Frame Rate

    120 fps for 4096 x 2160 (H.265 only)
    120 fps for 3840 x 2160 (H.265 only)
    150 fps for 4096 x 1728 (H.265 only)
    160 fps for 3840 x 1620 (H.265 only)
    160 fps for 2704 x 1600 (H.265 only)
    59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
    59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
    240 fps for 1920 x 1080 (H.265 only)

  • Max Bit Rate

    H.265 / H.264
    300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
    200 Mbps for 1920 x 1080

    ProRes
    Please check "Apple ProRes White Paper" for the bit rate of ProRes encoding.

  • Color Bit Depth

    10-bit (H.265 & ProRes) & 8-bit (H.264)

  • Video Encoder

    ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
    Proxy / H.265 main 10 profile / H.264 high profile

  • Audio Format

    24-bit 48 kHz

  • Audio Encoder

    AAC / PCM (for MOV only)

  • File Format

    MOV / MP4

  • Record Mode

    Video / Time Lapse Video

Settings

Jump to...
  • ISO

    Auto, Manual (500 - 102400 / 250 - 51200 with WDR activated), Native ISO: 250 / 2500 (250 / 1250 with WDR activated)

  • Shutter

    Shutter Speed: Auto, Manual (up to 1/8000") or Shutter Angle: Auto, Manual (1 Degree - 360 Degree )

  • White Balance

    Auto, Preset, Manual (2300K - 7500K)

  • Focus Mode

    MF / AF / CAF

  • Image

    Brightness / Contrast / Saturation / Sharpness

  • Image Profile

    Rec.709 / Z-Log2 / FLAT / HLG

  • Audio

    Audio In / Out Level

  • Time Code

    Current Time / Manual Input / External Input

Storage

Jump to...
  • Media

    CFAST 2.0

  • File System

    exFAT

Connectivity

Jump to...
  • HDMI

    HDMI 2.0 Type A (video output up to C4K @60fps)

  • USB

    USB 3.0 Type C for camera control & data transfer only

  • I/O

    10-pin LEMO port for synchronization (requires additional Sync Cable, not included)

  • COM

    DB-9 connector, supports RS-232

  • Remote Control

    2.5 mm jack socket (Sony LANC compatible)

  • Audio-in

    3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)

  • Audio-out

    3.5 mm stereo jack socket

  • Wi-Fi

    802.11n, 2.4G with external antenna port

  • Ethernet

    Gigabit Ethernet port for control, setting & live streaming

  • Battery

    Sony NP-F series compatible (Battery not included)

  • External Power Supply

    DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter

Environment

Jump to...
  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Physical

Jump to...
  • Material

    Aluminum Alloy

  • Dimensions (W x H x D)

    3.59 x 3.91 x 3.51" (91.2 x 99.2 x 89.1mm) (without lens)

  • Weight

    1.67 lb (757g) (without lens)

Related Articles & Videos

What are the Best Cinema Cameras?

What are the Best Cinema Cameras?

Having trouble looking for cinema cameras for your next project? We break down the best filmmaking cinema cameras available in the market.
Read more

102 Accessories for Z-CAM E-2 4K Cinema Camera

  • All Accessories (102)
  • Digital Cinema Lenses (6)
  • Recording Monitor (1)
  • Batteries & Power Supply (7)
  • Lenses (10)
  • Memory & Storage (2)
  • Lens Adapters (5)
  • Camera Cages and Rigs (2)
  • Cables & Adapters (3)
  • Bags & Cases (3)
  • Monitor & Recorder (1)
  • Adapters & Mounts (3)
  • Lens Adapters & Converters (1)
  • Filter and Filter Kits (1)
  • Flash & Lighting (55)
  • Microphones & Audio (2)

About Z-CAM E-2 4K Cinema Camera - SKU#1938882

FEATURED REVIEWS

Very solid alternative to GH5 + Atomos, BMPCC4K

By graham d.

I've been a regular GH5 shooter for a few years and was lucky enough to preorder a BMPCC4K in time to get the first shipping round. Naturally I've accumulated a fair stable of MFT lenses and gear and like to try and make the most of my investment by shopping other cameras in the same system. The Z Cam piqued my interest initially because of it's 120 fps 4k and built in ProRes, but as I've begun using it I've learned there's more to it than just that. As of writing I’ve had the camera about 2 ...

View full Review

Z-CAM E2 4k

By MICHAEL P.

Excellent, Have been using it on professional shoots and product is amazing. Easy to use and user friendly.

Z Camera App (iOS)

Z Camera is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from the Apple App Store.

Z Camera App (iOS)

Z Cam E2 Cinematic Camera

  • 4K @120fps, 10-bit color
  • 4/3" WDR CMOS sensor
  • 13 stops dynamic range (16 stops with WDR enabled)
  • Gigabit Ethernet for data, control & live streaming*
  • iOS app for control setting & live preview
  • Multi-cam synchronization**


*requires Z CAM™ software running on PC
**requires Z CAM™ E2 sync cable (not included)

Z Cam E2 Cinematic Camera

Become a master of visual storytelling with the Z Cam E2 4K Cinema Camera, a professional-grade, high-quality camera designed for filmmakers and videographers who demand superior performance. This advanced camera offers stunning 4K resolution and a micro four thirds lens mount, providing compatibility with a wide array of lenses.

The Z Cam E2 4K Cinema Camera is equipped with innovative features such as 24p and 25p frame rates, a 3.5mm mic input, built-in microphone, genlockable, interchangeable lens, and time code i/o, all housed within a durable body. This camera is designed for those who seek to capture their vision in the highest quality possible, with the flexibility to adapt to any shooting scenario.

But the innovation doesn't stop at the hardware. The Z Cam E2 4K Cinema Camera is complemented by the Z Camera App, available for both iOS and Android. This mobile application allows for live preview and control of the camera through Wi-Fi or USB cable connection. Not only can you start and stop recording, but you can also adjust camera settings on the fly, giving you unparalleled control over your filming process.

Additionally, the Z Cam E2 4K Cinema Camera supports LUTs and color correction, allowing you to color grade your video projects with ease. Whether you're adjusting exposure and white balance or applying a vintage or cinematic look, you can do it all on both Windows PC and Mac OS.

In summary, the Z Cam E2 4K Cinema Camera is more than just a camera; it's a comprehensive tool for filmmakers and videographers, offering high-quality video capture, advanced features, and seamless control. Capture your vision with the Z Cam E2 4K Cinema Camera.

Z-CAM E-2 4K Cinema Camera - SKU#1938882 Features

  • 4K @160fps, 10-bit color
  • 4/3" WDR CMOS sensor
  • 13-15 stops dynamic range (16 stops with WDR enabled)
  • Apple ProRes certified
  • Gigabit Ethernet for data, control & live streaming
  • Multi-cam synchronization

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • E2 4K Cinematic Camera
  • LEMO Power Cable with D-TAP Plug
  • Lens Mount Cap
  • AC/DC Power Adapter
  • Item Note: Missing D-TAP Connector; Power Cables
