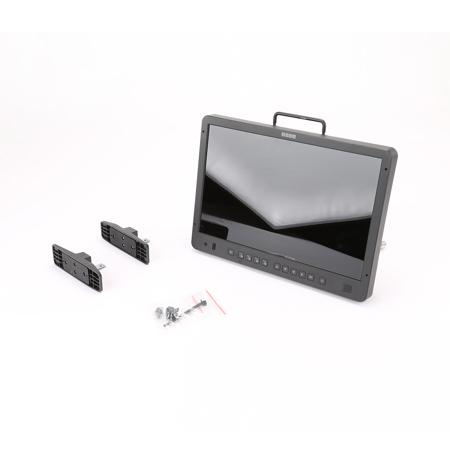

Used Osee Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor with V-Mount Kit, Built-In Speakers

SKU: US1939877

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Osee Megamon 15 Specifications

Display

Display

Jump to...
  • Panel Type

    Mini-LED LCD

  • Display Size

    15.4" (39.1cm)

  • Screen Area

    13.0 x 8.1" (330 x 206mm)

  • Resolution

    1920 x 1200 (WUXGA)

  • Aspect Ratio

    16:10

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Touchscreen

    No

  • Maximum Brightness

    800 cd/sq. m

  • Contrast Ratio

    1450:1

  • HDR Compatibility

    Hybrid Log Gamma

  • Pixels Per Inch (ppi)

    147 ppi

  • Response Time

    18 ms

  • Real-Time LUT Monitoring

    SDR, HDR

  • Image Controls

    Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Green Only, Histogram, Red Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Input/Output

Jump to...
  • Video

    2x BNC (3G-SDI) Input
    1x HDMI Type A Input
    1x BNC (Composite) Input
    1x BNC (3G-SDI) Loop Output

  • Embedded Audio

    SDI
    HDMI

  • Audio

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    2

  • Power I/O

    1x IEC Input
    1x XLR 4-Pin (16.8 VDC) Input

  • Other I/O

    1x USB 2.0 (USB Type-A) Input
    1x 2.5mm Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC):
    480i: 60
    576i: 50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    DCI 2K: 48/47.95/30/29.97/25/24/23.98
    DCI 2K PsF: 30/29.97/25/24/23.98

    Composite (10-Bit 4:2:2 YCC):
    480i: 60
    576i: 60

    HDMI (10-Bit 4:2:2 YCC):
    720p: 60/59.94/50
    1080i: 60/59.94/50
    1080PsF: 30/29.97/25/24/23.98

  • Video Format (Contd.)

    1080p: 30/29.97/25/24/23.98

  • Gamma Curve

    HDR-HLG, HDR-PQ

  • Video Standard Compliance

    SMPTE 259M/292M/297M/424M

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    11 to 16.8 VDC

  • Battery Type

    1x V-Mount

  • Power Consumption

    29.3 W

Environmental

Jump to...
  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Dimensions

    14.5 x 10.4 x 2.1" (368.9 x 264.9 x 54.5mm)

About Osee Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor with V-Mount Kit

For professionals in the film and production industry, the Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor with V-Mount Kit and Built-In Speakers is a versatile and high-performance tool. Boasting a high-bright panel with 1000 nits, this monitor ensures comfortable brightness for both indoor and outdoor shooting scenarios.

The monitor features a 1920 x 1200 HD resolution, offering crystal clear visuals and precise detail. With a 10-bit color depth, it delivers vibrant and true-to-life colors, enhancing the quality of your production. The 1450:1 contrast ratio ensures deep blacks and bright whites, while the 178-degree x 178-degree viewing angle provides a wide field of view for optimal visibility.

Equipped with a variety of connectors, the Megamon 15 is designed to meet the diverse needs of filmmakers. It comes with a full set of assist tools, including LUTs, frame tools, exposure tools, focus tools, and audio tools, providing comprehensive control over your production process.

Adding to its convenience, the Megamon 15 comes with a specially designed portable bag. This bag can be easily mounted on a C-stand, and its front can be transformed into a sunhood for outdoor use. The back of the bag can be opened to adjust the connected accessories, making it a practical and efficient solution for on-the-go production tasks.

In summary, the Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor with V-Mount Kit and Built-In Speakers is a robust and feature-rich tool, designed to enhance the quality and efficiency of your film and production projects.

Osee Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor with V-Mount Kit Features

  • Prevailing slim bezel design
  • Having multi-format input including 3G/HD/SD-SDI, VIDEO and HDMI
  • Adopting full HD, wide viewing angle TFT glass
  • Using 10-bit signal processing technology plus advanced conversion technology between the interlacing and the progressive
  • Support waveform, vector scope, histogram and audio meter
  • Support HDR technology and wide range color space
  • Support multiple color space: SMPTE-C, EBU, ITU709, ITU2020, P3
  • Support multiple assistants: zebra, focus assist, exposure assist, etc
  • Support IMD remote control
  • Support Marker, Time Code, MET display
  • Support presetting the color temperature using customized values

What's in the box:

  • Osee Megamon 15 15.4" WUXGA Mini-LED LCD HDR Production Monitor
  • Portable Bag
  • V-Mount Battery Plate
  • C-Stand Adapter
  • Cheese Plate
  • Desktop Stand Feet
  • Power Cable
  • Self-Securing Closure Strips
  • Original Box
