Used Tannoy Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor with Tuned Front-Firing Bass Port

SKU: US1940181 MFR: 000-C4802-00010
$195.00
New: $269.00
Used Savings: $74 (28%)
Earn VIP Reward Points

What`s in the box:

  • Reveal 802 8 " 2-Way 140W Custom Bi-Amped Active Studio Monitor with Tuned Front-Firing Bass Port
  • Mini Jack Cable
  • Original Box

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tannoy Reveal 802 Specifications

  • Frequency response

    42 Hz to 43 kHz

  • Maximum SPL

    114 d B

  • Distortion

    < 0.4 %

  • Dispersion (-6 dB)

    90 Degree

  • Drive Unit LF / Midrange

    200 mm (8")

  • Drive unit HF

    25 mm (1") soft dome

  • Magnetic shielding

    No

  • Max. operating temperature

    35 Degree C

  • Inputs

    Balanced XLR: 20 k Ohm
    Unbalanced 6.35 mm ( 1/4") & 3.5 mm mini-jack: 10 k Ohm

  • Outputs

    Monitor Link

  • Input sensitivity

    0.775 volt RMS for maximum output

  • Crossover frequency

    1.8 kHz

  • Amplifier output power

    LF: 75 W RMS, HF: 25 W RMS

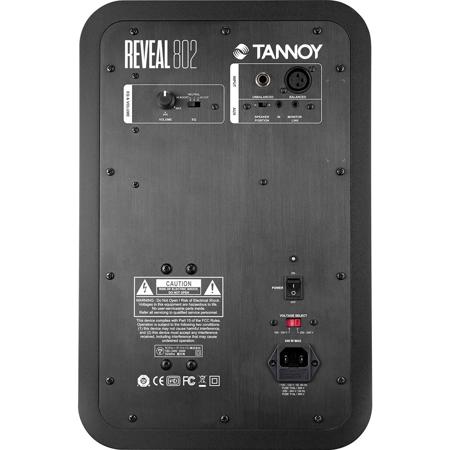

  • User controls

    Power on / off; Volume; High Frequency Equalizer (+1.5 dB Boost, Neutral, -1.5 dB cut), Left / Right Monitor Select

  • Power supply

    100 to 120 V and 200 to 240 V (switchable), 50 to 60 Hz

  • Power consumption

    240 W maximum

  • Fuse

    100 to 120 V, T2AL/ 250 V
    220 to 240 V, T1 AL/ 250 V

  • Low frequency alignment

    Optimized front port

  • Cabinet construction

    MDF cabinet with injection moulded front baffle

  • Cabinet finish

    Black fine texture

  • Dimensions (H x W x D)

    Cabinet: 15.35 x 10.00 x 11.81" (390 x 254 x 300mm)

3 Accessories for Tannoy Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor with Tuned Front-Firing Bass Port

  • All Accessories (3)
  • Stands (1)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About Tannoy Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor SKU1940181

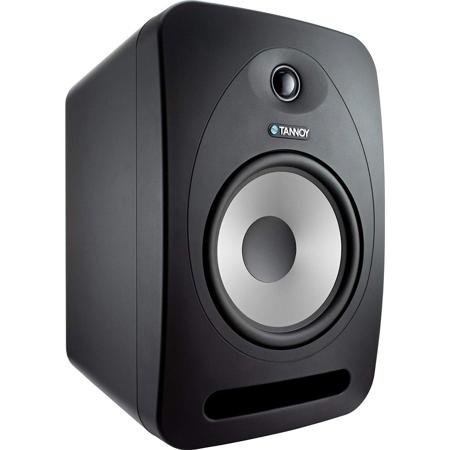

Under the banner of Tannoy, a brand synonymous with high-quality audio equipment, the Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor is a professional-grade, durable, and reliable choice for music production and audio recording. This powerful studio monitor is equipped with a custom 8" woofer and 1" tweeter, meticulously engineered to provide an accurate representation of your mix through a finely tuned active crossover filter.

The Reveal 802 boasts a robust 140-watt bi-amp module, ensuring solid, resonant bass at any volume level. This studio monitor is the result of the expert craftsmanship of Tannoy's in-house speaker guru, Dr. Paul Mills. His precision in tuning the active crossover filters of the Reveal 802 results in impeccable timing, creating an expansive sweet spot. This allows for flexibility in your workspace without compromising the stereo imaging of your mix, making it ideal for collaborative mixing sessions.

But the Reveal 802 isn't just for work; it's also perfect for leisurely listening to your favorite music. Its unique Aux Link feature simplifies setup, allowing you to connect your music player using the included mini jack cable and link your monitors for an instant stereo setup, eliminating the need for external interfaces.

With its front-firing bass port specifically tuned to enhance the low-end frequency response, and versatile 1/4" TS and 1/8" TRS input connector and XLR input, the Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor is a versatile, high-performance addition to any professional audio setup.

Tannoy Reveal 802 8" 2-Way 140W Custom Bi-Amped Active Studio Monitor SKU1940181 Features

  • Reference monitor ideal for personal studio monitoring
  • 140 Watt custom bi-amped design delivers rock-solid bass and premium tonal clarity at any volume
  • 8" custom high-efficiency low frequency driver for maximum bass response
  • 1" soft-dome 'Poke-Resistant' tweeter for detailed high frequency reproduction
  • Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance
  • 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
  • Designed and engineered in the U.K.

Warranty Information

This used item has a FREE 1-year warranty. See details.

What's in the box:

  • Reveal 802 8 " 2-Way 140W Custom Bi-Amped Active Studio Monitor with Tuned Front-Firing Bass Port
  • Mini Jack Cable
  • Original Box
