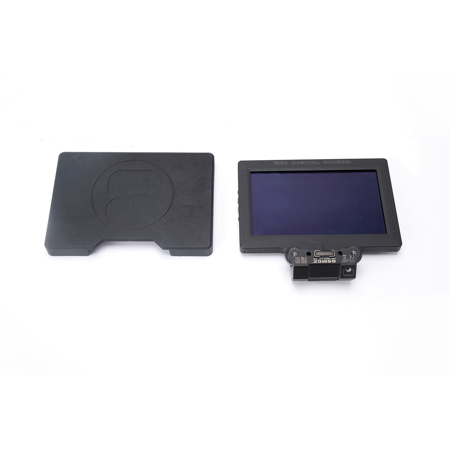

RED DSMC2 RED Touch 7.0" LCD, Woven CF - Mfr# 730-0018 SKU#1941337

Picture does not represent the actual item
See what's in the box

See all Red Digital Cinema items

Used RED Digital Cinema DSMC2 RED Touch 7.0" LCD, Woven CF

SKU: US1941337

This item is no longer available.

See all Used options (2) from $942
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

RED Digital Cinema RED Touch 7" LCD Woven CF Specifications

  • Material

    Carbon Fiber

  • Resolution

    1920 x 1136

  • Pixel Density

    323 pixels per inch (ppi)

  • Refresh Rate

    60 Hz

  • Response Time

    23 ms (black to white)

  • Contrast

    1000:1

  • Brightness

    350 cd/m2

  • Color Depth

    8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

  • Colors

    70% NTSC

  • Viewing Angle

    +/-85 Degree all axes

  • Display Orientation

    Landscape, 180 Degree rotation

  • Touch

    Projected Capacitive (PCAP), multi-touch

  • Range Of Motion

    +/-180 Degree rotation, +/-90 Degree tilt

  • Brain Connection

    Power and Communication via DSMC2 LCD/EVFpogo connector (26-Pin)

  • Mounting

    2x M4 captive mounting screws, spring loaded, with quick-release thumb knobs

  • Hood Mounting

    M3x0.5 x 5 mm (max depth)

  • Arm Mounting

    1/4-20 mounting hole in base

  • Buttons

    Up, Down, User 1, User 2

  • Power Consumption

    5.5 W (typical)

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Compatibility

    WEAPON 8K S35
    WEAPON 6K
    EPIC-W
    SCARLET-W
    RAVEN
    EPIC/SCARLET DRAGON
    EPIC/SCARLET M-X

  • Dimensions (H x W x D)

    7.12 x 7.28 x 0.52" (181 x 185 x 13 mm)
    Height: with hinge

  • Weight

    1.11 lbs (501 g)

About RED DSMC2 RED Touch 7.0" LCD, Woven CF - Mfr# 730-0018 SKU#1941337

The DSMC2 RED Touch 7.0" LCD delivers the ultimate high-definition viewing experience for recording and viewing footage on your DSMC2 camera system. The 1920 x 1136 resolution display panel provides improved color accuracy, high pixel density (at 323 ppi), 1000:1 contrast, and is bright enough for operation in high ambient light. A robust, optically-bonded touchscreen offers the most intuitive way to navigate menus, adjust camera parameters, and review your .r3d clips directly out of the camera.

The lightweight display mounts directly to the BRAIN without the need for any tools or hardware. Convenient thumbscrews enable you to attach and remove the display on-the-fly. Featuring a hinge design that rotates nearly 360 Degree and folds down to lay flat for easy transportation, as well as a 180 Degree image rotation option-the DSMC2 RED Touch 7.0" LCD is the most ergonomic DSMC2 display available. Choose from two available variations; a robust all aluminum model, or the Woven CF model for ultra-lightweight performance.

Using the DSMC2 LEMO Adaptor Collection in conjunction with the DSMC2 RED Touch 7.0" LCD allows the flexibility to mount the display away from the camera body.

RED Microfiber Bag

The RED Microfiber drawstring bag provides added layer of protection for RED accessories.

Size: X-Large = 9.6"x10.4"

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Touch 7" LCD Woven CF
  • RED Microfiber Bag (X-Large)
