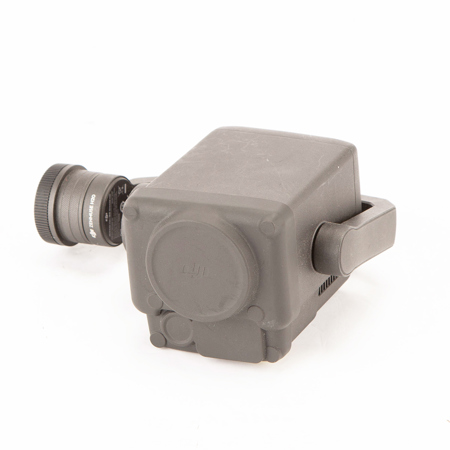

Used DJI Zenmuse H20 SP Gimbal with Camera

Item Note: Missing Lens Cleaning Cloth

SKU: US1941729 MFR: CP.ZM.00000119.01
Earn VIP Reward Points

What`s in the box:

  • Zenmuse H20 SP Gimbal with Camera
  • MicroSD Card
  • Caps
  • Hard Case with out foam ** Item Note: Missing Lens Cleaning Cloth **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$86.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-05-05T03:09:09

Rated 5 out of 5

Best all around payload for the M300

Unparalleled performance in a gimbal thermal camera with zoom.

JAMES B.

2020-09-07T11:15:40

Rated 4 out of 5

H20T is a winner.

Very good Camera the zoom is great I would recommend this tool.

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DJI Zenmuse H20 Specifications

Gimbal
  • Angular Vibration Range

    +/-0.01 Degree

  • Mount

    Detachable

  • Controllable Range

    Pitch: -120 Degree to +30 Degree
    Yaw: +/-320 Degree

  • Mechanical Range

    Pitch: -132.5 Degree to +42.5 Degree
    Yaw: +/-330 Degree
    Roll: -90 Degree to +60 Degree

Zoom Camera

Jump to...
  • Sensor

    1/1.7" CMOS, 20 MP

  • Lens

    DFOV: 66.6 Degree -4 Degree
    Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
    Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
    Focus: 1 m to Infinite (wide), 8 m to Infinite (telephoto)

  • Focus Mode

    MF/AF-C/AF-S

  • Exposure Mode

    Auto, Manual

  • Exposure Compensation

    +/-3.0 (1/3 increments)

  • Metering Mode

    Spot metering, Center-weighted metering

  • AE LOCK

    Supported

  • Electronic Shutter Speed

    1 - 1/8000 s

  • ISO Range

    Video: 100 - 25600
    Photo: 100 - 25600

  • Video Resolution

    3840x2160@30fps
    1920x1080@30fps

  • Video Format

    MP4

  • Video subtitles

    Supported

  • Photo Size

    5184 x 3888

  • Photo Format

    JPEG

Wide Camera

Jump to...
  • Sensor

    1/2.3" CMOS, 12 MP

  • Lens

    DFOV: 82.9 Degree
    Focal length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1 m to Infinite

  • Exposure Mode

    Auto

  • Exposure Compensation

    +/-3.0 (1/3 increments)

  • Metering Mode

    Spot metering, Center-weighted metering

  • AE LOCK

    Supported

  • Shutter Speed

    1 - 1/8000

  • ISO Range

    Video: 100 - 25600
    Photo: 100 - 25600

  • Video Resolution

    1920 x 1080@30fps

  • Video Format

    MP4

  • Video subtitles

    Supported

  • Photo Size

    4056 x 3040

  • Photo Format

    JPEG

Laser Rangefinder

Jump to...
  • Wave length

    905 nm

  • Measurement range

    3-1200 m (to a vertical surface with >=12m diameter and 20% reflection rate)

  • Measurement accuracy

    +/- (0.2 m + D x0.15%)
    D is the distance to a vertical surface

Features

Jump to...
  • Hybrid Optical Zoom

    23 x

  • Max. Zoom

    200 x

  • One Click Capture

    One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously

  • Point to Aim

    Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

  • High-Res Grid Photo

    Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

  • Night Scene

    Supported (zoom camera)

  • Timestamp

    Including GPS, date, and time

Storage

Jump to...
  • Supported SD Card

    MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

  • Supported File Systems

    FAT32 (<= 32 GB), exFAT (> 32 GB)

  • Recommended Micro SD Cards

    TOSHIBA EXCERIA PRO 32GB micro SD HC II
    SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
    TOSHIBA EXCERIA PRO 64GB micro SD XC II
    SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
    SAMSUNG_EVO_128GB_micro SD 3 XC I
    TOSHIBA EXCERIA M303E 32GB micro SD HC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303 128GB micro SD XC I
    SAMSUNG_EVO_64GB_micro SD 3 XC I

General

Jump to...
  • Ingress Protection Rating

    IP44

  • Operating Temperature

    -20 Degree to 50 Degree C (Temperature Measurement is only available between -10 Degree to 50 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Laser Safety

    Class 1M (IEC 60825-1:2014)

  • Supported Aircraft

    Matrice 300 RTK

  • Dimensions

    Zenmuse H20: 5.96 x 4.48 x 5.94" (150 114 151mm)

  • Weight

    Zenmuse H20: 23.9 oz (678.5g)

Related Articles & Videos

DJI Unveils New Matrice 300 RTK Commercial Drone and Zenmuse H20 Hybrid Camera Series

DJI Unveils New Matrice 300 RTK Commercial Drone and Zenmuse H20 Hybrid Camera Series

DJI is amplifying safety, accuracy, and performance for enterprise customers like first responders and construction crews with the launch of its most advanced commercial drone platform, the Read more

About DJI Zenmuse H20 SP Gimbal with Camera - SKU#1941729

FEATURED REVIEWS

Best all around payload for the M300

By JAMES B.

Unparalleled performance in a gimbal thermal camera with zoom.

H20 Series

H For Hybrid.

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

H For Hybrid.

All The Sensors You Need In One.

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

All The Sensors You Need In One.

H20 Triple Sensor Solution.

  • 20 MP Zoom Camera
  • 12 MP Wide Camera
  • 1200 m LRF


H20T Quad Sensor Solution.

  • 20 MP Zoom Camera
  • 12 MP Wide Camera
  • 1200 m LRF
  • 640×512 px Radiometric Thermal Camera

Multi Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.


Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

Payloads

High Res Grid Photo
Frame an area of interest in wide camera view, and the
zoom camera will automatically capture a set of 20 MP
images of the area. These images are stored together with
an overview image that can be viewed in greater detail.

Pinpoint
A quick tap marks an object in view, advanced sensor fusion
algorithms immediately deliver its coordinates.

Smart Track
Identify and follow moving subjects like people, vehicles,
and boats with the auto-zoom function, while continuously
acquiring the subject’s dynamic location.

High Res Grid Photo

Applications.

Powerline Inspection
Easily visualize extensive power line
networks in remote areas.

Oil & Gas
Conduct inspections of pipelines,
well sites and more – while keeping
workers away from risky areas.

Search & Rescue
Act quickly to locate missing people
and better plan rescue missions.

Firefighting
Fight fires and save lives without
endangering personnel.

Law Enforcement
Quickly assess a situation and plan
accordingly while improving officer
and bystander safety.

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • Zenmuse H20 SP Gimbal with Camera
  • MicroSD Card
  • Caps
  • Hard Case with out foam
  • Item Note: Missing Lens Cleaning Cloth
