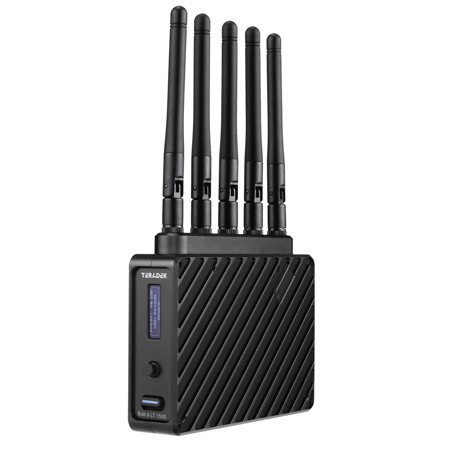

Used Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver, V-Mount, 1500' Range

SKU: US1942466 MFR: 10-2272-V
$3,103.00
New: $3,790.00
Used Savings: $687 (18%)
OR
Earn VIP Reward Points

What`s in the box:

  • Box

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$162.99

3 Year

$253.99

4 Year

$347.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-07T07:27:47

Rated 5 out of 5

Great range for a great price

Works right out of the box! Make sure your firmware is up to date when you purchase.

GOVINDA A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Teradek 10-2272 Specifications

Video
  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Output Video Scaling

    No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Yes

  • Spectrum Analyzer

    Yes

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 1500' (457.2m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    11 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

About Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver, V-Mount, 1500' Range

FEATURED REVIEWS

Great range for a great price

By GOVINDA A.

Works right out of the box! Make sure your firmware is up to date when you purchase.

Explore the advanced capabilities of the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver, a cutting-edge device designed to deliver real-time, 4K video streaming with Teradek's patented Zero-Delay technology. This receiver is engineered to operate on the newly opened 6GHz wireless frequency, ensuring less interference and superior image quality.

The Bolt 6 LT 1500 is not just a wireless receiver; it's a tool that can transform your video production process. It can receive color-accurate, True-HDR videos in under 0.001 seconds, making it an indispensable asset for any high-quality production. With range options tailored to diverse production needs, this device offers fast reconnection times and an intuitive setup process via the Bolt Manager App, available for iOS and Android.

Experience consistent, stable connectivity with the Bolt 6 LT 1500. Its utilization of the 6GHz band provides users with enhanced image quality and reduced interference. In high-traffic areas, this 6GHz wireless frequency offers more options for frequency adjustments with 12 new channels, ensuring a seamless production experience.

The Bolt 6 LT 1500 is equipped with features that cater to high-end users, including improved visibility over connections and signals. This adds confidence to your workflow, regardless of the environment. The receiver also introduces the new Long Range Mode, designed to deliver superior video quality at longer distances.

This device is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing flexibility to expand your workflow requirements. The Bolt 6 LT 1500 offers both 4K HDMI and 1080p SDI input and outputs, but also provides an HDMI-only model to cater to specific production needs.

The Bolt 6 LT 1500 operates on the 6GHz wireless frequency, a less crowded space compared to the 5GHz frequency used by many devices, including WiFi routers, cell phones, IoT devices, and competitor wireless video systems. This ensures faster connections, less interference, and a better wireless experience. However, it can also be set up in 5GHz Mode for backwards compatibility.

With the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver, you're not just purchasing a device; you're investing in a tool that can elevate your video production to new heights.

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver, V-Mount, 1500' Range Features

  • Zero-Delay wireless video
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Outputs: HDMI, 3G-SDI

Warranty Information

This used item has a FREE 180-day warranty. See details.
