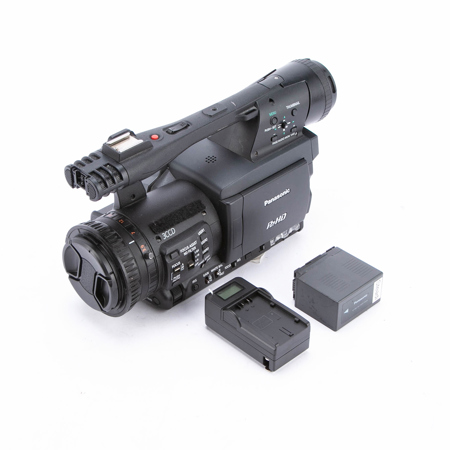

Used Panasonic AG-HPX170 1/3" 3 CCD P2 HD Handheld Camcorder, 13x Optical Zoom, 3.5" LCD Screen, 1080i, 720p, 480i Recording, 4:2:2 Independent Frame Production Quality (2792 Hours)

Item Note: Missing P2 card; AC Adapter/Battery Charger; Accessory Mic Holder; Component VideoCablewith RCA-BNC Adapters; Remote Control; Shoulder Strap

SKU: US1946134 MFR: AGHPX170PUJ
Earn VIP Reward Points

What`s in the box:

  • AG-HPX170
  • 5400mA Battery
  • Lens Cap
  • Aftermarket Battery Charger ** Item Note: Missing P2 card; AC Adapter/Battery Charger; Accessory Mic Holder; Component VideoCablewith RCA-BNC Adapters; Remote Control; Shoulder Strap **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$84.99

3 Year

$132.99

4 Year

$180.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2010-04-10T21:00:00

Rated 4 out of 5

Seems like a great camera

I'm quite new to video and this was well above anything I have used before. I haven't had a proper chance to test it out but so far it looks great. The Barry Green book makes all the difference in learning the camera. If you are ammature like myself and want to take the next step I personnally think this camera will do the job and then some

Heath R.

2009-09-21T21:00:00

Rated 4 out of 5

A great addition & worthy upgrade!

I just bought this to start up my freelance business, taking advantage of its versatility, compact size, and advanced performance over the HVX200. Within a week, I've already been able to have the camera make ME money by renting it out on my off time when I'm not playing with it and getting comfortable with it also. It's high in demand, and produces excellent images. It also came along with the Barry Green book, which is fantastic as I've been combing through it to discover the ins and outs of the camera I would have taken months to discover if at all. It also flags alot of the workarounds and limits that the camera may have, which is very rare to read in a book, but that information is invaluable, especially with his workarounds and suggestions. Overall, solid product, one of the best HD cameras out there in it's price range, and a very versatile camera.

Tony F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic AG-HPX170 1/3" 3 CCD P2 HD Handheld Camcorder - 2792 Hours SKU#1946134 Specifications

  • Pick-Up Device (size & type)

    1/3-inch 3-CCD Progressive

  • Picture Elements (pixels)

    Effective 1.1 million pixels

  • Quantization

    Video: 19bits; Audio: 16 bits/4ch

  • Signal Processin

    14bits

  • Sensitivity

    ISO 500

  • Minimum Illumination

    3lux (F1.6, +12dB gain and 1/24 sec. of shutter speed

  • Horizontal Resolution

    650 lines

  • Aspect Ratio

    16:9/4:3 Switchable

  • Lens

    Leica Dicomar lens w/13x zoom, O.I.S., motorized/manual mode switching, F1.6-3.0(f=3.9mm to 51mm/ 35mm equivalent: 28mm to 368mm)

  • ND Filter

    1/4, 1/16, 1/64

  • Focus

    Manual and Auto

  • Media Format

    P2 Memory Card

  • Recording Format

    DVCPRO HD: 1080/60i (30p over 60i, 24p over 60i, 24pA over 60i) 720/59.94p (30p over 24p over 60p) 720/30PN (Native) 720/24PN (Native) DVCPRO 50/DVCPRO/DV: 480/60i (30p over

  • Recording Playback Time

    Approx. 16 mins. (using one 16GB P2 card, recording in DVCPROHD 1080/60i) Approx. 32 mins. (using one 32GB P2 card, recording in DVCPROHD 1080/60i)

  • Frame Rates

    Variable 12/15/18/20/21/22/24/25/26/27/28/30/32/34/36/40/44/48/54/60 fps (20steps)

  • Shutter Speeds (sec.)

    60i/60p mode: (Preset) 1/60 (off), 1/100, 1/120, 1/250, 1/500, 1/1000,1/2000 sec.
    30p/30pN mode:1/30, 1/50 (off), 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
    24p/24pA/24pN mode: 1/24, 1/50 (off), 1/60, 1/120, 1/250, 1/500, 1/1000 sec

  • Slow Shutter Speeds (sec.)

    60i/60p mode: 1/15, 1/30 sec. 30p/30pN mode: 1/15 sec. 24p/24pN mode: 1/12 sec. (in 720p mode only)

  • Synchro-Scan Shutter (sec.)

    60i/60p mode: 1/60.0 sec. to 1/249.8 sec. 30p/30pN mode: 1/30.0 sec. to 1/249.8 sec. 24p/24pA/24pN mode: 1/24.0 sec. to 1/249.8 sec.

  • Assignable Scene Files

    6

  • Programmable User Buttons

    Yes

  • Filter Wheels

    3 Neutral Density

  • White Balance Selection

    A, B, Preset or ATW

  • Gain Selection (dB)

    60i/60p mode: 0/+3/+6/+9/+12/+18 dB, 30p/30pN/24p/24pA/24pN mode: 0/+3/+6/+9/+12 dB, when using slow shutter (1/12 or 1/15), 0dB fixed. when using under 23 fps flame rate, 0dB fixed.

  • Color Matrix

    4 preset

  • SMPTE Color Bar Generator

    Yes, 1kHz tone

  • Video Connections

    HD/SD-SDI out, Analog Component out, Analog Composite out

  • Audio Connections

    XLR input (3-pin, dual), Line output (pin-jack, 2-ch), Built-in microphone, stereo mini jack, Built-in speaker (20mm)

  • Other Connections

    IEEE 1394 (6-pin), USB 2.0, Camera remote (2.5mm diameter super mini jack for zoom and rec start/stop; 3.5 mm diameter mini jack for focus and iris)

  • SD Memory Card Slot

    Yes

  • LCD Screen

    3.5-inch color LCD

  • Viewfinder

    .44-inch color viewfinder

  • Power Supply

    DC 7.2V (with Battery) DC 7.9V (with AC adaptor)

  • Power Consumption

    10.9W (when LCD monitor is not used.) 11.7W (when LCD monitor is used.) 13.8W (MAX)

  • Operating Temperature

    32°F to +104°F (0°C to +40°C)

  • Operating Humidity

    10% to 85% (No condensation)

  • Dimensions (H x W x D)

    7.125'' x 6.125'' x 15.6875''

  • Weight

    4.19 lbs

About Panasonic AG-HPX170 1/3" 3 CCD P2 HD Handheld Camcorder - 2792 Hours SKU#1946134

The AG-HPX170 is an ultra-mobile P2 HD handheld camcorder featuring full, 4:2:2 independent frame production quality HD and solid-state recording. Based on the AG-HVX200 series, the lighter HPX170 is fully solid state (no DV mechanism), andcomes with a host of enhancements including a new 1/3" progressive 3-CCD imager system, wider Leica Dicomar 13X lens, an HD-SDI interface, metadata input and management, and a 5-year limited warranty (with registration).

Wide Choices in 1080i, 720p, 480i Recording:
The HPX170 has two P2 card slots and records in 20 HD and SD formats - from 1080i, 1080p, 720p to 480i. Its newly enhanced 1/3" progressive 16:9 3-CCD imager delivers an excellent signal-to-noise ratio, lower noise/smear, and exceptional low-light performance. High-end features like Dynamic Range Stretch (DRS) which allows for better control over highlights and shadows in run and gunsituations.

The digital signal processor with 14-bit A/D conversion and 19-bit processing assure high-quality recordings necessary for top-level production andbroadcast. Because the HPX170 scans the initial image at a 1080p/60 and all camera processing happens at his level. Because of this images maintain the highest quality possible up to the final conversion for compression and recording.

Wider Angle 13X Leica Dicomar Zoom Lens:
Utilizing a powerful 13X Leica Dicomar zoom lens, the HPX170 offers a wide 28mm (35mm equivalent) viewing angle, covering most shooting situations without the need for a wide-angle conversion lens. It also features an Optical Image Stabilizer (O.I.S.) function that ensures stable images during hand-held shooting.

Variable Frame Rates for Fast- or Slow-Motion Effects:
Like the HVX200A handheld, the HPX170 offers variable frame rate capability, providing professionals with the cinematic expression of higher-end cameras likethe Panasonic VariCam AJ-HDC27. Select from any of 20 steps, between 12 and 60,for undercranking/overcranking for fast or slow-motion effects.

Reliable Solid-State P2 Recording:
The HPX170 is ideal for professionals looking to take full advantage of the reliability and flexibility of the fast, file-based P2 workflow. P2 HD products have no moving parts, unlike tape, hard disk drive, or disc-based systems. It provides instant random access to recorded HD or SD content; and operates reliably in harsh environments, with resistance to temperature extremes, shock and vibration.

Using 32GB P2 cards in the HPX170's two card slots, you can record up to 160 minutes in full frame DVCPRO HD formats, 128 minutes in DVCPRO50, 256 minutes inDVCPRO. Recording times double with the use of a 64GB P2 card.

Panasonic AG-HPX170 1/3" 3 CCD P2 HD Handheld Camcorder - 2792 Hours SKU#1946134 Features

  • Ultra-mobile P2 HD handheld camcorder featuring full, 4:2:2 independent frame production quality HD & solid-state recording
  • Wide Choices in 1080i, 720p, 480i Recording
  • Wider Angle 13X Leica Dicomar Zoom Lens
  • Variable Frame Rates for Fast- or Slow-Motion Effec
  • Reliable Solid-State P2 Recording
  • HD/SD-SDI output for serial digital playout or live output of uncompressed audio/video signals
  • Enhanced metadata management feature saves details, like names or titles, onto the recorded clip
  • Additional Neutral Density filters, 1/4, 1/16, 1/64
  • 20 variable frame rate steps include: 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60
  • Built-in waveform monitor and vectorscope as well as three advanced focus assistfunctions (2X center zoom, histogram and focus bar display)
  • Dynamic Range Stretch in 60i/60p HD replaces News Gamma
  • Enhanced user buttons that allow you to delete the last clip, pre-record, selectP2 card slots or go into variable frame rates with the touch of the button
  • 6-pin Firewire with locking connection (no power out)
  • Dynamic focus ring/manual focus assist (300°/150° rotation) ensures camera reaches the last critical focus point. Iris/focus ring assignment switch enablesfocus ring to be the iris
  • 10X, 5X, 2X Digital Zoom in 1080/60i mode
  • Color bars with 1kHz tone
  • Camera playback format can be changed without going into menus
  • Time/date stamp burn-in for legal and surveillance work
  • Improved 3.5-inch LCD screen can also be flipped for use with 35mm adapters
  • Intuitive design - most cables face the rear to reduce conflicts; audio connections located in the same place
  • Lightweight (4.2lbs), yet durable construction with magnesium aluminum alloy (same as AG-HVX200 series)
  • Backed by Panasonic's 5-year limited warranty (must register after purchase)

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • AG-HPX170
  • 5400mA Battery
  • Lens Cap
  • Aftermarket Battery Charger
  • Item Note: Missing P2 card; AC Adapter/Battery Charger; Accessory Mic Holder; Component VideoCablewith RCA-BNC Adapters; Remote Control; Shoulder Strap
