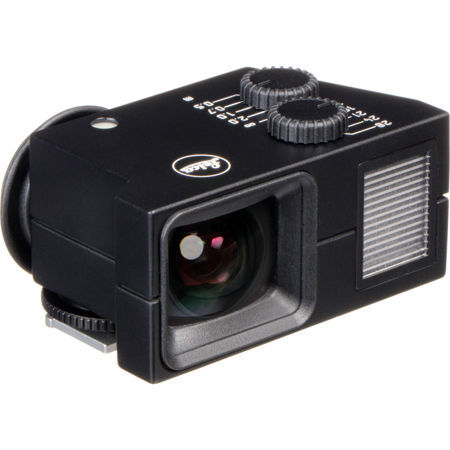

Leica Universal Wide Angle Finder M for the TRI-ELMAR-M 16-18-21mm f/4.0
Leica Universal Wide Angle Finder M for ...: Picture 1 thumbnail
Leica Universal Wide Angle Finder M for ...: Picture 2 thumbnail
Leica Universal Wide Angle Finder M for ...: Picture 3 thumbnail
Leica Universal Wide Angle Finder M for ...: Picture 4 thumbnail
Leica Universal Wide Angle Finder M for ...: Picture 5 thumbnail

Picture does not represent the actual item

See all Leica items
$20 PRICE DROPUsed Condition: Average

Used Leica Universal Wide Angle Finder M for the TRI-ELMAR-M 16-18-21mm f/4.0

SKU: US1946196 MFR: 12011 DISC
(1)
$618.00
$638.00
Save: $20 (3%)
OR
$103/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $618

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$84.99

3 Year

$132.99

4 Year

$180.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-08-21T12:40:08

Rated 3 out of 5

Big and ugly, but it works

The WATE finder is a beast, but it works for 16-28mm lenses you may mount on your rangefinder. There are two dials on the top that help you frame more accurately. The first is the focal length to set the frame lines for the proper angle of view. The second is a rough range distance to correct for parallax at closer focusing distances. An added, and helpful, bonus is a spirit bubble level to help keep the lens level when using extreme wide angle glass. While this finder is designed for the 16-21mm WATE, it also works with you 21 and 24mm lenses. Anything longer than that the camera should be able to frame for you. If you have one of the VC 11, 12, or 15mm's you are gun decking the framing or have to buy one of their specialized finders. One last negative is that you lose your hotshoe, but it doesn't impact my shooting, so I don't mind.

Jeremy A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Leica Universal Wide Angle Finder M for the TRI-ELMAR-M 16-18-21mm f/4.0 Specifications

  • Elements

    1 aspherical, 1 concave spherical mirror, lens elements with anomalous partial dispersion

  • Optics

    Reverse Galileo Telescope

  • Frames

    16, 18, 21, 24, & 28mm, mirrored in separately

  • Bright Line Frame Optics

    Eyepiece optics with 2 positive elements & aspherical mirror. Frames are mirrored into the viewfinder image by a beamsplitter prism set

  • Magnification

    .28x

  • Parallax Comp

    0.5m to Infinity in 5 click-stop positions

  • Spirit Level

    Mirrored in (fluorescent coating)

  • Compatibility

    Any camera with standard flash shoe

  • Optimum Interpupillary Distance

    15mm

  • Material

    Black Anodized Aluminum (Aluminum foot with clamping nut)

  • Dimensions

    DxWxH: Appx: 52x 70mm x 33mm (38mm w/foot)

  • Weight

    Appx. 150g

About Leica Universal Wide Angle Finder M for the TRI-ELMAR-M 16-18-21mm f/4.0

• The Leica Universal Wide-Angle Viewfinder M enables precise cropping of the subject with the LEICA TRI-ELMAR-M f/4/16-18-21 mm ASPH. on the LEICA M7 and MP as well as the digital LEICA M8. For the LEICA M8, the focal length extension factor of 1.33x has to be considered, so in this case the bright-line frames for 21, 24 or 28 mm are set on the LEICA UNIVERSAL WIDE-ANGLE VIEWFINDER M. A parallax compensation dial enables adjustment of the frame to the focusing distance in five steps.

Thanks to one aspherical lens element and one with achromatic correction, the LEICA UNIVERSAL WIDE-ANGLE VIEWFINDER M is insensitive to stray light and features high resolution and exceptional brilliance. An illuminated spirit level helps to keep the camera horizontal even in unfavorable light conditions. The eyepiece has a screw mount for optionally available diopter correction lenses.
