Used Blackmagic Design ATEM 1 M/E Constellation 4K UHD Live Production Switcher

SKU: US1947316 MFR: SWATEMSCN2/2ME1/4K
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design ATEM 1 M/E Constellation 4K UHD Live Production Switcher

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$125.99

3 Year

$195.99

4 Year

$267.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design ATEM M/E 4K Specifications

Connections

Connections

Jump to...
  • Total Video Inputs

    10

  • Total Video Outputs

    6

  • SDI Rates

    1.5G, 3G, 6G, 12G

  • Total Audio Inputs

    2x balanced 1/4 inch Jack, 1x 5 pin XLR Talkback

  • Total Audio Outputs

    1 x 5 pin XLR Talkback

  • SDI Audio Inputs

    16 Ch embedded audio on all SDI inputs

  • SDI Audio Outputs

    16 Ch embedded audio on all SDI outputs

  • Timecode Connections

    None

  • Reference Input

    Tri-Sync or Black Burst

  • Video Input Re-Sync

    On all 10 inputs

  • Frame Rate and Format Converters

    On all 10 inputs

  • SDI Aux Outputs

    Any of the 6 SDI outputs

  • SDI Preview Outputs

    Any of the 6 SDI outputs

  • SDI Program Outputs

    Any of the 6 SDI outputs

  • Down Converted SDI Program Output

    1

  • Webcam Output

    1x USB-C supporting 720p or 1080p at PGM frame rate

  • Total Multi Views

    1x 12G-SDI

  • Control Panel Connection

    Ethernet. Direct connection between panel and chassis, or via network

  • Internal Timecode Generator

    Yes

  • Talkback

    RJ45 for 3rd party talkback systems

  • Tally Output

    Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)

  • Ethernet

    Supports 10/100/1000 BASE-T

  • Computer Interface

    1 x USB-C supports USB 2.0

Standards

Jump to...
  • SD Video Standards

    None

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97
    2160p30, 2160p50, 2160p59.94, 2160p60

  • SDI Compliance

    SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 709, REC 2020

  • SDI Auto Switching

    Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI

Product Specifics

Jump to...
  • Upstream Keyers

    4

  • Downstream Keyers

    1

  • Advanced Chroma Keyers

    4

  • DVEs

    1

  • Linear/Luma Keyers

    5

  • Transition Keyer (Stinger/DVE)

    1 Stinger, 1 DVE

  • Total Number of Layers

    7

  • Pattern Generators

    5

  • Color Generators

    2

  • Control Panel

    Front fascia emergency switching, software or optional hardware panel

  • Routable Windows

    16

  • Windows Source Labels

    Yes

  • Tally

    Red for program and green for preview indication

  • Talkback Support

    Yes

  • Mix Minus Support

    Yes

Multi View Monitoring

Jump to...
  • Multi View Monitoring

    1x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters

  • Multi View Video Standard

    HD or Ultra HD

Media Player

Jump to...
  • Media Players

    2

  • Channels

    Fill and key for each media player

  • Media Pool Still Image Capacity

    20

  • Media Pool Clip Capacity

    2 x up to 2160p60

  • Media Player Clip Length

    720 HD: 1600 frames.
    1080 HD: 800 frames.
    2160 UHD: 200 frames

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

  • Media Pool Video File Format

    TGA Sequence

  • Media Pool Audio File Format

    WAV, MP3 and AIFF

Display

Jump to...
  • Front panel

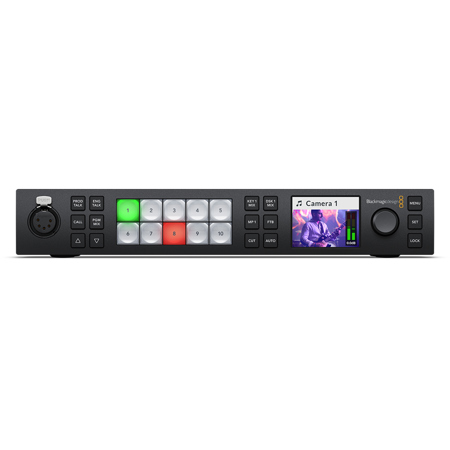

    Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

Processing

Jump to...
  • Processing Delay

    < 10 lines

  • Audio Mixer

    28 Channel mixer
    Selectable On/Off/Audio-Follow-Video.
    Level and Peak metering.
    Master gain control.
    6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter

  • Down Conversion

    1x selectable HD down converted output

Software

Jump to...
  • Control Panel Included

    ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11

  • Software Updates

    Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

Jump to...
  • Operating Systems

    Mac: Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
    Windows: Windows 10 and 11

Power Requirements

Jump to...
  • Power Supply

    1x Internal 100 - 240 AC

  • Power Usage

    90 W

Environmental

Jump to...
  • Operating Temperature

    0 Degree to 40 Degree C (32 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 60 Degree C (-4 Degree to 140 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Physical Installation

    2/3 rack unit width, 1 rack unit height

  • Dimensions

    11 x 8.91 x 1.74" (27.94 x 22.63 x 4.41cm)

  • Weight

    4.12 lbs (1.86kg)

About Blackmagic Design ATEM 1 M/E Constellation 4K UHD Live Production Switcher

Discover the ATEM 1 M/E Constellation 4K UHD Live Production Switcher, a powerhouse in Ultra HD live production technology. This advanced switcher is equipped with 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM Advanced Keyers, a 16-way multiview, media players, and a USB webcam output.

Experience the convenience of built-in talkback and the professional-grade 28-channel Fairlight audio mixer with EQ and dynamics. The ATEM Constellation is a game-changer in the world of HD and 4K live production switchers, offering unmatched power and versatility.

This compact, rack-mount design switcher comes with a built-in control panel, allowing for easy operation during setup or emergencies. It also features a large LCD for program output viewing and switcher settings adjustment via on-screen menus. The compact design makes it ideal for portable live production, with the rear of the switcher housing connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio, and Ethernet for control.

The ATEM 1 M/E Constellation 4K is perfect for massive live events, from concerts and music festivals to live sports. With its powerful internal graphics and advanced chroma keyers, it provides everything you need for complex program production.

The ATEM Constellation employs a professional "program/preview" style operation, mirroring the way large broadcasters use live production switchers. This ensures fewer mistakes and makes the ATEM Constellation an excellent training tool for students pursuing a career in broadcast television.

The ATEM Constellation family features HD models with up to 40 independent 3G-SDI inputs and 4K models with 12G-SDI inputs. Each input comes with its own dedicated up and cross converter, allowing for the conversion of any 1080p input source to the video standard of the switcher.

The ATEM Constellation also boasts a massive number of fully independent outputs. The 1 M/E models have 6 outputs, the 2 M/E models have 12 outputs, and the 4 M/E models have a staggering 24 outputs. These SDI outputs can independently route any SDI input or any internal source to each SDI output, perfect for running independent feeds to stage screens, master recorders, and streaming processors.

For live streaming, the USB-C connection on ATEM Constellation operates as a webcam source, ensuring full compatibility with any video software in full resolution 1080HD quality. This makes it ideal for presentations with a professional multi-camera broadcast quality style.

The ATEM Constellation includes a built-in multiview that lets you monitor multiple sources on a single monitor. All external SDI inputs, plus all internal video sources, can be routed to any view. All multiviews are fully customizable and can be independently set to 4, 7, 10, 13, or 16 simultaneous views.

With the ATEM 1 M/E Constellation 4K UHD Live Production Switcher, you're not just getting a piece of equipment; you're investing in a tool that will revolutionize your live production capabilities.

Blackmagic Design ATEM 1 M/E Constellation 4K UHD Live Production Switcher Features

  • Advanced design with built in front panel controls
  • 10 standards converted 12G-SDI inputs
  • 6x 12G-SDI outputs
  • USB output operates as a webcam and supports all video software
  • Includes DVE and stinger transitions
  • Includes 1x independent DVEs
  • Professional talkback compatible with ClearCom and RTS
  • Internal media for stills and motion graphics
  • Includes ATEM Advanced Chroma Key
  • Multi rate 12G-SDI for all Ultra HD television standards up to 2160p60
  • Built in Fairlight audio mixer with 28 channels
  • Compatible with all ATEM hardware control panels

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Blackmagic Design ATEM 1 M/E Constellation 4K UHD Live Production Switcher
