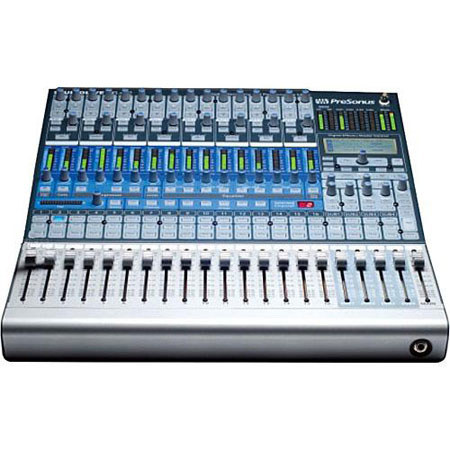

PreSonus StudioLive 16.4.2 16 Channel Performance and Recording Digital Mixer

Picture does not represent the actual item
See what's in the box

See all PreSonus items
Used Condition: Excellent

Used PreSonus StudioLive 16.4.2 16 Channel Performance and Recording Digital Mixer

Item Note: MissingRack Ear Installation Kit; 6-Pin to 6-Pin FireWire 400 Cable; IEC Power Cable

SKU: US1948698 MFR: STUDIOLIVE16.4.2
Be the first to review this item
$479.00
OR
$80/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $479

What`s in the box:

  • PreSonus StudioLive 16.4.2 16 Channel Performance and Recording Digital Mixer ** Item Note: MissingRack Ear Installation Kit; 6-Pin to 6-Pin FireWire 400 Cable; IEC Power Cable **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

PreSonus 16.4.2 Mixers & Amplifier Specifications

  • Input/Output 1

    16 main inputs, each with XLR mic, ¼" line, and ¼" inserts
    2 1/4" stereo (L/R) aux inputs
    1 XLR talkback-mic input with phantom power and level control
    Unbalanced RCA stereo (L/R) tape inputs and outputs
    XLR stereo (L/R) main outputs with level control
    1/4" stereo (L/R) main outputs
    XLR mono output with level control

  • Input/Output 2


    1/4" stereo (L/R) control-room outputs
    1/4" Headphone output
    4 1/4" subgroup outputs
    6 1/4" aux outputs
    16 pre-insert, balanced direct outputs, Ch. 1-8, 9-16, 17-24 (DB25 sockets)
    S/PDIF digital out
    2 FireWire 400 ports

  • Digitalia

    High-definition analog-to-digital converters (118 dB dynamic range)
    Unlimited-headroom, 32-bit floating point, digital mixing and effects processing
    Internal sample frequency 44.1 kHz and 48 kHz

  • Computer system requirements 1

    Windows: Windows 7, Vista, XP (32-bit and 64-bit)
    Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 (Turion) (2.5 GHz or faster recommended)
    1 GB RAM (2 GB or more recommended)

  • Computer system requirements 2

    Macintosh: Mac OS X 10.5.2 or later (32-bit and 64-bit)
    PowerPC G4 1.25 GHz or Intel Core Solo 1.5 GHz processor (2 GHz or faster recommended)
    1 GB RAM (2 GB or more recommended)

  • Computer system requirements 3

    Windows and Macintosh Systems: IEEE 1394 FireWire 400 Port
    Internet connection recommended
    DVD-ROM drive
    Internal or external 7200 RPM storage drive highly recommended

  • Microphone Preamp Type

    XLR Female, Balanced

  • Frequency Response to Direct Output

    20 Hz to 40 kHz +/-0.5dBu

  • Frequency Response to Main Output

    20 Hz to 20 kHz +/-0.5dBu

  • Input Impedance (Balanced)

    1K Ohm

  • THD to Direct Output

    < 0.005%, +4dBu, 20-20kHz, unity gain, unwtd

  • THD to Direct Output

    < 0.005%, +4dBu, 20-20kHz, unity gain, unwtd

  • THD to Main Output)

    < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

  • EIN to Direct Output

    +125 dB unwtd,, +130 dB A-wtd

  • S/N Ratio to Direct Output

    -97 dB

  • S/N Ratio to Direct Output

    -97 dB

  • S/N Ratio to Main Output

    -94 dB

  • S/N Ratio to Main Output

    -94 dB

  • Common Mode Rejection Ratio

    +65 dB

  • Gain Control Range

    -16 dB to +67 dB (+/- 1 dB)

  • Gain Control Range

    -16 dB to +67 dB (+/- 1 dB)

  • Maximum Input Level (unity gain)

    +16 dBu

  • Phantom Power

    +48 VDC

  • Line Inputs Type

    1/4" TRS Female, balanced mono

  • Frequency Response to Direct Outputs

    10-40 kHz, 0 / -0.5 dBu

  • Frequency Response to Main Outputs

    20-20 kHz, +/- 0.5 dBu

  • Input Impedance

    10 kohms

  • THD to Main Output

    < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

  • Maximum Input level (unity gain)

    +22 dBu

  • Tape Inputs Type

    1/4" TRS Female, balanced mono

  • Tape Inputs Maximum Input Level

    +10 dBu

  • Auxiliary Inputs Type

    1/4" TRS Female, balanced (2 stereo pairs)

  • Auxiliary Inputs Maximum Input Level

    +22 dBu

  • Main Outputs Type

    Male, balanced (stereo pair); 1/4" TRS Female, balanced (stereo pair); XLR Male, balanced (mono)

  • Main Outputs Rated Output Level

    +24 dBu

  • Main Outputs Output Impedance

    10 kohms

  • Aux Outputs Type

    1/4" TRS Female, balanced (mono)

  • Aux Outputs Rated Output Level

    +18 dBu

  • Aux Outputs Impedance

    51 ohms

  • Subgroup Outputs Type

    1/4" TRS Female, balanced (mono)

  • Subgroup Outputs Rated Output Level

    +18 dBu

  • Subgroup Outputs Impedance

    51 ohms

  • Tape Outputs Type

    RCA Female, unbalanced (stereo pair)

  • Tape Outputs Rated Output Level

    +18 dBu

  • Tape Output Impedance

    100 ohms

  • Control Room Outputs Type

    1/4" TRS Female, balanced (stereo pair)

  • Control Room Outputs Rated Output Level

    +18 dBu

  • Control Room Outputs Impedance

    51 ohms

  • System Cross Talk Input to Output

    -90 dBu

  • System Cross Talk Adjacent Channels

    -87 dBu

  • Noise Gate / Expander Threshold Range

    -84 dB to 0 dB

  • Noise Gate / Expander Attack Time

    0.5 ms

  • Noise Gate / Expander Release Time

    0.05s to 2s

  • Noise Gate / Expander Attenuation Range

    2:1

  • Compressor Threshold Range

    -56 dB to 0 dB

  • Compressor Ratio

    1:1 to 14:1

  • Compressor Attack Time

    0.2 ms to 150 ms

  • Compressor Release Time

    40 ms to 1000 ms

  • Compressor Auto Attack and Release

    Attack = 10 ms, Release = 150 ms

  • Compressor Curve Types

    Hard and soft knee

  • EQ Type

    2nd order shelving filter (Q = 0.55)

  • EQ Low (Lowpass or Bandpass)

    36 to 465 Hz, +/- 15 dB

  • EQ Low Mid

    90 Hz to 1.2 kHz, +/-15 dB

  • EQ High Mid

    380 Hz to 5 kHz, +/-15 dB

  • EQ High (Highpass or Bandpass)

    1.4 kHz to 18 kHz, +/-15 dB

  • ADC Dynamic Range (A-wtd, 48 kHz)

    118 dB

  • DAC Dynamic Range (A-wtd, 48 kHz)

    118 dB

  • FireWire

    S400, 400Mb/s

  • Internal Processing

    32-bit, floating point

  • Sampling Rate

    44.1, 48 kHz

  • A/D/A Bit Depth

    24

  • Reference Level for 0 dBFS

    -18 dBu

  • Jitter

    < 20 ps RMS (20 Hz - 20 kHz)

  • Jitter Attenuation

    > 60 dB (1 ns in = 1 ps out)

  • Power/Environmental Connector

    IEC

  • Input-Voltage Range

    100 to 240 V approx, 50-60Hz

  • Power Requirements (continuous)

    100 W

  • Temperature Range

    0 - 40 degrees Celsius

  • Dimensions

    23.4" x 17.2" x 6.9" / 568 x 437 x 175 mm

  • Weight

    23 lbs / 10.43kg

About PreSonus StudioLive 16.4.2 16 Channel Performance and Recording Digital Mixer

You'll never go back to an old-school analog mixer once you've used StudioLive. With its incredible signal-processing power on every channel, easy store and recall of every setting, and the ability to record it all with just two mouse clicks, you'll get spoiled fast!

Easier to use, better sounding, and flawlessly integrated with state-of-the-art software, it delivers the most creative environment possible for both live performance and studio music production.

But StudioLive is not simply a mixer, it's a rapidly growing family of state-of-the-art, integrated hardware-software mixing and recording systems that deliver the features you need for live sound, live recording, and studio recording.

The StudioLive 16.4.2 is a great choice for those who want to mix smaller shows and worship services, and it's a great choice for small club systems, portable churches, small bands, corporate applications, educational institutions, and anywhere you want a rack-mount mixer. It's the perfect hardware core for a project studio. Or daisy-chain two StudioLive 16.4.2s to form a 32x4x2 performance and recording console for mid-sized shows and events.

Here, in one device, are high-headroom XMAX microphone preamplifiers, a built-in FireWire recording and playback interface, more than 90 signal processors, a big library of DSP effects, 6 aux buses, 4 subgroups, extensive LED metering, mixer save and recall, channel-strip save/recall/copy/paste, talkback, and more. Yet despite its many controls and features, it's compact, rack-mountable, and easy to transport.

Build live mixes that glisten with clarity and detail-then record and enhance the performance with the power of StudioLive 16.4.2. Get creative in the studio. Build mixes, loops, sound effects, and more, then bring them out to your show and mix them with the live performance.

Process channels using your favorite plug-ins and completely automate your entire performance. StudioLive 16.4.2 revolutionizes music production, opening endless creative possibilities.

PreSonus StudioLive 16.4.2 16 Channel Performance and Recording Digital Mixer Features

  • 30 compressors, 30 limiters, 30 gate/expanders, and 30 4-band EQs
  • 16 input channels with preamps, XLR, 1/4" TRS, inserts, and direct outs, 6 auxiliary mixes, and 4 subgroups
  • Compact rack-mountable steel design (with rack ear kit included)
  • High-quality digital converters with 118dB of dynamic range
  • 32-bit floating point digital audio and effects engine with unlimited headroom
  • Ability to quickly copy and paste channel settings
  • Save and recall settings, parameters, and scenes (which includes fader levels with LED position matching)
  • 100mm long throw faders, illuminated buttons, and multiple meter bridges to easily stay on top of all levels and control parameters
  • Bundled with PreSonus Studio One Artist DAW software
  • FireWire connectivity enables you to record 22 inputs simultaneously, and a second FireWire port allows 18 return tracks for real-time mix downs
  • Compatible with most DAW software including Logic, Nuendo, Cubase, Sonar, Digital Performer and more
  • Ability to daisy-chain a Presonus FireStudio-series interface (like the FireStudio Tube or FireStudio Project) to provide additional inputs
  • Easily link up to 4 StudioLive 16.4.2 mixers together for a total of 64 channels
  • Rugged, non-flex steel chassis
  • 100 mm long-throw faders
  • BNC 12V lamp socket
