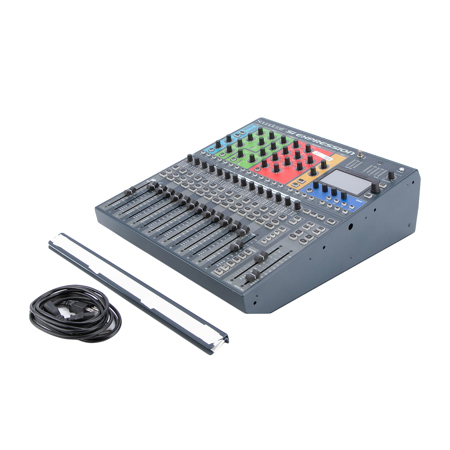

Used Soundcraft Si Expression 1 Digital Mixer, 16 Microphone Pre-Amplifiers, 14 Multi-Color Illuminating Faders, 66 Input Processing Channels

SKU: US1948757 MFR: 5035677
Earn VIP Reward Points

What`s in the box:

  • Soundcraft Si Expression 1 Digital Mixer
  • Power Cord

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$111.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Soundcraft Si Expression 1 Specifications

  • Analogue/Digital

    Digital

  • Frame Sizes

    66

  • Stereo Channels

    variable

  • FX Processors

    4

  • Fixed Send (Group) Buses

    0

  • EQ Bands

    4

  • Variable Send (Aux) Buses

    24

  • Returns

    6

  • Direct Outputs

    Yes

  • Matrix Buses

    8

  • Main Bus Out:

    LRC

  • Frequency Response

    Mic Input to Line Output: +0/-1dB, 20Hz - 20kHz
    Stereo Input to Master Output: +0.5/-0.5dB, 20Hz - 20kHz

  • T.H.D. and Noise

    Mic Input (Min Gain) to Bus Output: 0.006% at 1kHz
    Mic Input (Max Gain) to Bus Output: 0.008% at 1kHz
    Residual noise, Master Output, no inputs routed, mix fader at 0dB: <-88dBu
    Mic Input E.I.N. (maximum gain): -126dBu (150Ohms source)
    Mix noise, masters at unity: < -86dBu
    1 input to mix at unity gain: -84dBu
    CMRR mic at 1kHz (max gain): -80dBu

  • Crosstalk ( at 1kHz)

    Channel ON attenuation: <120dB
    Channel Fader attenuation: <120dB
    Mic - Mic: -100dB at 1kHz, -85dB at 10kHz
    Line - Line: -100dB at 1kHz, -85dB at 10kHz

  • Input Gain

    Mic Gain: -5dB - 58dB integrated pad design 1dB steps
    Line Trim: -10dB - +16dB

  • EQ

    HI MID & LO MID: 22Hz - 20kHz, +/-15dB Q 6-0.3
    Shelf (HF): 800Hz - 20kHz, +/-15dB
    Shelf (LF): 20Hz - 500Hz, +/-15dB
    HPF: 40Hz - 1kHz
    GEQ: 31Hz - 16kHz 1/3 octave

  • Delay

    User adjustable delay: 1 sample - 500ms

  • Digital I/O

    Converter resolution: 24-bit
    DSP resolution: 40-bit floating point

  • Latency

    Mic In to Line Out: <0.8 ms
    Analogue in to AES out: <0.6 ms
    AES in to Line Out: <0.8 ms
    AES in to AES out: <0.5 ms
    Stagebox Mic In to Stagebox: <0.9 ms

  • Input & Output Levels

    Mic Input: +22dBu max
    Line Input: +22dBu max
    Mix Output: +21.5dBu max
    Headphones ( at 150Ohm): 300mW (recommended impedance 32 to 200Ohm)

  • Input & Output Impedances

    Mic Input: 2kOhms
    Line Input: >10kOhms
    AES Input: 110Ohms
    Outputs: 150Ohms (balanced), 75Ohms (unbalanced)
    Word Clock used as Output: 50Ohms
    Word Clock used as Input: 4k7Ohms
    AES Output: 110Ohms

  • Lamp Output

    12v DC: 100mA max (per socket)

  • Power

    AC Input voltage range: 88-264VAC auto sensing
    AC Frequency range: 47-63Hz

  • Operating Conditions

    Operating Temperature Range: 5deg.C to 45deg.C
    Humidity: 0%-90%, non condensing: 40deg.C (104deg.F)
    Storage Temperature Range: -20deg.C to 60deg.C (-4deg.F to 140deg.F)

  • Dimensions (W x D x H)

    19 x 20.5 x 6.6" / 48.26 x 52.07 x 16.76cm
    Width with rack ears removed: 17.5" / 44.45cm

  • Weight

    11.8kg (26lbs)

About Soundcraft Si Expression 1 Digital Mixer - SKU#1948757

The Soundcraft Si Expression 1 Digital Mixer features 16 recallable mic pre amps (24 on Si Expression 2 and 32 on Si Expression 3) plus 4 line inputs, 4 internal stereo FX returns, AES in and a 64x64 expansion slot offering more than enough scope to use every one of the 66 input processing channels. Every input processing channel has dedicated processing for high pass filter, input delay, gate, compressor and four band EQ whilst keeping it under control is a comprehensive automation system augmented with four mute groups and FaderGlow to light the way so you are never lost.

This Si Expression 1 console has busses, output processing and connectivity to match the versatility of the inputs; the 14 aux/group mixes can be configured as 14 mono mixes, 8 mono plus 6 stereo mixes or almost anything in between, whilst the 4 matrix mixes can be mono or stereo as needed. The bus and matrix mixes are complemented with four more mix busses dedicated to the internal Lexicon FX processors all in addition to the left, right and centre busses. Each bus mix features a compressor, 4 band EQ, BSS graphic EQ and delay always available all of the time. Output connectivity is comprehensive with all models featuring 16 balanced line outputs, headphone monitor out, AES out and of course the 64x64 option slot.

To complement the channel and bus processing the Si Expression 1 console integrates four stereo Lexicon FX processors based on the MX400 providing a wealth of sounds, user adjustable parameters and dedicated tap-tempo keys. As the FX are hardware based, use of all the effects, even on the most demanding programmes does not affect other processing in any way and all dynamics, EQs, filters, delays and GEQs remain available regardless what you are doing.

Flexible onboard and expansion I/O options ensure your Si Expression integrates effortlessly with other system components utilizing any of the ViSi Connect Si series option cards including MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU Link), Dante, CAT5 or optical MADI, AVIOM, CobraNet and others. The MADI card, as well as being an interface to multi-track recording systems or plug-in systems like the Soundcraft Realtime Rack, enables users to link the Si Expression to any of the Soundcraft or Studer stageboxes to extend the I/O power and flexibility. Adding a stagebox to Si Expression actually increases the number of channels you can mix at once not just how many inputs you have available to choose from.

Soundcraft Si Expression 1 Digital Mixer - SKU#1948757 Features

  • Massive mix capacity - 66 inputs to mix in a small format live sound digital mixer
  • 1 ViSi Connect option card slot for 64x64 expansion of digital I/O including the MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU Link), Dante, CAT5 or optical MADI, AVIOM, CobraNet and others
  • Assignable Fader Layers - Customize each of the four fader layer pages to meet your needs or add/insert faders to accommodate that additional mic that was not in the patch list!
  • 1 Control = 1 Function - With each control dedicated to a given function there is never any 'layering' of controls or navigating through screens; this allows the Si Performer controls to be labeled on the surface just as they would have been on an analogue mixer
  • TOTEM - The One Touch Easy Mix; press a single key to mix to an AUX, FX or Matrix bus, the surface and monitoring instantly reconfigure to allow instant mixing to your chosen bus on the faders
  • Soundcraft FaderGlow - Illuminates the fader slots according to function with clearly defined colors for FX, Stereo, Linked Mono, GEQ, POST Fade Aux, PRE Fade Aux; you'll never be lost again!
  • BSS GEQ - With a BSS GEQ on every bus there is never any need to assign from a pool of resources and you will never 'run out' of processing
  • Security Lockout - Lock the whole console or just selected elements, manage the security with the users and profile settings
  • Personal Monitoring Interface - When used with the Si BLU link option card, the Si Performer is a perfect partner to the dbx PMC16 Personal Monitoring System, using simple Cat5 cabling for easy setup
  • D.O.G.S. (Direct Out Gain Stabilizer) - Prevents manual change of a mic gain control affecting direct out levels, perfect when 2 consoles share a stagebox or when recording the channel direct outputs
  • Global Mode Controls - A row of rotary controls above each fader assignable at the touch of a button to be GAIN, PAN or HPF for all of the inputs allowing instant access to the core functions
  • Copy & Paste - Copy whole channels, busses, mixes, Lexicon effects, a single part such as the EQ or multiple parts like the channel gate and compressor
  • Instant Access Keys - Dedicated keys on the front panel for STORE, RECALL, NEXT, MUTE 1-4, TAP TEMPO and more negate the need to dive into screen & context menus
  • Function Focus - Whenever a control is moved or SELect key pressed the screen displays information about the channel identifying the absolute value of the controls and the channel name, number etc..
  • Everything Everywhere - All channels and busses have a full complement of processing, nothing to assign or configure

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • Soundcraft Si Expression 1 Digital Mixer
  • Power Cord
