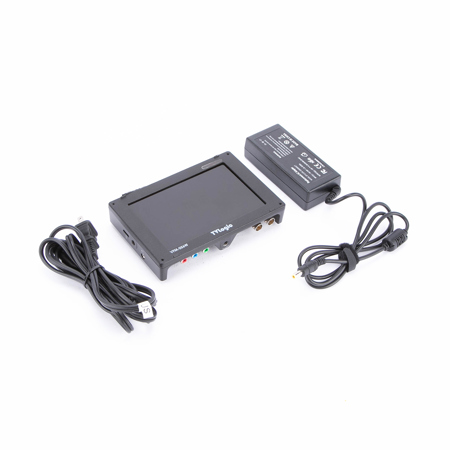

Used TV Logic VFM-056WP 5.6" LCD HD/SD-SDI HDMI Monitor with Waveform, 1280x800 Resolution, 500:1 Contrast Ratio, 300 cd/m2 (Center) Luminance

The TVLogic VFM-056WP 5.6" LCD 3G HD/SD-SDI HDMI Monitor with Loop-Through is a lightweight, LED backlit LCD monitor with features such as DSLR Scale, Focus Assist, Various Scan Modes, Markers, Audio Level Meter with speaker and time code display. The VFM-056WP 5.6" High-Resolution Compact LCD Monitor has a 6" x 4" x 1" lightweight magnesium-alloy case, which helps the unit weigh less than 11 oz (without battery plate). This monitor accepts multiple input formats including analog, 3G-SDI and HDMI, plus it has a HDMI direct loop out via HD-SDI (1280 x 720 59.94i/p only).

The TVLogic VFM-056W also features a DSLR scale function, this function is especially designed for some DSLR cameras whose outputs have different resolution while previewing and recording or during playback. In the case of the Canon 5D Mark II, when the record button is pressed resolution drops from 1080i in preview mode to 480p. The DSLR Scale function scales the image to 1280 x 800 (Panel Resolution) and displays it Full Screen. Various battery brackets are available for this monitor including: Canon, Sony, Panasonic and AA. The TVLogic VFM-056WP 5.6" LCD HD/SD-SDI HDMI Monitor has (4) mounting holes that are tapped to 1/4"-20, one on each side, top and bottom of the monitor's case.
