TV Logic VFM-055A 5.5" FHD OLED High-Contrast 3G-SDI & HDMI Viewfinder Monitor
TV Logic VFM-055A: Picture 1 thumbnail
TV Logic VFM-055A: Picture 2 thumbnail
TV Logic VFM-055A: Picture 3 thumbnail
TV Logic VFM-055A: Picture 4 thumbnail
TV Logic VFM-055A: Picture 5 thumbnail
TV Logic VFM-055A: Picture 6 thumbnail
TV Logic VFM-055A: Picture 7 thumbnail
TV Logic VFM-055A: Picture 8 thumbnail
TV Logic VFM-055A: Picture 9 thumbnail
See all TV Logic items
Used Condition: Well Used

Used TV Logic VFM-055A 5.5" FHD OLED High-Contrast 3G-SDI & HDMI Viewfinder Monitor

SKU: US1949197 MFR: VFM-055A
Be the first to review this item
$277.00
OR
$47/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (2) from $139

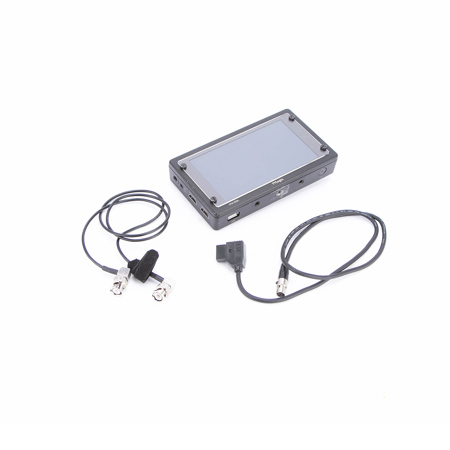

What`s in the box:

  • TV Logic VFM-055A 5.5 " Monitor
  • D-Tap Cable
  • SDI Cable

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$40.99

2 Year

$54.99

3 Year

$85.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

TV Logic VFM-055A Specifications

LCD

LCD

Jump to...

  • Size

    5.5"

  • Resolution

    1920x1080 (16:9)

  • Pixel Pitch

    HxW: 0.063x0.063mm

  • Color Depth

    16.7M (True)

  • Viewing Angle

    H: 160 degrees / V: 160 degrees

  • Luminance of white

    350cd/m2 (Center)

  • Contrast Ratio

    17000 : 1

  • Display Area

    HxV: 121.4 x 68.3mm (4.78 x 2.69")

Input

Jump to...

  • HDMI

    HDMI V1.2 Input 1 Ch

  • BNC

    3G/HD/SD SDI Input 1Ch

Output

Jump to...

  • HDMI

    HDMI-HDMI, SDI-HDMI (Conversion)

  • BNC

    3G/HD/SD SDI Output 1Ch, HDMI-SDI (Conversion)

Input Signal

Jump to...

  • 3G-SDI

    2.970Gbps

  • HD-SDI

    1.485Gbps

  • SD-SDI

    270Mbps

  • HDMI

    480i / 480p / 576i / 576p / 720p / 1080i / 1080p

SDI Input Signal Formats

Jump to...

  • SMPTE-425M-A/B

    1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    1080i(60/59.94/50)

  • SMPTE-274M

    1080i (60/59.94/50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE-296M

    720p (60/59.94/50)

  • SMPTE-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

Audio

Jump to...

  • Audio In

    SDI Embedded Audio (Group, Channel Selectable)

  • Audio Out

    External Output Port (3.5m Phone Jack)

Power

Jump to...

  • Power

    DC 6.8-12V

  • Tally Signal In/Out Level

    DC5V +/-2V

Environmental

Jump to...

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

General

Jump to...

  • Dimensions

    Main Body: 162.5 x 92 x 35.8mm (6.40 x 3.62 x 1.41")

  • Weight

    0.42kg (0.93 lbs)

About TV Logic VFM-055A 5.5" FHD OLED High-Contrast 3G-SDI & HDMI Viewfinder Monitor

The VFM-055A is a 5.5" OLED (organic LED) on-camera viewfinder monitor with native 1920x1080 resolution. It offers truly cinematic image quality with deep blacks, wide-gamut color reproduction, a very wide viewing angle and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions include cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output options.

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TV Logic VFM-055A 5.5 " Monitor
  • D-Tap Cable
  • SDI Cable
