DJI Ronin 4D Specifications

Included Items

Included Items

Jump to...
  • Additional Included Items

    3x 10mm 1/4"-20 Screw
    Flat Head Screwdriver
    2.5mm Ball-End Hex Key
    X9 Gimbal Base Cap
    DX Mount Body Cap
    DX Mount Lens Cap
    Ronin 4D Gimbal Base Cap
    TB50 Intelligent Battery
    LiDAR Range Finder/Focus Motor Cable
    Left Hand Grip Strap
    Right Hand Grip Strap
    Ronin 4D Carrying Case
    X9 Counterweight (106g)

General

Jump to...
  • Max Operating Time

    Approx. 150 minutes

  • Intelligent Features

    ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Sensor Size

    35mm full-frame CMOS image sensor

  • Base Lens Mount

    DX Mount, and support for other mount units

  • Supported Lens Mounts

    DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party)

  • DL Lens

    DJI DL 18 mm F2.8 ASPH Lens
    DJI DL 24 mm F2.8 LS ASPH Lens
    DJI DL 35 mm F2.8 LS ASPH Lens
    DJI DL 50 mm F2.8 LS ASPH Lens

  • Dynamic Range

    14+ stops

  • White Balance

    Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB

  • Gamma

    D-Log, Rec.709, HLG

  • EI Range

    X9-6K: EI 200-12800, Dual Native ISO 800/5000

  • Shutter Speed

    Electronic Rolling Shutter 1/24s-1/8000s

  • ND

    Built-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)

  • Focus Control

    Autofocus, Manual Focus, Automated Manual Focus

  • Supported File System

    exFAT

  • Recording Format

    Apple ProRes RAW HQ/Apple ProRes RAW
    Apple ProRes 4444 XQ
    Apple ProRes 422 HQ/Apple ProRes 422
    H.264 (4:2:0 10-bit)

  • DJI PROSSD 1TB Recording Format

    No restriction on recording format

  • CFexpress 2.0 Type B Recording Format

    ProRes 422 HQ:
    6K: 23.976/24/25/29.97/30fps
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

    H.264:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

  • USB-C SSD Recording Format

    ProRes 422 HQ:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

    H.264:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

  • Built-in Mic

    Built-in 2-ch stereo

  • Audio Format

    LPCM 2-ch, 24-bit 48kHz

  • Mechanical Range

    Pan: +/-330 Degree
    Tilt: -75 Degree to 175 Degree
    Roll: -90 Degree to 230 Degree
    Z-Axis Range: approx 130mm

  • Controllable Range

    Pan: +/-285 Degree
    Tilt: -55 Degree to +155 Degree
    Roll: +/-35 Degree

  • Max Control Speed

    DJI Master Wheels or DJI Force Pro:
    Tilt: 360 Degree /s
    Roll: 360 Degree /s
    Pan: 360 Degree /s

    Ronin 4D Hand Grips:
    Tilt: 120 Degree /s
    Roll: 120 Degree /s
    Pan: 120 Degree /s

  • Maximum Z-Axis Payload

    4.4 lbs (2kg) (including 2.3 lbs (1.04kg) gimbal)

  • Angular Vibration Range

    +/-0.01 Degree

LiDAR Range Finder

Jump to...
  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • LiDAR Range Measurement Precision

    0.3-1m ( +/-1%)
    1-10m ( +/-1.5%)

  • FOV

    30cm to 3m @>18% reflectivity 60 Degree (horizontal) x 45 Degree (vertical)
    30cm to 10m @>18% reflectivity 60 Degree (horizontal) x 7 Degree (vertical)

  • Safety Rating

    Class 1 (IEC 60825-1:2014) (safe for human eyes)

  • Operating Environment

    Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
    DO NOT use in environments with dense fog or aim it at or through glass surfaces.

  • Laser Wavelength

    940 nm

  • Single Pulse Width

    Two kinds of pulses emit in circulation: 5ns and 33.4ns.

  • Max Laser Power

    6 W

  • Dimensions (L x W x H)

    2.7 x 1.8 x 1.3" (71 x 47 x 34mm)

  • Weight

    3 oz (88g)

Main Monitor

Jump to...
  • Screen Size

    5.5" (13.9cm) (diagonal)

  • Resolution

    1920 x 1080

  • Refresh Rate

    60 Hz

  • Max Brightness

    1000 cd/sq. m

  • Screen

    Rotational LCD touchscreen

O3 Pro Video Transmission

Jump to...
  • Max Transmission Distance

    20,000' (approx. 6km, FCC-compliant)

  • Max Transmission Resolution & Frame Rate

    1920 x 1080 @60fps

  • Minimum End-to-End Latency

    100 ms or 68 ms

  • Wireless Frequency

    Non DFS frequency band:
    2.400-2.483 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz

    DFS Frequency Band:
    5.250-5.350 GHz
    5.470-5.600 GHz
    5.650-5.725 GHz

  • Transmitter Power (EIRP)

    2.400-2.4835 GHz: <=33 dBm (FCC); <=20 dBm (SRRC/CE/MIC)
    5.150-5.250 GHz: <23 dBm (FCC/SRRC/MIC)
    5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/MIC)
    5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC);<23 dBm (CE/MIC)
    5.725-5.850 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

  • Max Bandwidth

    40 MHz

  • Max Bitrate

    50 Mbps

Interface

Jump to...
  • Main Body

    3.5mm TRS Stereo Input Jack (supports mic, plug-in power mic, and line inputs)
    3.5mm Stereo Output Jack
    USB3.1 Type-C Data Port
    6-pin 1B DC-IN (DC 12-30 V)
    Battery Mount Power Port (female)
    4D Expansion Plate Data Port (female)
    High-Bright Main Monitor Port
    Hand Grips Port x 2
    Top Handle Port
    HDMI Type-A Video Output Port

  • X9 Gimbal

    LiDAR Range Finder/ Focus Motor Port x 2

  • TB50 Battery Mount

    Battery Mount Power Port (male)
    TB50 Battery Port

4D Video Transmitter

Jump to...
  • 4D Video Transmitter Port

    4D Expansion Plate Data Port (male)
    SMA Antenna Connector x 4
    USB 3.1 Type-C Data Port
    Battery Mount Power Port (female)
    Battery Mount Power Port (male)

  • Dimensions

    3.5 x 0.82 x 5.3" (89 x 21 x 137mm)

Remote Monitor

Jump to...
  • Screen Size

    7" (17.78cm) inches (diagonal)

  • Max Brightness

    1500 cd/sq. m

  • Screen Resolution

    1920 x 1200

  • Refresh Rate

    60 Hz

  • Max Battery Life

    Approx. 2 hours

  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Power System

    DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)

  • Remote Monitor Port

    3.5mm Stereo Jack
    microSD Card Slot
    HDMI Type-A Video Input Port
    Remote Monitor Expansion Plate High-Speed Port (female)
    Remote Monitor Accessory Expansion Port
    USB 3.1 Type-C Data Port

  • Remote Monitor Expansion Port

    Remote Monitor Expansion High-Speed Port (male)
    HDMI 1.4 Type-A Video Output Port
    6-pin 1B DC-IN (DC 6.8-17.6 V)
    3G-SDI (Level A) BNC Video Output Port

  • Dimensions

    8.5 x 2.2 x 6.5" (216 x 58 x 166mm) (includes monitor cage)

Battery

Jump to...
  • Battery

    TB50 Intelligent Battery

  • Capacity

    4280 mAh

  • Energy

    97.58 Wh

  • Voltage

    22.8 V

  • Max Charging Voltage

    26.1 V

  • Max Charging Power

    180 W

  • Charging Temperature Range

    41 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Charging Time

    Approx. 1.5 hours (with standard 86W power adapter)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x W x H)

    Main Body: 9.2 x 4.5 x 6.3" (2351560mm)
    Overall: 12 x 11.4 x 10.9" (309 x 290 x 277mm)

  • Weight

    Gimbal: 2.3 lbs (1.04kg) (Approx.)
    Main Body: 3.2 lbs (1.45kg)
    Overall: 10.3 lbs (4.67kg) (Approx.) (after installing all modules in the combo, excluding lens and storage card)

38 Accessories for DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

  • All Accessories (38)
  • Lenses (5)
  • Transmitters & Receivers (2)
  • Memory & Storage (4)
  • Range Finder (2)
  • Recording Monitor (3)
  • Lens Adapters (1)
  • Weights (1)
  • Monitor & Recorder (1)
  • Batteries & Power Supply (2)
  • Follow Focus & Lens Support (1)
  • Grips & Handles (1)
  • Card Readers (1)
  • Expansion Unit (1)
  • Adapters & Mounts (1)
  • Bags & Cases (1)
  • Microphones & Audio (3)
  • Digital Cinema Lenses (2)
  • Flash & Lighting (6)

About DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit - SKU#1949714

Experience the future of cinematography with the Ronin 4D 4-Axis Cinema Camera 6K Combo Kit. This high-quality, advanced camera system offers a unique, integrated design that combines imaging, stabilization, and focusing systems into one sophisticated unit. Crafted from durable carbon fiber and aluminum magnesium, this professional-grade camera is designed for quick setup and efficient shooting.

The Ronin 4D is powered by Zenmuse X9, DJI's flagship full-frame camera, and features the latest image processing system, CineCore 3.0. This innovative system utilizes DJI's proprietary chip to deliver high-performance computing power in a compact cinema camera, supporting internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video.

Capture stunning detail with minimal noise, thanks to the Zenmuse X9's dual native ISO (X9-6K: 800/5000). With 14+ stops of dynamic range, this camera delivers natural transitions of highlights and shadows in complex lighting conditions. The DJI Cinema Color System (DCCS) and robust computing power of CineCore 3.0 ensure authentic and accurate colors, giving your images a cinematic look.

The Ronin 4D features built-in 9-stop ND filters that can be quickly switched thanks to an internal motorized system. The camera's standard DL mount supports three compact full-frame prime lenses, and it also supports interchangeable lens mounts, including DJI's proprietary DL mount and third-party mounts like Leica M. This provides flexible lens options for every shooting scenario.

Experience unparalleled stabilization with the 4-Axis Stabilization System. The Ronin 4D adds a Z-Axis to the traditional 3-axis gimbal, effectively decreasing vertical camera shake and offering stabilization performance on par with a dolly. The integrated gimbal camera combines imaging and stabilization systems, delivering stable footage even with lenses that have a shifting center of gravity during use.

The Ronin 4D also features DJI's proprietary computer vision and deep learning technology, ActiveTrack Pro, which enables cinema-standard tracking shots. The innovative LiDAR Focusing System makes manual focusing easier than ever, allowing for quick focus adjustments with extreme precision.

The Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, offering a 20,000-foot transmission range. This camera system also uses TB50 Intelligent Batteries, offering up to 2.5 hours of shooting time and auto-heating for reliable functionality in cold conditions.

In summary, the Ronin 4D 4-Axis Cinema Camera 6K Combo Kit is a sophisticated, professional-grade camera system designed for high-quality video capture. Its advanced features and innovative technology make it a versatile choice for professional photographers and videographers in the film and television industry.

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit - SKU#1949714 Features

  • Unique Design: DJI Ronin 4D merges imaging, stabilization, and transmission in one durable carbon fiber and aluminum body
  • Zenmuse X9: A flagship camera with the powerful CineCore 3.0 system, supporting formats like Apple ProRes RAW
  • Low-light Excellence: Dual native ISO (X9-6K: 800/5000) ensures clear shots in dim settings
  • Dynamic Range: Zenmuse X9 boasts 14+ stops, perfect for varied lighting
  • DJI Cinema Color: Achieves cinema-quality, true colors and supports ACES workflow
  • Quick ND Filters: Switch easily among 9-stop built-in ND filters integrated with Ronin 4D color
  • Lens Flexibility: Lightweight DL mount lenses compatible with various mounts like Leica M
  • Wireless Control: Offers manual and autofocus wirelessly
  • 4-Axis Stabilization: Advanced stabilization with a Z-Axis and integrated sensors
  • ActiveTrack Pro: Cinema-grade tracking using advanced DJI technology
  • LiDAR Focus: Fast and intuitive manual focusing
  • Automated Manual Focus (AMF): Merges precision of manual focus with autofocus ease
  • Powerful Wireless: Uses DJI O3 Pro tech for a 20,000-foot range and minimal latency
  • Optimal Battery: TB50 Intelligent Batteries ensure 2.5 hours of shooting and quick recharge

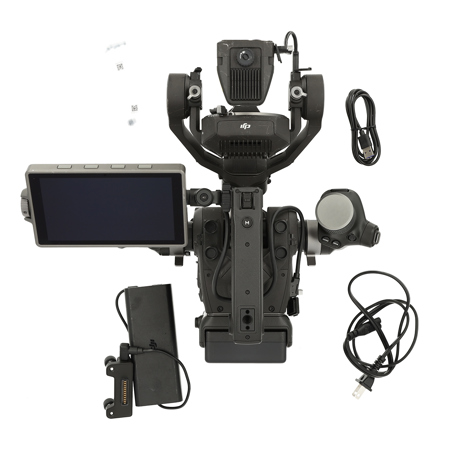

What's in the box:

  • DJI Zenmuse X9-6K
  • Main Body
  • LiDAR Range Finder
  • DL Mount
  • Left/Right Hand Grips
  • Top Handle
  • Monitor
  • TB50 Battery Mount
  • Power Adapter
  • Charging Adapter
  • AC Power Cable
  • Base Plate
  • Battery
  • LiDAR Range Finder/Focus Motor Cable
  • Carrying Case
  • DL Mount Body Cap
  • USB Cable
  • Item Note: Missing 3x Hex Keys; DX Mount Body Cap; Left/Right Hand Grip Strap; Gimbal Base Cap; X9 Gimbal Base Cap; DX Mount Body Cap; DX Mount Lens Cap; 9x Counterwights
