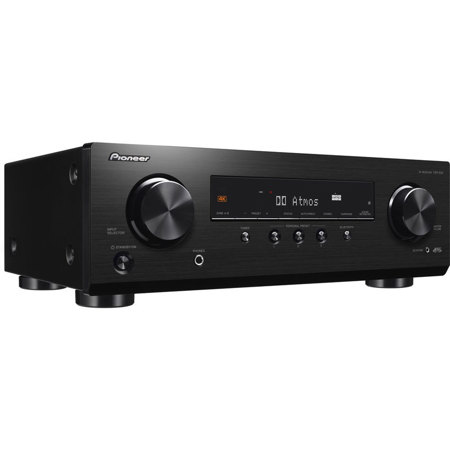

Used Pioneer Home Audio VSX-534 5.2-Channel A/V Receiver, 80W Per Channel at 8 Ohms

SKU: US1950011 MFR: VSX534
$179.00
New: $279.00
Used Savings: $100 (36%)
Earn VIP Reward Points

What`s in the box:

  • Pioneer VSX-534 5.2-Channel A/V Receiver
  • RC-971R Remote Controller
  • 2x AAA/R03 Batteries
  • Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Quick Start Guide
  • original box

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$9.99

2 Year

$15.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-08-27T09:37:21

Rated 5 out of 5

Improved Upgrade.

I replaced a Sony 5.1 surround amplifier, with this Pioneer 5.1 amp. the sound is much improved over the Sony. Much easier to install and set up, and the theater sound is remarkable. I have not installed the Dolby Atmos Firmware yet, and eager to get that done, to enjoy Dolby Atmos.

JOEL H.

2021-08-17T08:17:19

Rated 5 out of 5

Another Pioneer product to be happy with

I bought this to replace an older Pioneer home theater system that didn't survive a lightning storm. It has the options I wanted without going overboard so the price was in the area I was willing to spend. Full surround, hdmi inputs/output, easy to set up. Love the display over the video image and on-screen controls.

Douglas H.

2021-07-28T05:51:59

Rated 5 out of 5

Great AV Receiver for your home theater

This receiver was the best match for my speakers. I tried other AV receivers but were not apt. This has clear voice and the pitch thats needed.

PARAMPREET S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pioneer Home Audio VSX-534 Specifications

Power
  • Amplifier Design

    Direct Energy

  • Channels

    5.2

  • Power Output: Watts per Channel

    80 W/ch (20Hz-20kHz,.08%THDat 8ohm 2ch Driven)
    150 W/ch (1kHz,10%THDat 6ohm 1ch Driven)

  • Power Consumption/Network Standby off

    445 W/0.1 W

Handheld and Internet

Jump to...
  • Streaming Audio From PC/Network

    Yes

  • Internet Radio

    Yes

Decoders & Formats

Jump to...
  • Digital Core DSP Engine

    Digital Quad-Core 32-bit DSP (Cirrus Logic)

  • Audio DACs

    384 kHz/32-bit D/A Conversion with AK4438 (AKM)

  • Music File Playback

    192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB

  • High-Definition Copy Protection (HDCP)

    2.2

  • Dolby Atmos

    Yes

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • DTS:X

    Yes

  • DTS-HD Master Audio

    Yes

  • DTS Neural:X

    Yes

  • HDMI SACD Transfer

    2 Channel

Soundfield Calibration

Jump to...
  • Phase Control

    Yes

  • MCACC

    Yes

  • MCACC Memory

    1

  • EQ Bands

    9-Band

  • Symmetric EQ

    Yes

  • Distance Adjustment

    0.1' (0.03m)

  • Auto Subwoofer Crossover

    Yes

Listening Modes

Jump to...
  • Auto Surround

    Yes

  • Stream Direct

    Yes (Direct, Pure Direct)

  • Advanced Surround

    10+1

  • Front Stage Surround Advance

    Yes

Audio Functions

Jump to...
  • Dialog Enhancement

    Yes

  • Advanced Sound Retriever

    Yes

  • Tone Control

    Multi

  • Sound Delay (Lip Sync)

    Yes

  • Bi-Amp

    Yes

Video Processing

Jump to...
  • 4K Ultra HD Pass-Through

    Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)

  • 4K Ultra HD Video Scaler

    Ultra HD Upscaling

  • 3-D Ready

    Yes

  • Audio Return Channel

    Yes

  • HDMI Standby Through

    Yes with Input Switch / Last Memory

  • HDMI 36-bit Deep Color

    Yes

  • HDMI x.v. Color

    Yes

  • Video Converter to HDMI

    Yes

  • Super Resolution

    Yes

Connectivity

Jump to...
  • HDMI Input / Output

    4 In (Rear) / 1 Out

  • Bluetooth Built-In

    Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)

  • USB Terminal

    Front and Rear

  • Analog Audio Inputs / Output

    2 in / 0 out

  • Digital Audio Inputs / Output

    2 In (Optical 1, Coaxial 1)

  • Pre-Amp Output

    0.2 ch.

  • Headphone Output

    Yes

  • Front A/V Inputs

    USB / 3.5mm stereo mini jack

  • AM/FM Presets

    AM/FM Tuner 40 Presets

Installation

Jump to...
  • On-Screen Display

    User-Friendly GUI with System Setup Menu

  • Auto Power Down

    Yes

  • FL Dimmer

    Yes

  • Remote

    Yes

  • Sleep Timer

    Yes

  • Versatile Speaker Configuration

    Front, Center, Surround/Height

Construction

Jump to...
  • Front Panel

    Brushed

  • Speaker Terminals

    2 large + 3 clip

General

Jump to...
  • Dimensions (WxHxD)

    17.13 x 5.81 x 12.62" (435.10 x 147.57 x 320.55mm)

  • Weight

    17.6 lbs (7.98kg)

About Pioneer Home Audio VSX-534 5.2-Channel A/V Receiver - SKU#1950011

FEATURED REVIEWS

Improved Upgrade.

By JOEL H.

I replaced a Sony 5.1 surround amplifier, with this Pioneer 5.1 amp. the sound is much improved over the Sony. Much easier to install and set up, and the theater sound is remarkable. I have not installed the Dolby Atmos Firmware yet, and eager to get that done, to enjoy Dolby Atmos.

Another Pioneer product to be happy with

By Douglas H.

I bought this to replace an older Pioneer home theater system that didn't survive a lightning storm. It has the options I wanted without going overboard so the price was in the area I was willing to spend. Full surround, hdmi inputs/output, easy to set up. Love the display over the video image and on-screen controls.

The VSX-534 comes in a user-friendly new design, with 12 % slimmer size than the previous model for easy installation, 4K indicator and Personal Preset and Bluetooth Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos and DTS:X audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG and Dolby Vision with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.

• Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
• DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
• Supports pass-through for 4K HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision signals
• 150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
• 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
• 12% slimmer size than the previous model

Dolby Atmos/Dolby Surround Upmixing
The VSX-534 is compatible with 3.1.2ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.

Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

DTS Virtual:X
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.

Next Generation Video Standard Ready
The VSX-534 supports pass-through for HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020) and HDCP 2.2, so you will have no problem when upgrading to new devices and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer's MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance and equalizes response.

Zone B Output for Wireless Headphones
The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.

Built-in Bluetooth Wireless Technology
Stream songs from compatible devices with the built-in Bluetooth Wireless Technology (ver. 4.2 + LE). The VSX-534 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. By pressing the Bluetooth button on the front panel, you can directly start up the BT function, even when the unit is in standby.

Personal Preset
Just press the Personal Preset button on the front panel for three seconds and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.

Dialog Enhancement
With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogs in films, with the up/down key on the remote control.

On-Screen Information for Audio/Video Status
The screen display now shows detailed input and output information for the playing content. So you can see whether your video is being output by Dolby Vision or if the movie is processing Dolby Atmos or DTS:X sound.

Warranty Information

This used item has a FREE 1-year warranty. See details.

What's in the box:

  • Pioneer VSX-534 5.2-Channel A/V Receiver
  • RC-971R Remote Controller
  • 2x AAA/R03 Batteries
  • Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Quick Start Guide
  • original box
