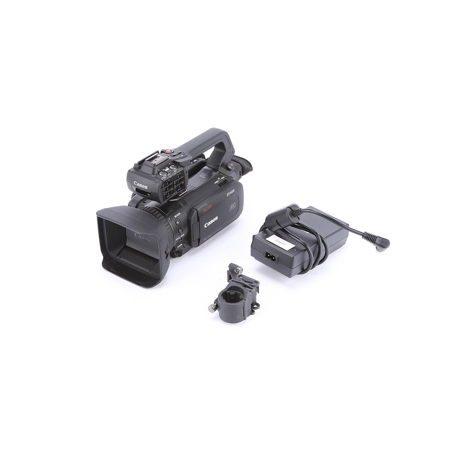

Used Canon XF-405 4K UHD High Definition Professional Camcorder with HDMI 2.0 & 3G-SDI Output , 15x Optical Zoom, Up to 60fps

The XF405 Professional Camcorder offers an outstanding combination of 4K UHD image quality, features and functionality in a compact portable design ideally suited for on-the-go Electronic News Gathering (ENG) and documentary production.

Featuring a 1.0-inch 4K UHD CMOS image sensor and dual DIGIC DV 6 Image Processors, the XF405 records in MP4 format to dual SD card slots. The camcorder is capable of recording 4K UHD video at 60p, as well as slow motion recording up to 120fps in Full HD. A 15x optical zoom lens maintains 4K UHD quality throughout the entire zoom range, while the camcorder’s Dual Pixel CMOS AF helps facilitate fast and accurate autofocus.

The camcorder includes an HDMI 2.0 terminal with 4K UHD output support, two XLR terminals with independent audio level control and a 3G-SDI output that supports camcorder integration into professional workflows. An adjustable 3.5-inch touch panel LCD monitor and a built-in 0.24-inch electronic viewfinder enhance usability, and the detachable handle helps the XF405 to operate in a variety of shooting situations. Designed to meet the needs of professionals, the XF405 offers a wide range of recording possibilities.

The optional Wide Attachment WA-U58 and the Tele Converter TL-U58 accessories expand the creative capabilities of the XF405 camcorder.

The Wide Attachment WA-U58 offers a 0.8x wider angle of view that enables users to capture more of a scene, especially when indoors or in tight spaces, to lend better perspective to your video narrative. The Tele Converter TL-U58 provides extended 1.5x longer telephoto range for the XF405 camcorder’s fixed lens, allowing distant subjects to be captured with brilliant clarity.

The XF405 Professional Camcorder incorporates Canon’s dual DIGIC DV 6 Image Processors, which are integral in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition, image stabilization, slow and fast motion recording and precise Dual Pixel CMOS AF.

The XF405 Professional Camcorder features Dual Pixel CMOS AF, Canon’s exclusively developed high-speed, high-precision autofocus technology. Dual Pixel CMOS AF assists not only with standard shooting, but also with 4K UHD 60p, Full HD 120p and other high-frame rate applications that require crisp frame-by-frame accuracy.

Each pixel in the camcorder’s CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished with much higher speed and accuracy than was possible with previous technologies.

The Face Detection AF feature has two modes – Face Priority AF and Face Only AF – that offer users precise flexibility in how they choose their autofocus for a subject or scene.

Utilizing information from Dual Pixel CMOS AF, Dual Pixel Focus Guide helps achieve precise focus by displaying focus assist information on the screen. It employs a truly innovative user interface that enables the user to see if they are focused in front of or behind the subject through visual observation, and allows quick and accurate manual focus to be achieved. This helps simplify the focusing process when shooting in 4K UHD, which requires strict focus accuracy.

Simultaneous or relay recording in MP4 format to the XF405 camcorder’s dual SD card slots is possible.

Simultaneous recording allows you to record on both SD cards at the same time, so that you can use one as a backup.

Relay recording allows uninterrupted recording from one card to the other when the first memory card becomes full.

The XF405 Professional Camcorder features a 3.5-inch Touch Panel LCD and a newly designed 0.24-inch Electronic Viewfinder (EVF). The Touch Panel LCD and EVF both display approximately 1.56 million dots and provide visual recognition of desired features along with a full array of menu options for controlling camcorder settings. The Touch Panel LCD works with Canon’s exclusive AF technologies for easy monitoring and one-finger tap-focusing during shooting and the EVF offers 60° of tilt for more comfortable operation in a variety of positions.

The XF405 Professional Camcorder features an HDMI 2.0 terminal that supports 4K UHD 60p output. The HDMI 2.0 terminal allows the camcorder to be connected to a standard external SSD/HDD recorder, enabling conversion to ProRes and DNx formats for efficient editing and storage.

** Internal recording not enabled.

*** Restrictions apply only when shooting in 4K UHD 60P. OSD overlay disabled / Browser remote Live View disabled.

The XF405 Professional Camcorder features a 3G-SDI output terminal that supports camcorder integration into professional workflows, making it particularly useful for on-the-go Electronic
News Gathering (ENG) applications.

** Internal recording not enabled.

The XF405 Professional Camcorder offers a variety of ways to record audio: through two XLR terminals, an internal stereo mini-jack mic terminal or from the camcorder’s internal stereo mic.

In addition to AAC 2ch audio, the XF405 offers support for high-quality linear PCM 4ch audio. The on-board 4ch audio independent settings let users set recording levels, input sensitivity and limiters for each channel.

Two professional XLR microphone connectors are provided on the handle unit of the XF405 camcorder. They can be controlled independently to help ensure the proper audio levels are being captured correctly.

RC-V100 Remote Controller Support

The XF405 Professional Camcorder is compatible with Canon's optional RC-V100 Remote Controller, enabling image quality adjustments and other important operations to be set from a distance. The RC-V100 plugs into the XF405 through the remote terminal on the rear panel.

The XF405 Professional Camcorder is compact and lightweight, making it especially useful for on-the-go Electronic News Gathering (ENG) and documentary production applications.

The detachable handle unit can be quickly and easily attached to the camcorder body without tools. The handle includes a zoom lever, a start/stop record button and two XLR terminals to support professional audio. The handle is also capable of mounting a mic holder and features a cold shoe that can be used to mount a variety of other optional peripherals.

The XF405 Professional Camcorder offers both wired and wireless connectivity to enable recorded files to be shared and transmitted back to the station or home base via FTP for editing or live streaming.

The camcorder can also be accessed remotely from a normal web browser running on a laptop or a compatible smart device to control functions such as record start/stop, AF/MF switching, focus/zoom settings and white balance mode^^. Background transfer of MP4 format video files via FTP links is also possible, enabling the latest news images, for example, to be distributed quickly over the Internet.

^^ Compatible with iOS® versions 9/10, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0.

• 1.0-inch 4K UHD CMOS Image Sensor
• 15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization
• Dual DIGIC DV 6 Image Processors
• Dual Pixel CMOS AF
• 4K UHD and Full HD Recording to Dual SD Card Slots
• Slow and Fast Motion Recording up to 120fps
• 3.5-inch Touch Panel LCD and 0.24-inch Electronic Viewfinder
• HDMI 2.0 Terminal with 4K UHD 60p Output Support
• 3G-SDI Terminal
• Flexible Audio Inputs with Linear PCM 4-channel Support
• RC-V100 Remote Controller Support
• Compact and Lightweight Design with Detachable Handle
• Network Connections for FTP Transfer and Browser Remote (Wired and Wi-Fi® Connectivity)
• Firmware Update: XF-AVC 4K UHD 60p Long GOP Recording Support
